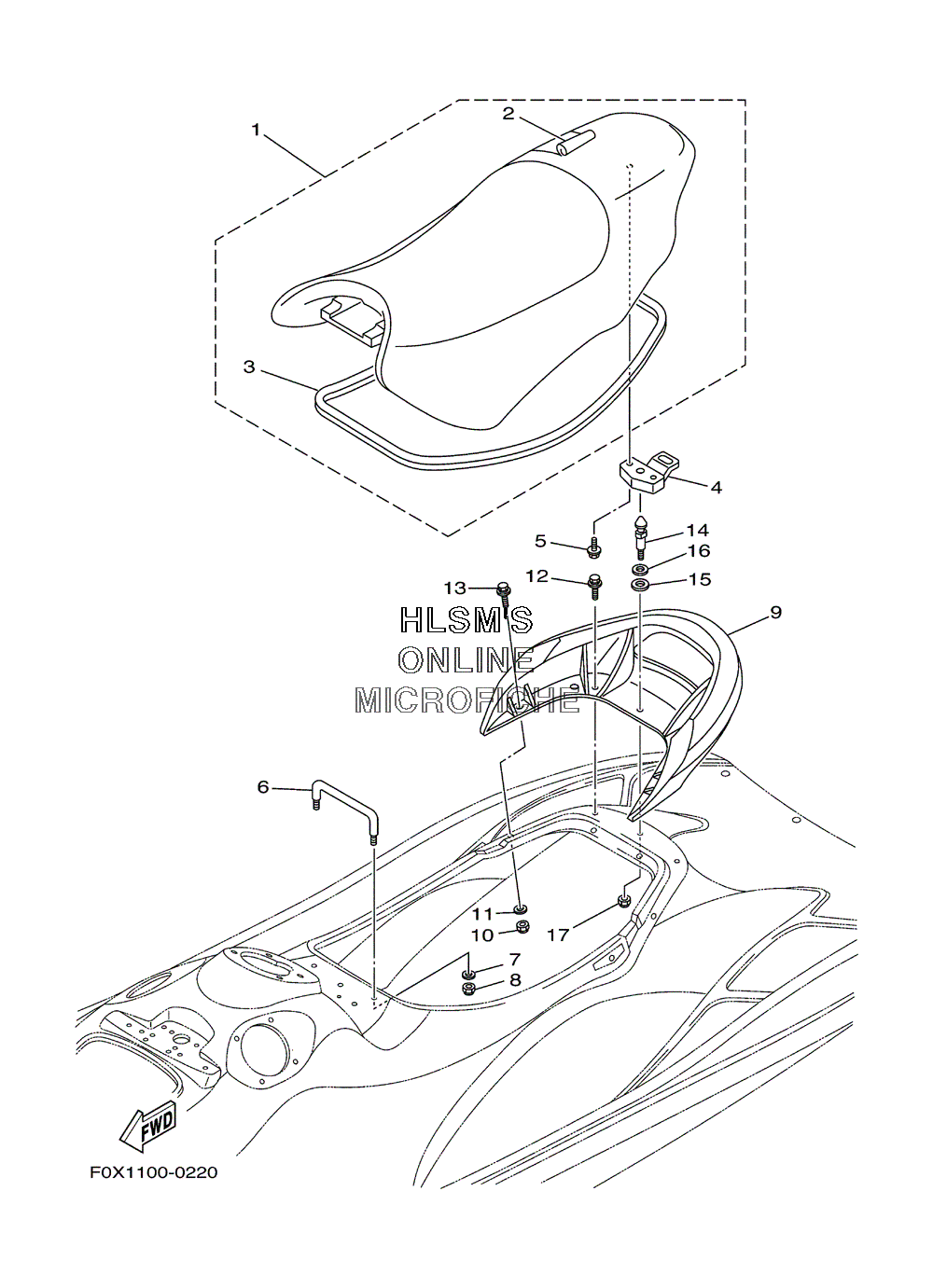

SEAT для Yamaha GP800R WAVERUNNER 2-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
1F1G-U371A-10-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F1G-U371B-10-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F0X-U2664-00-00 ...PACKING...PACKING
-
4F0D-63850-01-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
590119-06853-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6F0X-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
89572R-08300-00 NUT, FLANGENUT, FLANGE
-
9F0X-U271B-00-00 GRIP, HAND (BLACK (BL))GRIP, HAND (BLACK (BL))
-
109572R-08300-00 NUT, FLANGENUT, FLANGE
-
119299R-08600-00 WASHERWASHER
-
1290119-089U5-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08807-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14F0X-U3774-00-00 PINPIN
-
15F0X-6375E-00-00 PACKING 1PACKING 1
-
1692990-12200-00 WASHER, PLAINWASHER, PLAIN
-
179572R-10300-00 NUT, FLANGENUT, FLANGE
