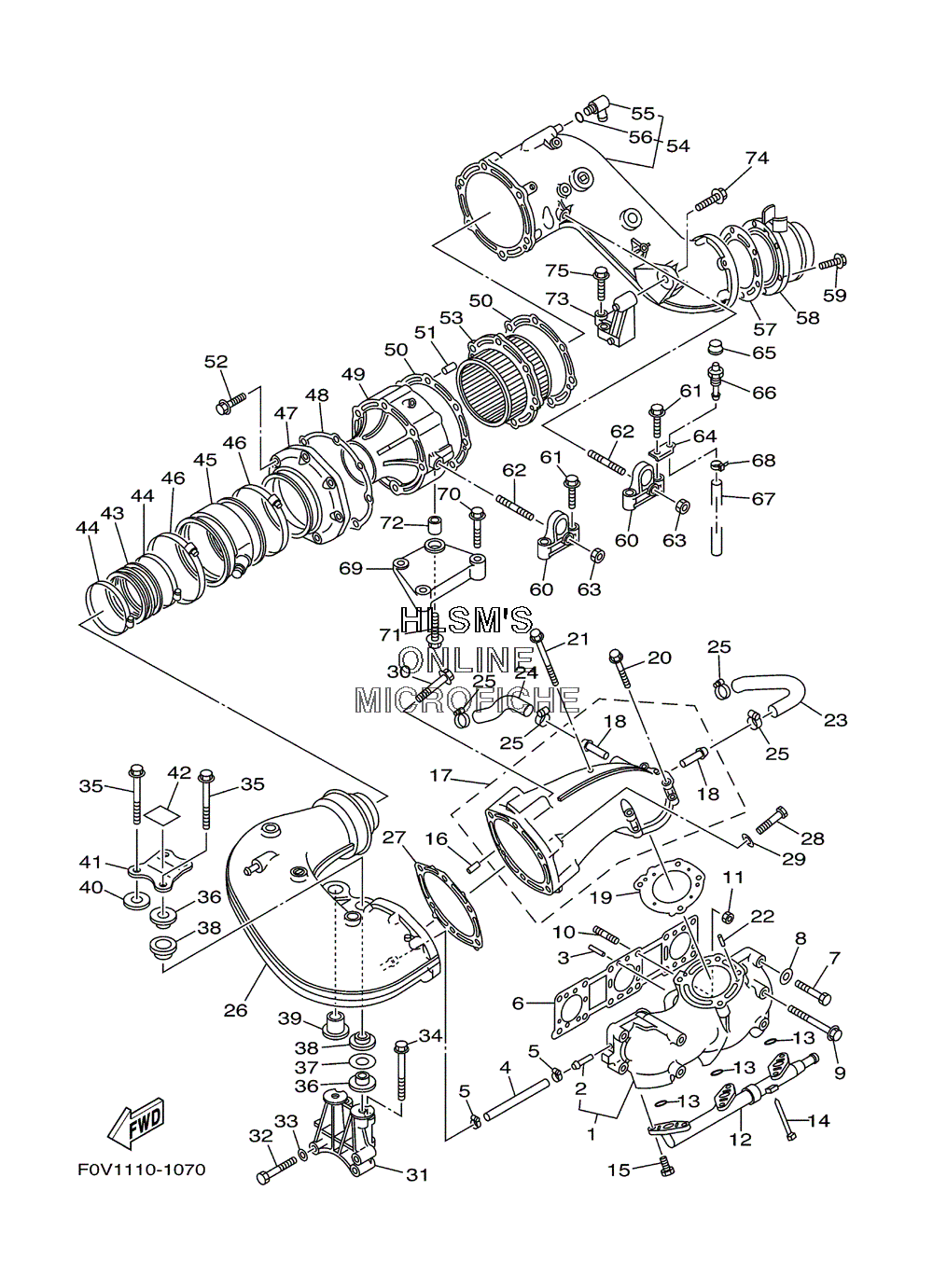

EXHAUST SYSTEM для Yamaha XLT1200 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
166V-14711-00-8P MUFFLER 1MUFFLER 1
-
265U-14251-00-00 ...NIPPLE...NIPPLE
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
490445-12M10-00 HOSE (L125)HOSE (L125)
-
590460-11M17-00 CLAMP, HOSECLAMP, HOSE
-
666V-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
797013-10055-00 BOLTBOLT
-
892903-10600-00 WASHER, PLATEWASHER, PLATE
-
990119-10M11-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090116-10M68-00 BOLT, STUDBOLT, STUD
-
1190179-10M36-00 NUTNUT
-
1266V-24377-00-00 PIPE, JOINT 3PIPE, JOINT 3
-
1393210-17MA4-00 O-RINGO-RING
-
1490465-13M36-00 CLAMPCLAMP
-
1590109-06M99-00 BOLTBOLT
-
1693606-12019-00 PIN, DOWELPIN, DOWEL
-
1766V-14712-00-8P RING, JOINTRING, JOINT
-
1866E-51129-00-00 ...NIPPLE...NIPPLE
-
1966V-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
2090119-10M20-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190119-10M19-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2293606-12019-00 PIN, DOWELPIN, DOWEL
-
2366V-12576-00-00 HOSE 1HOSE 1
-
2466V-12577-00-00 HOSE 2HOSE 2
-
2590450-22M14-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2666V-14721-01-8P MUFFLER 2MUFFLER 2
-
2766V-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
2897013-10065-00 BOLTBOLT
-
2992903-10600-00 WASHER, PLATEWASHER, PLATE
-
3097513-10585-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3166V-14771-01-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
3297013-10060-00 BOLTBOLT
-
3392903-10600-00 WASHER, PLATEWASHER, PLATE
-
3497513-10590-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590119-10M23-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690387-12M05-00 COLLARCOLLAR
-
3790201-28008-00 WASHER, PLATEWASHER, PLATE
-
3890480-30M78-00 GROMMETGROMMET
-
3966V-14779-00-00 COLLARCOLLAR
-
4066V-1477L-00-00 PLATE 2PLATE 2
-
4166V-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
4266V-14488-00-00 LABEL, CAUTIONLABEL, CAUTION
-
4366V-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
4490460-90M19-00 CLAMP, HOSECLAMP, HOSE
-
4566V-14615-02-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
4690460-99M20-00 CLAMP, HOSECLAMP, HOSE
-
4768N-41113-00-8P OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4866V-41114-00-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
4968N-41111-00-94 INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
5066V-41124-00-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
5193606-14081-00 PIN, DOWELPIN, DOWEL
-
5290119-08M63-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5366V-14740-01-00 CATALYST ASSY.CATALYST ASSY.
-
5468N-41123-00-8P OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
5567X-12481-00-00 ...PIPE 1...PIPE 1
-
5693210-17001-00 ...O-RING...O-RING
-
5768N-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
5868N-14784-00-94 PIPE, TAILPIPE, TAIL
-
5990105-08M22-00 BOLT, FLANGEBOLT, FLANGE
-
6066E-14771-01-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
6190119-10M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6290116-10M66-00 BOLT, STUDBOLT, STUD
-
6390179-10M35-00 NUTNUT
-
6466V-1477K-00-00 PLATE 1PLATE 1
-
65663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
6661L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
6790445-09M33-00 HOSE (L580)HOSE (L580)
-
6890465-11M10-00 CLAMPCLAMP
-
6966V-14782-00-94 STAY 5STAY 5
-
7090105-10M87-00 BOLT, FLANGEBOLT, FLANGE
-
7197513-10545-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7299590-14016-00 PIN, DOWELPIN, DOWEL
-
7368N-14791-00-8P STAY, MUFFLERSTAY, MUFFLER
-
7490119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7590119-10M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
