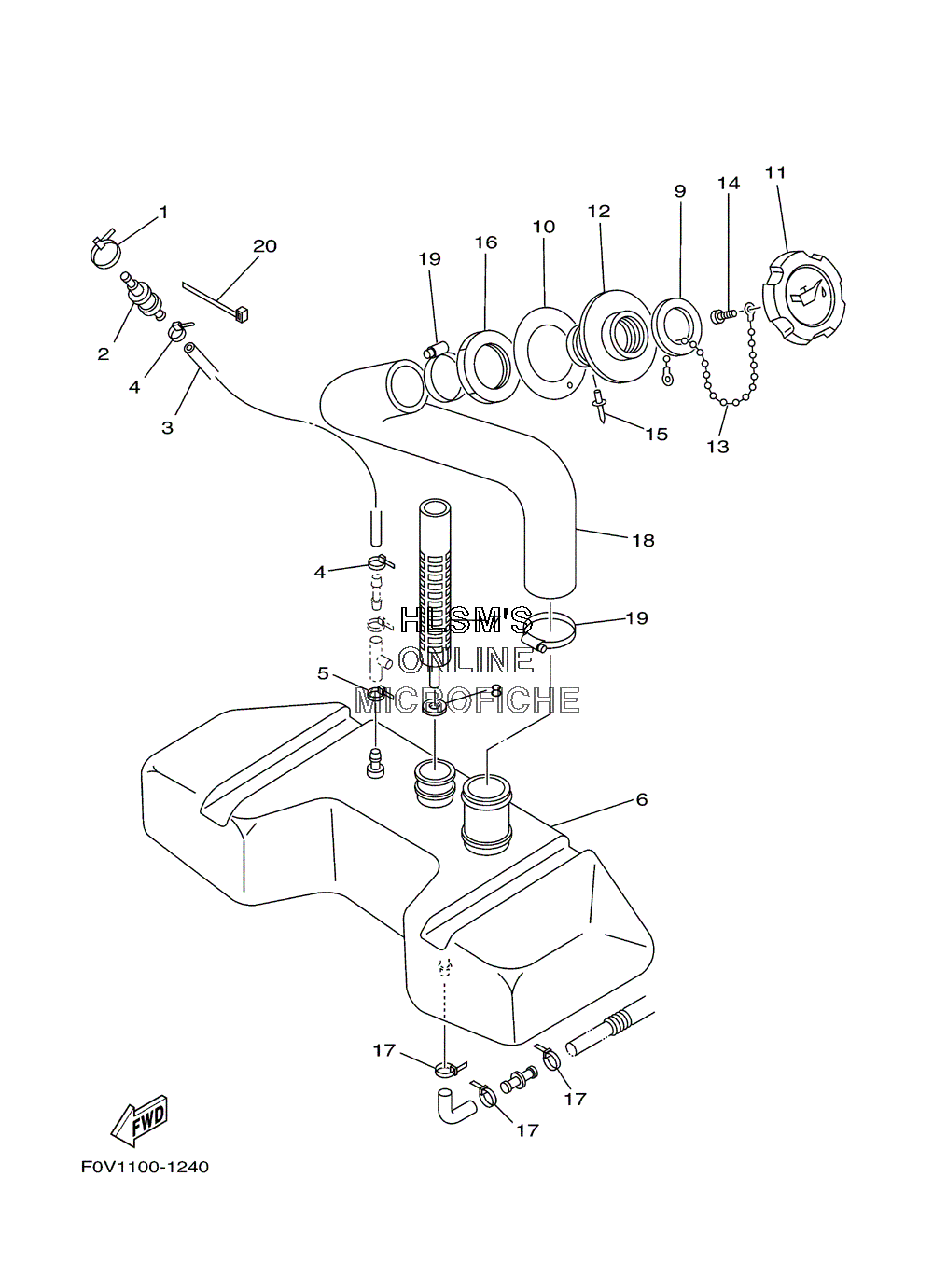

OIL TANK для Yamaha XLT1200 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
190464-32801-00 CLAMPCLAMP
-
2FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
3GJ3-U7856-20-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
490465-11829-00 CLAMPCLAMP
-
590465-11829-00 CLAMPCLAMP
-
6F0D-U775B-02-00 TANK, OILTANK, OIL
-
7F0D-6775C-01-00 FILTERFILTER
-
8F0D-6775E-01-00 PACKINGPACKING
-
9GJ3-U778C-00-00 PACKING, OIL CAPPACKING, OIL CAP
-
10F0X-U778E-00-00 PACKING, OIL FILLERPACKING, OIL FILLER
-
11GJ3-U778B-00-00 CAP, OIL FILLERCAP, OIL FILLER
-
12F0X-U778D-00-00 SOCKET, OIL FILLERSOCKET, OIL FILLER
-
13EU0-U7835-00-00 CHAIN BALLCHAIN BALL
-
1497780-04110-00 SCREW, TAPPINGSCREW, TAPPING
-
1590267-40935-00 RIVET, BLINDRIVET, BLIND
-
16F0X-U778H-00-00 NUT, OIL FILLERNUT, OIL FILLER
-
1790465-11829-00 CLAMPCLAMP
-
18F0D-U776C-10-00 HOSE, OIL FILLERHOSE, OIL FILLER
-
1990601-142U6-00 BAND, HOSE 42BAND, HOSE 42
-
2090464-32801-00 CLAMPCLAMP
