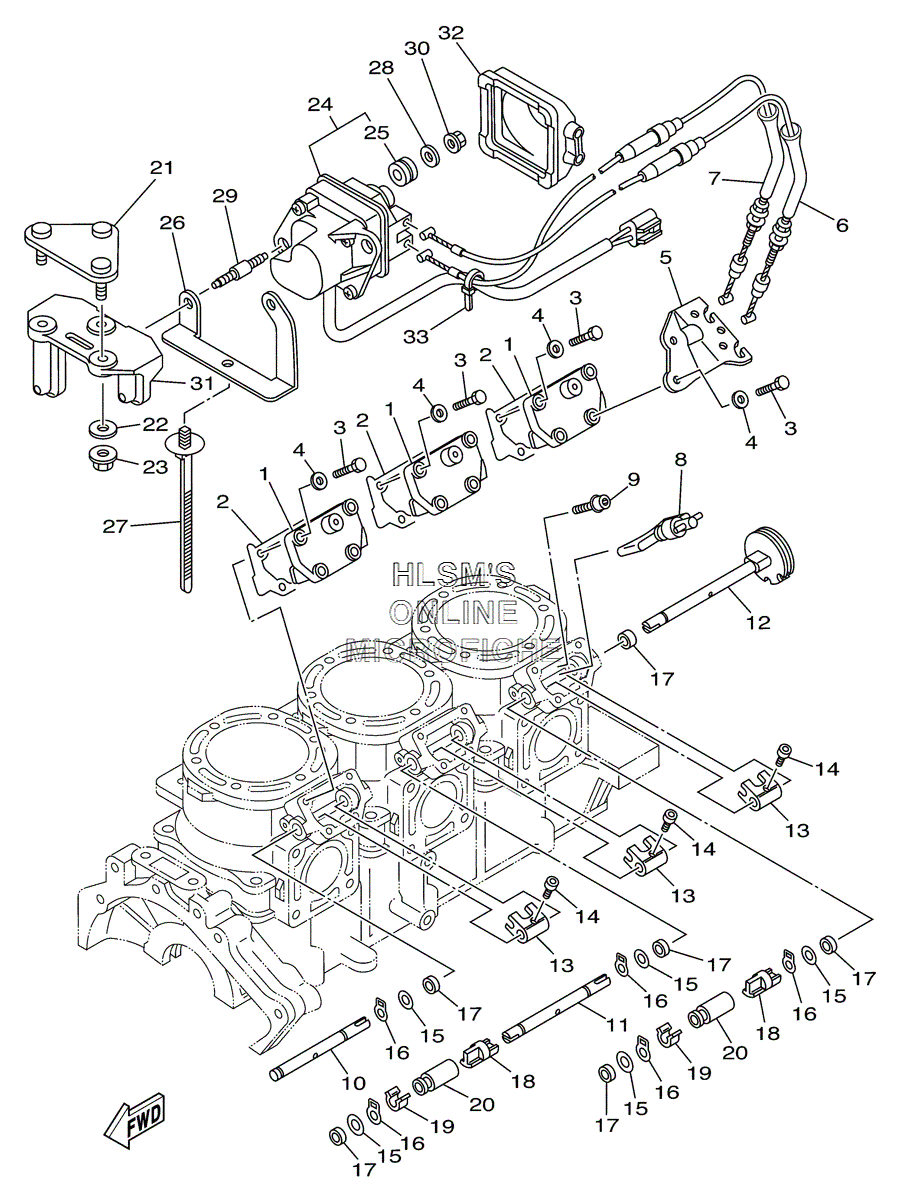

POWER VALVE SYSTEM для Yamaha GP1300R 2-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
166E-1131M-01-94 COVERCOVER
-
266E-1131B-01-00 GASKET, COVERGASKET, COVER
-
397013-06025-00 BOLTBOLT
-
492903-06600-00 WASHER, PLATEWASHER, PLATE
-
566E-11998-10-00 BRACKET 1BRACKET 1
-
666E-1133E-10-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
766E-1133F-10-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
860T-1131S-00-00 VALVE ASSY.VALVE ASSY.
-
990110-05008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1066E-1131V-00-00 SHAFT 1SHAFT 1
-
1166V-11333-00-00 SHAFT 3SHAFT 3
-
1266E-1132C-00-00 PULLEY, SHAFTPULLEY, SHAFT
-
1360T-11832-00-00 LEVER, LINKLEVER, LINK
-
1490110-04M03-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1590201-08M09-00 WASHER, PLATEWASHER, PLATE
-
1693410-08M12-00 CIRCLIPCIRCLIP
-
1793109-08M07-00 OIL SEALOIL SEAL
-
1866E-1131H-00-00 JOINT 1JOINT 1
-
1966E-1131J-10-00 JOINT 2JOINT 2
-
2066E-1131C-10-00 COVER, JOINTCOVER, JOINT
-
21GU0-6824E-00-00 BRACKET, YPVSBRACKET, YPVS
-
229299R-08200-00 WASHERWASHER
-
239572R-08300-00 NUT, FLANGENUT, FLANGE
-
2460T-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
2590480-14023-00 ...GROMMET...GROMMET
-
2660T-67254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
2790464-31001-00 CLAMPCLAMP
-
2890201-065F3-00 WASHER, PLATEWASHER, PLATE
-
2990116-06M67-00 BOLT, STUDBOLT, STUD
-
309572R-06300-00 NUT, NYLONNUT, NYLON
-
3166E-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3266E-85825-00-00 COVER, WIRECOVER, WIRE
-
3390465-11M10-00 CLAMPCLAMP
