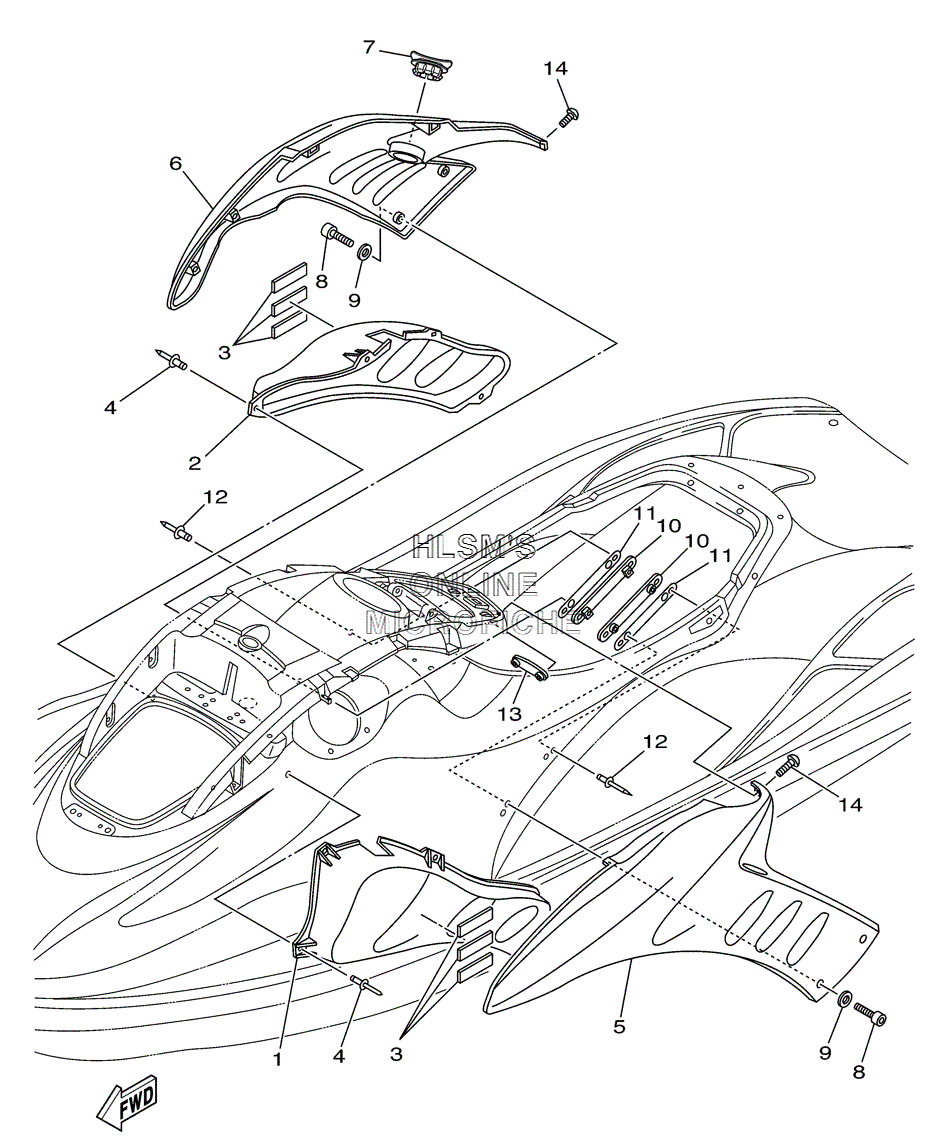

SIDE COVERS для Yamaha GP1300R 2-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
1F0X-62187-00-00 BOX, INDUCTION 1BOX, INDUCTION 1
-
2F0X-62188-00-00 BOX, INDUCTION 2BOX, INDUCTION 2
-
3F0X-6351C-00-00 MAT, SIDE 1MAT, SIDE 1
-
490267-48806-00 RIVET, BLINDRIVET, BLIND
-
5F0X-U377B-10-P1 COVER, SIDE 1 (DPBMP - BLUE METALLIC)COVER, SIDE 1 (DPBMP - BLUE METALLIC)
-
6F0X-U377C-10-P1 COVER, SIDE 2 (DPBMP - BLUE METALLIC)COVER, SIDE 2 (DPBMP - BLUE METALLIC)
-
7F1G-U2723-02-00 SEALSEAL
-
890110-06008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
99299R-06200-00 WASHERWASHER
-
10F0X-6377M-00-00 BRKT., COVER SIDE 1BRKT., COVER SIDE 1
-
11F0X-U3635-01-00 TAPE, FITTINGTAPE, FITTING
-
1290267-48806-00 RIVET, BLINDRIVET, BLIND
-
13F0X-6377P-00-00 BRKT., COVER SIDE 3BRKT., COVER SIDE 3
-
1490111-05001-00 BOLTBOLT
