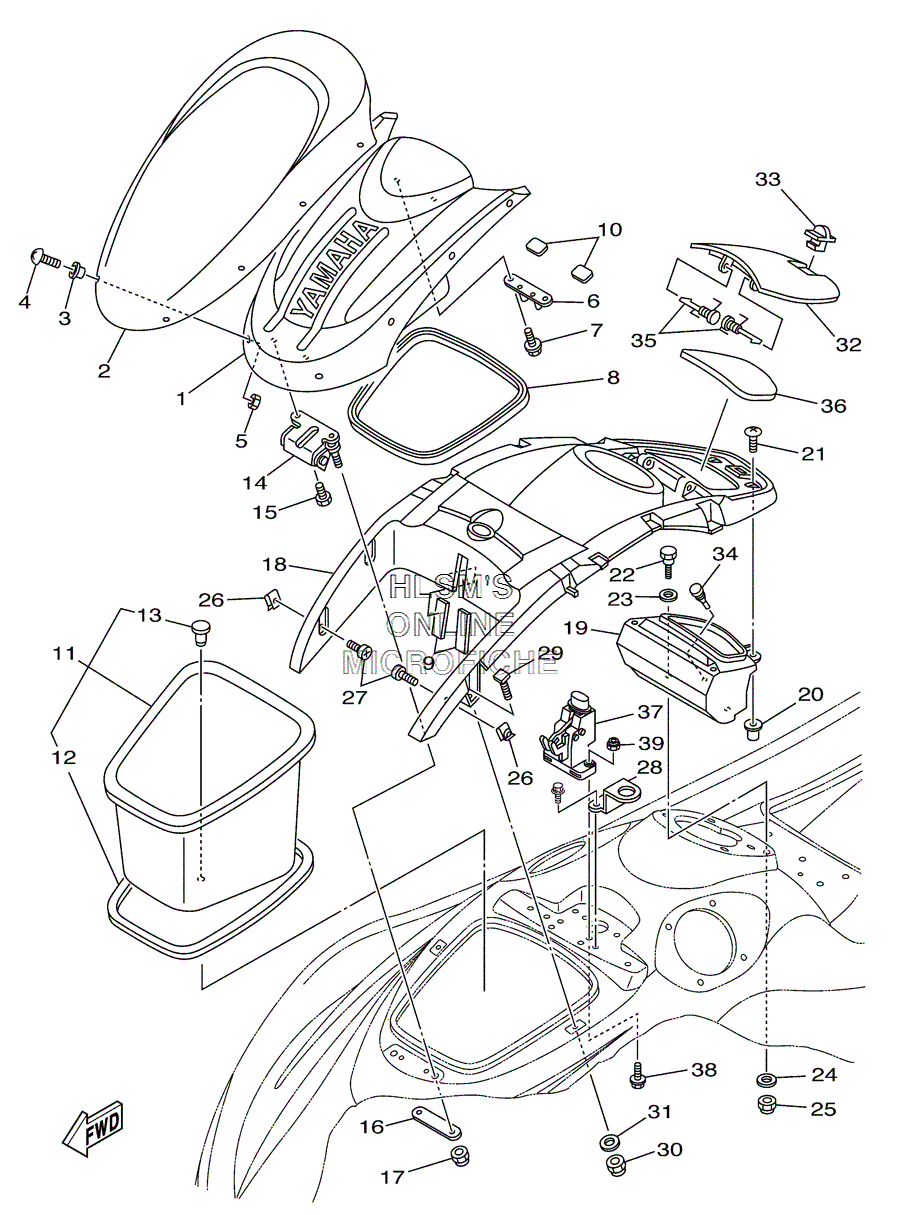

FRONT STORAGE W/ COVER для Yamaha GP800A WAVERUNNER 2-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
1F0X-U517B-00-00 LID, ENGINE ROOMLID, ENGINE ROOM
-
2F0X-U515N-00-00 VISORVISOR
-
390381-05041-00 BUSH, SOLIDBUSH, SOLID
-
490111-05001-00 BOLTBOLT
-
590179-05800-00 NUTNUT
-
6F0X-6517F-01-00 HOOK, LID LOCKHOOK, LID LOCK
-
790119-069UJ-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F0X-U266B-00-00 PACKING 3PACKING 3
-
9F0X-U515D-00-00 DAMPER 1DAMPER 1
-
10F0X-U515E-00-00 DAMPER 2DAMPER 2
-
11F0X-U475A-00-00 BOW LOCKER ASSYBOW LOCKER ASSY
-
12F0X-U266E-01-00 ...PACKING, 6...PACKING, 6
-
1390605-502U1-00 ...PLUG, BLIND...PLUG, BLIND
-
14F0X-6517D-00-00 HINGE, LIDHINGE, LID
-
1590101-06026-00 BOLTBOLT
-
16F0X-6518E-00-00 PRATE, HINGE LIDPRATE, HINGE LID
-
179572R-08300-00 NUT, FLANGENUT, FLANGE
-
18F0X-U5554-00-00 COVER, CENTERCOVER, CENTER
-
19F0X-U516P-00-00 BOX GLOVEBOX GLOVE
-
2090179-05801-00 NUTNUT
-
2190111-05001-00 BOLTBOLT
-
2290109-08902-00 BOLTBOLT
-
2390202-10922-00 WASHER, PLATEWASHER, PLATE
-
249299R-08200-00 WASHERWASHER
-
259572R-08300-00 NUT, FLANGENUT, FLANGE
-
2690183-06902-00 NUT, SPRINGNUT, SPRING
-
2790111-06018-00 BOLTBOLT
-
28F0X-6555D-00-00 BRKT., COVER CENTER 1BRKT., COVER CENTER 1
-
29F0X-6555E-00-00 BRKT., COVER CENTER 2BRKT., COVER CENTER 2
-
309572R-06300-00 NUT, NYLONNUT, NYLON
-
319299R-06200-00 WASHERWASHER
-
32F0X-U517H-30-00 LID HATCH (YB - YAMAHA BLACK)LID HATCH (YB - YAMAHA BLACK)
-
33GU2-62875-01-00 LOCKLOCK
-
3490605-502U2-00 PLUGPLUG
-
35F0X-6517R-01-00 PIN, HINGEPIN, HINGE
-
36F0X-U519D-02-00 PACKING CASEPACKING CASE
-
37F0X-6517C-00-00 LOCK, LIDLOCK, LID
-
3890119-06824-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
399572R-06300-00 NUT, NYLONNUT, NYLON
