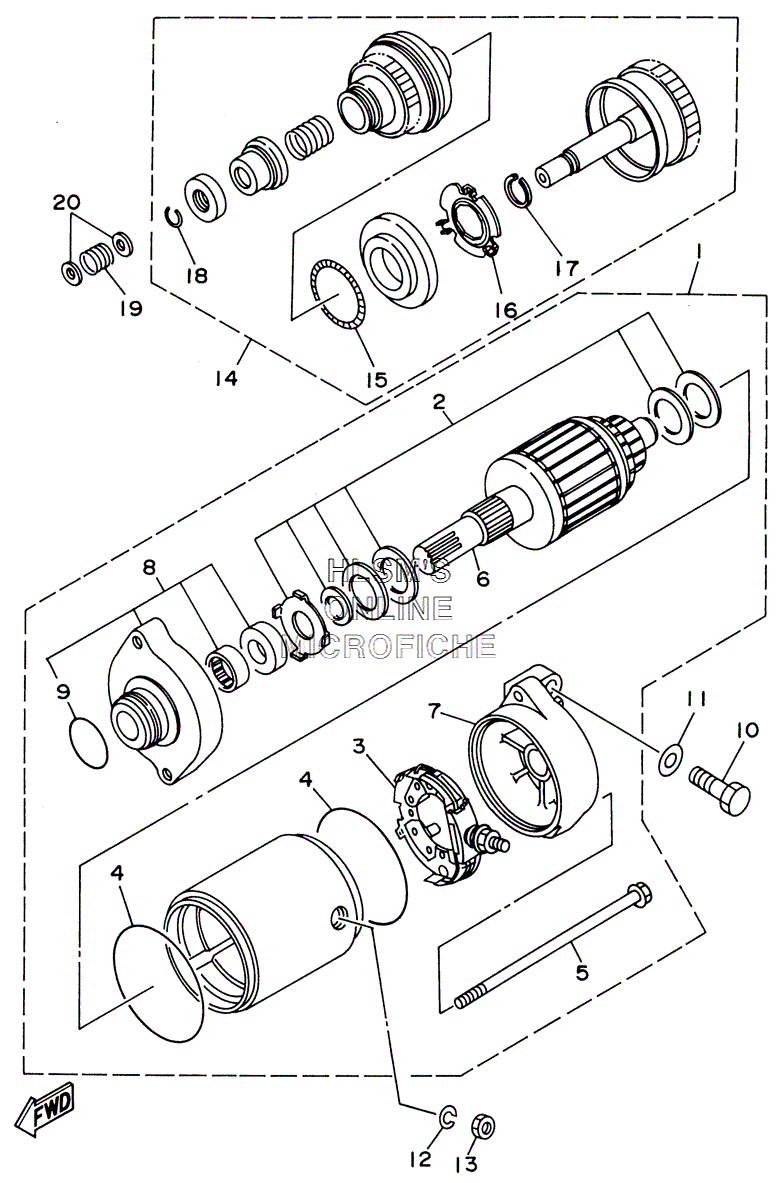

STARTING MOTOR для Yamaha GP800A WAVERUNNER 2-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
163M-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
36M6-81840-10-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
411H-81844-00-00 ...GASKET...GASKET
-
56M6-81826-00-00 ...BOLT...BOLT
-
66M6-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
763M-81830-00-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
86M6-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
91FK-81847-00-00 ...O-RING...O-RING
-
1097013-08025-00 BOLTBOLT
-
1192903-08600-00 WASHER, PLATEWASHER, PLATE
-
1292990-06100-00 WASHER, SPRINGWASHER, SPRING
-
1395380-06700-00 NUTNUT
-
146M6-8183E-01-00 IDLE GEAR COMP.IDLE GEAR COMP.
-
156M6-81866-00-00 ...WEIGHT SPRING...WEIGHT SPRING
-
166M6-81865-00-00 ...WEIGHT HOLDER...WEIGHT HOLDER
-
1793440-25M08-00 ...CIRCLIP...CIRCLIP
-
1893450-18M06-00 ...CIRCLIP...CIRCLIP
-
1990501-14M73-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2092903-06600-00 WASHER, PLATEWASHER, PLATE
