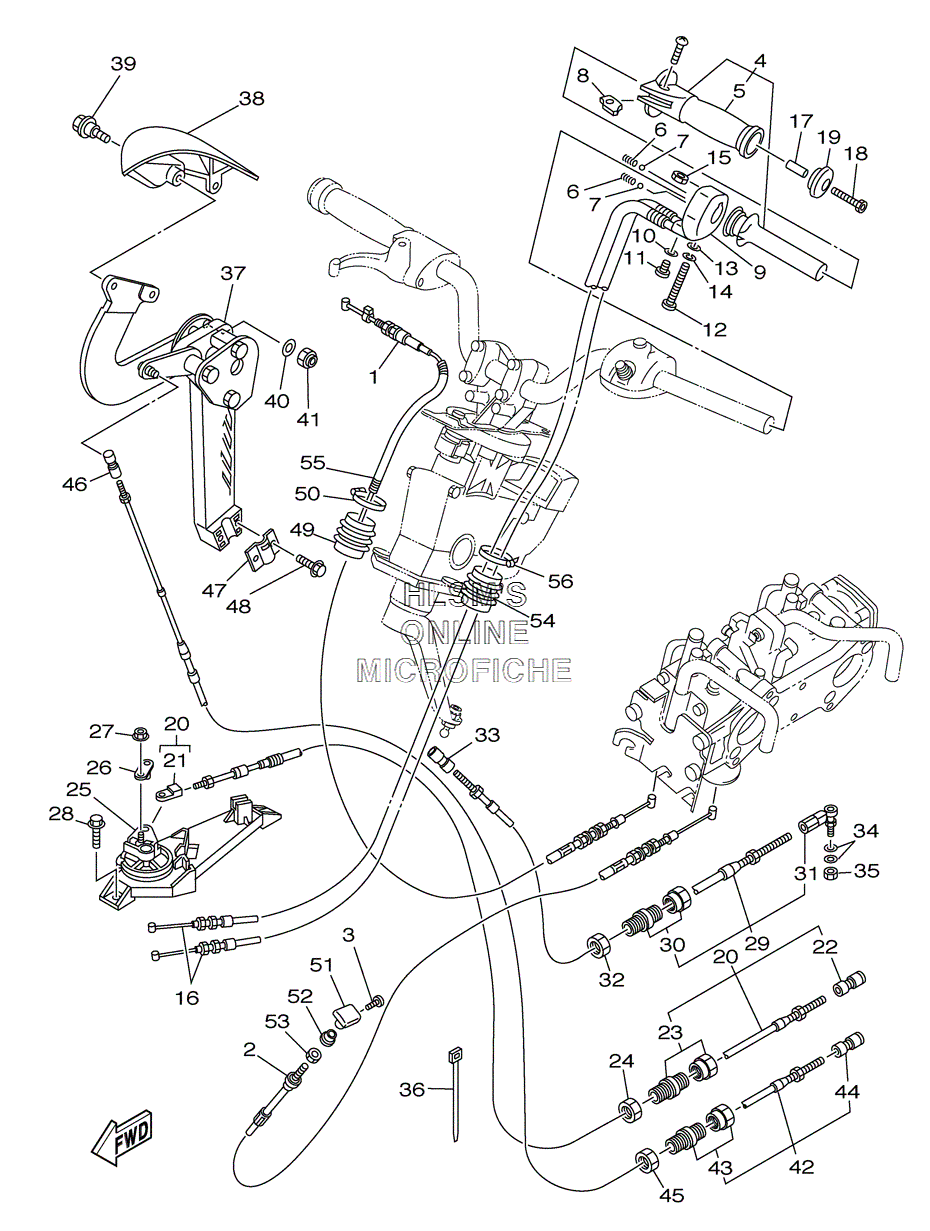

CONTROL CABLES для Yamaha XA800A WAVERUNNER 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
166E-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
267A-67242-01-00 CABLE, CHOKECABLE, CHOKE
-
390149-03M15-00 SCREWSCREW
-
4GP7-U157A-00-00 GRIP HANDLE ASSY.GRIP HANDLE ASSY.
-
5GP7-U155C-00-00 ...GRIP, HANDLE...GRIP, HANDLE
-
6GP7-U152P-00-00 SPRINGSPRING
-
7GP7-U152R-00-00 BALLBALL
-
8GP7-U151M-00-00 LEVER ASSYLEVER ASSY
-
9GP7-U152M-00-00 HOUSING ASSYHOUSING ASSY
-
1092990-04600-00 WASHER, PLATEWASHER, PLATE
-
1198980-04010-00 SCREW, BINDSCREW, BIND
-
1297880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392990-06600-00 WASHER, PLATEWASHER, PLATE
-
149299R-06100-00 WASHERWASHER
-
15GH1-U143B-00-00 NUT, SPECIALNUT, SPECIAL
-
16F0D-U153D-01-00 CABLE, NOZZLE CONTROL 2CABLE, NOZZLE CONTROL 2
-
1790387-05800-00 COLLARCOLLAR
-
1890110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
19GP7-U155F-00-00 GRIP, ENDGRIP, END
-
20F0D-U153E-10-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
21GH1-U046C-00-00 ...END, CABLE...END, CABLE
-
22EU0-U1461-30-00 ...SHAFT, JOINT BALL...SHAFT, JOINT BALL
-
23EU0-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
24EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
25F0D-U153J-10-00 REMO CON. NOZZLE 2REMO CON. NOZZLE 2
-
26F0D-U152C-10-00 PINPIN
-
279572R-06300-00 NUT, NYLONNUT, NYLON
-
2890119-069UJ-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
29F0D-U1481-10-00 CABLE, STEERINGCABLE, STEERING
-
30GK5-67267-10-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
31GP8-U1461-T0-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
32EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
33GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
3490201-06906-00 WASHER, PLATEWASHER, PLATE
-
359538R-06700-00 NUTNUT
-
3690601-200U1-00 BANDBAND
-
37F0V-6134A-00-00 REMO CON. LEVER ASSY.REMO CON. LEVER ASSY.
-
38F0V-U2714-00-00 GRIPGRIP
-
3990109-06803-00 BOLTBOLT
-
409299R-06200-00 WASHERWASHER
-
419572R-06300-00 NUT, NYLONNUT, NYLON
-
42F0V-U149C-00-00 CABLE, REVERSECABLE, REVERSE
-
43F0V-U7267-00-00 ...CONNECTOR, CABLE...CONNECTOR, CABLE
-
44F0V-U1461-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
45EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
46EU0-U1461-30-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
47GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
4890119-069UJ-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
49F0D-6822E-00-00 GROMMETGROMMET
-
5090601-200U1-00 BANDBAND
-
51EW2-67243-00-00 KNOBKNOB
-
52F0N-6724E-00-00 NUT, COMPRESSIONNUT, COMPRESSION
-
53F0P-6724F-00-00 NUTNUT
-
54F0D-6822E-00-00 GROMMETGROMMET
-
55F0D-6773E-00-00 TUBE, 2TUBE, 2
-
5690601-200U1-00 BANDBAND
