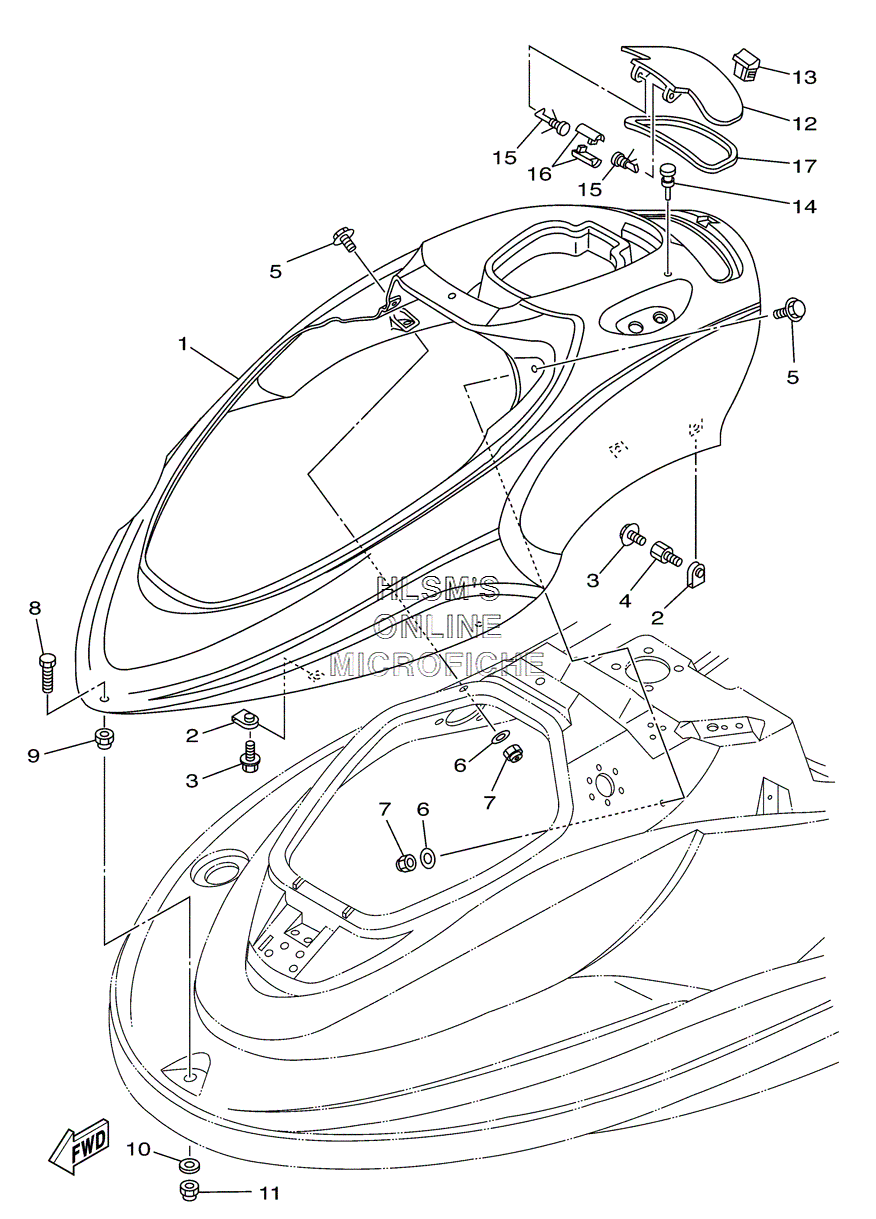

SIDE COVERS для Yamaha XA800A WAVERUNNER 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
1F0V-U516N-A0-P0 COVER, ENGINE HATCHCOVER, ENGINE HATCH
-
290183-06902-00 NUT, SPRINGNUT, SPRING
-
390119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4F0V-U7772-00-00 NUT, JOINTNUT, JOINT
-
590119-06803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
69299R-06200-00 WASHERWASHER
-
79572R-06300-00 NUT, NYLONNUT, NYLON
-
89708R-06030-00 BOLTBOLT
-
99538R-06700-00 NUTNUT
-
109299R-06200-00 WASHERWASHER
-
119572R-06300-00 NUT, NYLONNUT, NYLON
-
12F0V-U517H-20-00 LID HATCH (YB - YAMAHA BLACK)LID HATCH (YB - YAMAHA BLACK)
-
13F0D-62875-00-00 LOCKLOCK
-
1490605-502U2-00 PLUGPLUG
-
15F0D-6517R-00-00 PIN, HINGEPIN, HINGE
-
16F0D-6517T-00-00 JOINT, HINGEJOINT, HINGE
-
17F0D-U519D-00-00 PACKING CASEPACKING CASE
