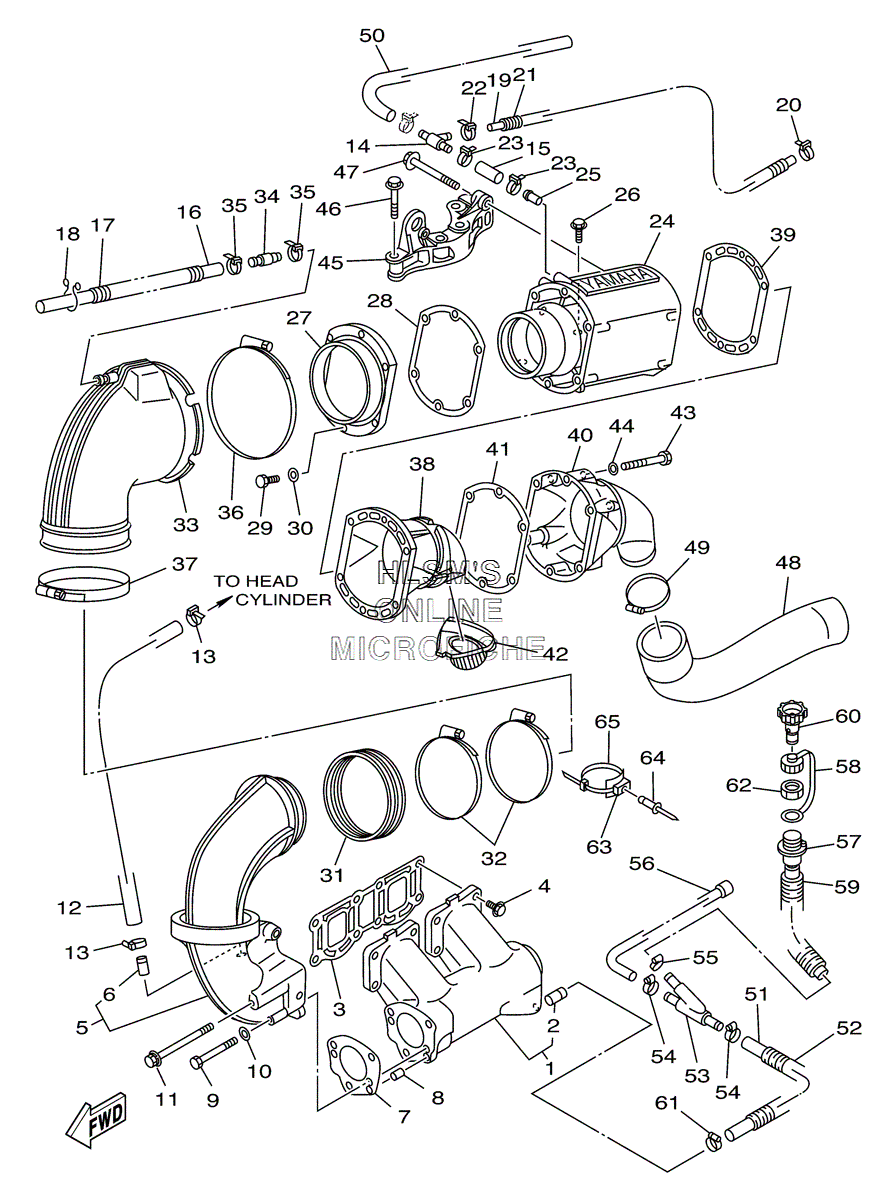

EXHAUST SYSTEM для Yamaha XL700 WAVERUNNER - 2004 года выпуска
-
№АртикулНазвание
-
162T-14711-10-94 MUFFLER 1MUFFLER 1
-
26K8-51129-00-00 ...NIPPLE...NIPPLE
-
362T-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
490105-10M60-00 BOLT, FLANGEBOLT, FLANGE
-
562T-14712-00-94 RING, JOINTRING, JOINT
-
66K8-51129-00-00 ...NIPPLE...NIPPLE
-
762T-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
893605-12M21-00 PIN, DOWELPIN, DOWEL
-
997013-08075-00 BOLTBOLT
-
1092903-08600-00 WASHER, PLATEWASHER, PLATE
-
1190119-08M11-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290445-14M24-00 HOSE (L260)HOSE (L260)
-
1390465-11M10-00 CLAMPCLAMP
-
1463N-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
1590445-21M02-00 HOSE (L50)HOSE (L50)
-
1690445-14M21-00 HOSE (L890)HOSE (L890)
-
1790446-20M31-00 HOSE (L340)HOSE (L340)
-
1890464-15M11-00 CLAMPCLAMP
-
1990445-14M25-00 HOSE (L380)HOSE (L380)
-
2090465-11M10-00 CLAMPCLAMP
-
2190446-20M31-00 HOSE (L340)HOSE (L340)
-
2290465-11M10-00 CLAMPCLAMP
-
2390465-11M59-00 CLAMPCLAMP
-
2462T-14721-00-8S MUFFLER 2MUFFLER 2
-
2562T-14485-10-00 PIPE, JOINTPIPE, JOINT
-
2690105-10M60-00 BOLT, FLANGEBOLT, FLANGE
-
2762T-41113-00-8S OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
2862T-41114-01-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
2997013-06025-00 BOLTBOLT
-
3092903-06600-00 WASHER, PLATEWASHER, PLATE
-
3162T-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
3290450-99M06-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3362T-14615-01-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
346R3-24377-00-00 PIPE, JOINT 3PIPE, JOINT 3
-
3590465-11M10-00 CLAMPCLAMP
-
3690450-99M01-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3790450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3862T-41121-00-8S INNER COVER,EXHAUSTINNER COVER,EXHAUST
-
3962T-41122-00-00 GASKET, EXHAUST INNER COVERGASKET, EXHAUST INNER COVER
-
4062T-41123-01-8S OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4162T-41124-00-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
4263N-15761-00-00 SEAL, RUBBER 1SEAL, RUBBER 1
-
4397013-06070-00 BOLTBOLT
-
4492903-06600-00 WASHER, PLATEWASHER, PLATE
-
4562T-14771-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
4690119-10M17-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4790105-10M88-00 BOLT, FLANGEBOLT, FLANGE
-
4863N-14752-30-00 PIPE, OUTLETPIPE, OUTLET
-
4990450-70M03-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5090445-21M00-00 HOSE (L1390)HOSE (L1390)
-
5190445-14M10-00 HOSE (L500)HOSE (L500)
-
5290446-20M65-00 HOSE (L445)HOSE (L445)
-
5364X-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
5490450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5590450-18M09-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5665R-12564-00-00 PIPE, WATERPIPE, WATER
-
5764T-12580-00-00 JOINT ASSYJOINT ASSY
-
58682-84385-01-00 CAP, 1CAP, 1
-
5990446-24M89-00 HOSE (L420)HOSE (L420)
-
6067X-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
6190601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
62EU0-61652-00-00 NUTNUT
-
6390600-91736-00 CLAMP COMP.CLAMP COMP.
-
6490267-489U7-00 RIVET, BLINDRIVET, BLIND
-
6590464-32801-00 CLAMPCLAMP
