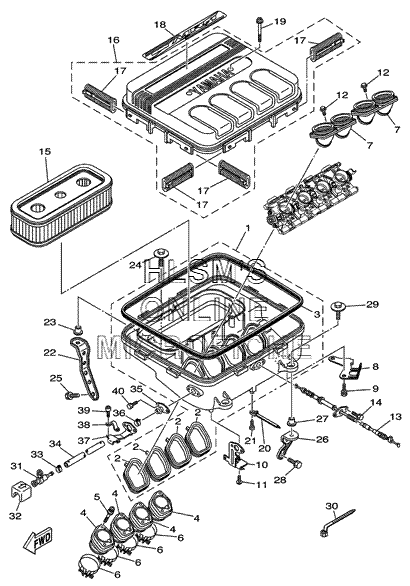

AIR SILENCER W/ INTAKE для Yamaha WAVERUNNER FX CRUISER HO - 2005 года выпуска
-
№АртикулНазвание
-
16B6-14410-00-00 AIR CLEANER ASSYAIR CLEANER ASSY
-
26B6-14239-00-00 ...SEAL...SEAL
-
360E-14457-00-00 ...SEAL...SEAL
-
46B6-13795-00-00 JOINT, THROTTLE BODY 1JOINT, THROTTLE BODY 1
-
590110-08020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690450-57002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
76B6-1440A-00-00 RIBBON, SUB ASSYRIBBON, SUB ASSY
-
86B6-14869-00-00 BRACKET 3BRACKET 3
-
997513-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1060E-14867-00-00 BRACKETBRACKET
-
1190160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1290109-06053-00 BOLTBOLT
-
136B6-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1490119-06078-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
156B6-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
166B6-14420-00-00 AIR CLEANER ASSY 2AIR CLEANER ASSY 2
-
1766V-13898-00-00 ...HOLDER...HOLDER
-
186B6-2339F-00-00 GRAPHIC 2GRAPHIC 2
-
1990159-05006-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2090465-12M53-00 CLAMPCLAMP
-
2190160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2260E-14413-00-00 STAYSTAY
-
2360E-14449-00-00 COLLARCOLLAR
-
2490119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590119-08032-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2660E-14414-00-00 STAY 2STAY 2
-
2760E-14449-00-00 COLLARCOLLAR
-
2890119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990119-08032-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090464-20005-00 CLAMPCLAMP
-
3160E-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
3260E-24474-00-00 COVERCOVER
-
3390450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3460E-14294-00-00 HOSEHOSE
-
3560E-24329-00-00 SEALSEAL
-
3690467-09120-00 CLIPCLIP
-
3760E-24364-00-00 STAYSTAY
-
3860E-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
3991380-04008-00 BOLTBOLT
-
4097513-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
