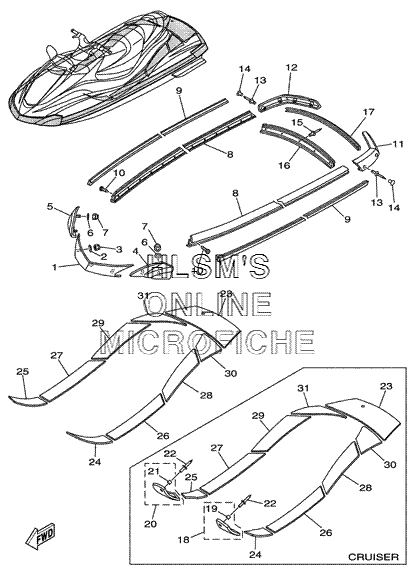

BUMBER W/ GUNWALE MAT для Yamaha WAVERUNNER FX CRUISER HO - 2005 года выпуска
-
№АртикулНазвание
-
1F1S-U2501-02-00 BOW GUNWALE COMP.BOW GUNWALE COMP.
-
1F1S-U2501-10-00 BOW GUNWALE COMP.BOW GUNWALE COMP.
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1S-U252E-01-00 JOINT, GUNWALE LHJOINT, GUNWALE LH
-
4F1S-U252E-10-00 JOINT, GUNWALE LHJOINT, GUNWALE LH
-
5F1S-U252F-10-00 JOINT, GUNWALE RHJOINT, GUNWALE RH
-
5F1S-U252F-01-00 JOINT, GUNWALE RHJOINT, GUNWALE RH
-
69299R-06200-00 WASHERWASHER
-
79572R-06300-00 NUT, NYLONNUT, NYLON
-
8F1B-U2512-00-00 GUNWALE, SIDEGUNWALE, SIDE
-
8F1B-U2512-10-00 GUNWALE, SIDEGUNWALE, SIDE
-
9F1B-U2519-00-00 INNER,GUNWALEINNER,GUNWALE
-
9F1B-U2519-10-00 INNER,GUNWALEINNER,GUNWALE
-
1090169-059U1-00 SCREW,TAPPINGSCREW,TAPPING
-
11F1B-U251D-10-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
11F1B-U251D-02-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
12F1B-U251E-02-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
12F1B-U251E-10-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
1390267-489UT-00 RIVET, BLINDRIVET, BLIND
-
14F0D-U352E-10-00 PLUG, MUSHROOMPLUG, MUSHROOM
-
1590267-489US-00 RIVET, BLINDRIVET, BLIND
-
16F1B-U252C-00-00 COVER, GUNWALE 1COVER, GUNWALE 1
-
16F1B-U252C-10-00 COVER, GUNWALE 1COVER, GUNWALE 1
-
17F1B-U252D-10-00 COVER, GUNWALE 2COVER, GUNWALE 2
-
17F1B-U252D-01-00 COVER, GUNWALE 2COVER, GUNWALE 2
-
18F1S-U350V-00-00 FOOT STEP ASSY LHFOOT STEP ASSY LH
-
1990387-06867-00 ...COLLAR...COLLAR
-
20F1S-U350W-00-00 FOOT STEP ASSY RHFOOT STEP ASSY RH
-
2190387-06867-00 ...COLLAR...COLLAR
-
2290267-48819-00 RIVET, BLINDRIVET, BLIND
-
23F1S-U3581-01-00 MAT, UPPERMAT, UPPER
-
23F1S-U3581-10-00 MAT, UPPERMAT, UPPER
-
24F1S-U351H-01-00 MAT, STEP 1MAT, STEP 1
-
24F1S-U351H-11-00 MAT, STEP 1MAT, STEP 1
-
25F1S-U351J-11-00 MAT, STEP 2MAT, STEP 2
-
25F1S-U351J-01-00 MAT, STEP 2MAT, STEP 2
-
26F1S-U351K-00-00 MAT, STEP 3MAT, STEP 3
-
26F1S-U351K-10-00 MAT, STEP 3 (OPT)MAT, STEP 3 (OPT)
-
27F1S-U351M-00-00 MAT, STEP 4MAT, STEP 4
-
27F1S-U351M-10-00 MAT, STEP 4MAT, STEP 4
-
28F1S-U351N-10-00 MAT, STEP 5MAT, STEP 5
-
28F1S-U351N-00-00 MAT, STEP 5MAT, STEP 5
-
29F1S-U351P-10-00 MAT, STEP 6MAT, STEP 6
-
29F1S-U351P-00-00 MAT, STEP 6MAT, STEP 6
-
30F1S-U351R-10-00 MAT, STEP 7MAT, STEP 7
-
30F1S-U351R-00-00 MAT, STEP 7MAT, STEP 7
-
31F1S-U351S-00-00 MAT, STEP 8MAT, STEP 8
-
31F1S-U351S-10-00 MAT, STEP 8MAT, STEP 8
