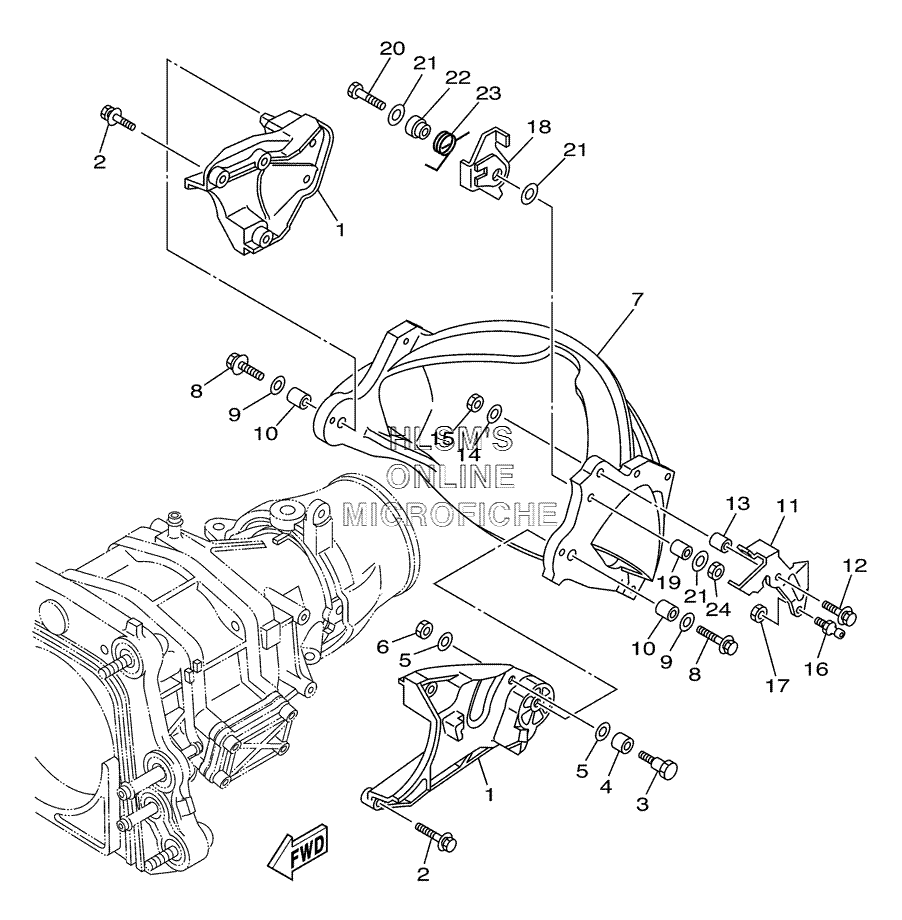

REVERSE GATE для Yamaha FX CRSR HO ANNIV 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
166V-51341-00-94 BRACKET 1BRACKET 1
-
290119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390109-08879-00 BOLTBOLT
-
490387-10M09-00 COLLARCOLLAR
-
59299R-08600-00 WASHERWASHER
-
69538R-08600-00 NUTNUT
-
766V-51314-01-00 GATE, REVERSEGATE, REVERSE
-
890119-089UF-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990201-088T2-00 WASHER, PLATEWASHER, PLATE
-
1090387-08M30-00 COLLARCOLLAR
-
1166V-44121-00-00 LEVER, SHIFT RODLEVER, SHIFT ROD
-
1290119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390387-06M74-00 COLLARCOLLAR
-
1490201-068T1-00 WASHER, PLATEWASHER, PLATE
-
159538R-06600-00 NUTNUT
-
1666V-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
179538R-06600-00 NUTNUT
-
1866V-44125-00-00 LEVER, SHIFT RODLEVER, SHIFT ROD
-
1990387-06M74-00 COLLARCOLLAR
-
2090101-06806-00 BOLTBOLT
-
2190201-068T1-00 WASHER, PLATEWASHER, PLATE
-
2290387-06M84-00 COLLARCOLLAR
-
2390508-14M43-00 SPRING, TORSIONSPRING, TORSION
-
249538R-06600-00 NUTNUT
