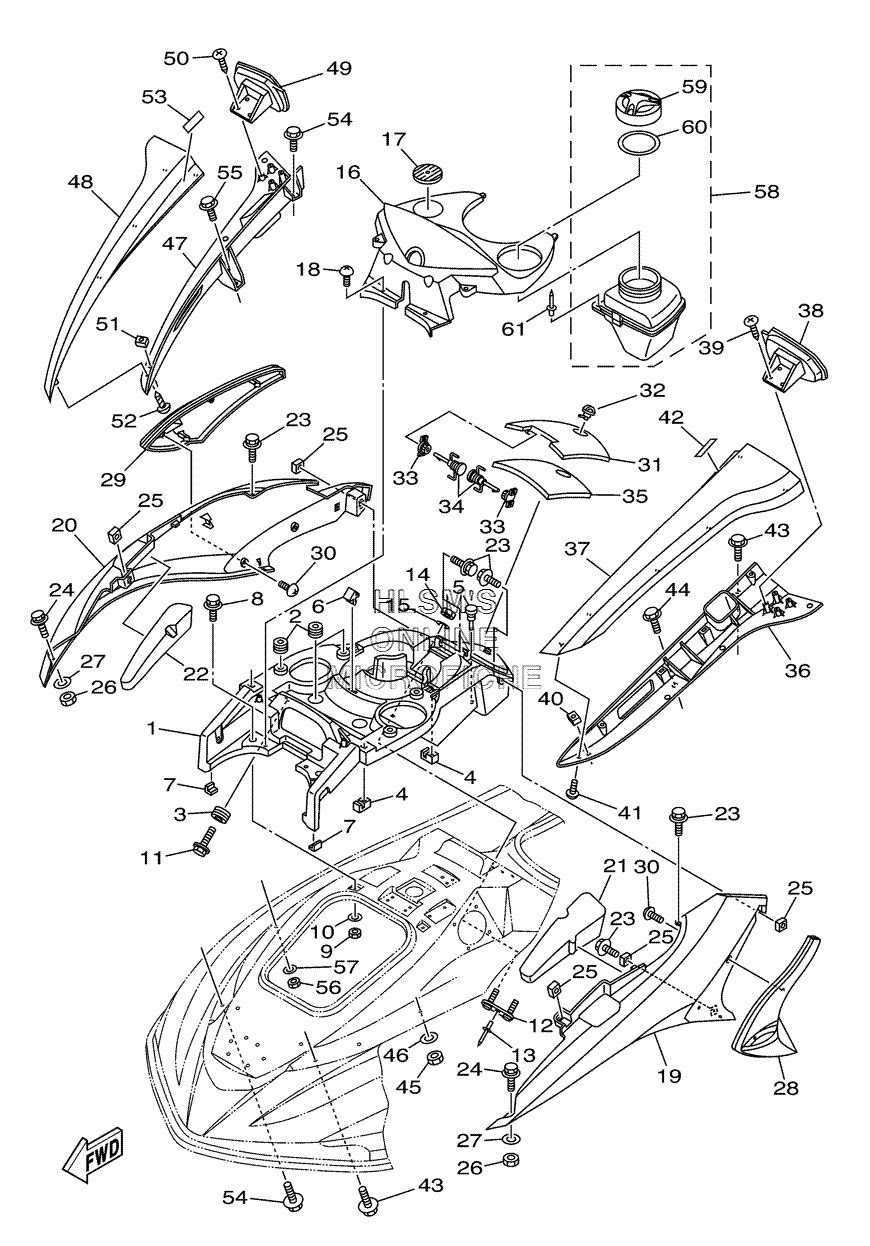

SIDE COVERS для Yamaha FX CRSR HO ANNIV 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1F1X-U550A-00-00 CENTER COVER COMP.CENTER COVER COMP.
-
2F1X-U828E-01-00 DAMPER 1DAMPER 1
-
390480-19800-00 GROMMETGROMMET
-
4F1X-U517E-10-00 NUTNUT
-
590605-502U2-00 PLUGPLUG
-
6F1K-U266C-00-00 PACKING 4PACKING 4
-
7F1B-U5115-00-00 TRIM, HATCH 1TRIM, HATCH 1
-
890119-06803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
99572R-06300-00 NUT, NYLONNUT, NYLON
-
109299R-06200-00 WASHERWASHER
-
1190119-05803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12F1X-U5372-00-00 BRACKETBRACKET
-
1390267-489U1-00 RIVET, BLINDRIVET, BLIND
-
149572R-06300-00 NUT, NYLONNUT, NYLON
-
159299R-06200-00 WASHERWASHER
-
16F1X-U8262-30-00 COVER METERCOVER METER
-
17F1X-U3844-01-00 MATMAT
-
1890149-05903-00 SCREWSCREW
-
19F1X-U377B-30-P0 COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC)COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC)
-
20F1X-U377C-30-P0 COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC)COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC)
-
21F1X-U377H-01-00 INNER, COVER SIDE 1INNER, COVER SIDE 1
-
22F1X-U377J-01-00 INNER, COVER SIDE 2INNER, COVER SIDE 2
-
2390119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2490119-06803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
25F1X-U517E-10-00 NUTNUT
-
269572R-06300-00 NUT, NYLONNUT, NYLON
-
279299R-06200-00 WASHERWASHER
-
28F1X-U377F-00-00 ORNAMENT, SIDE LHORNAMENT, SIDE LH
-
29F1X-U377G-00-00 ORNAMENT, SIDE RHORNAMENT, SIDE RH
-
3090149-05903-00 SCREWSCREW
-
31F1X-U517H-00-00 LID HATCHLID HATCH
-
32F1X-62875-00-00 LOCKLOCK
-
33F1B-60210-00-00 GEAR ASSYGEAR ASSY
-
34F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
35F1X-U519D-01-00 PACKING CASEPACKING CASE
-
36F1X-U596K-20-P0 COVER, MIRROR LOWER (HEAT RED)COVER, MIRROR LOWER (HEAT RED)
-
37F1X-U596H-20-P0 COVER, MIRROR UPPER (HEAT RED)COVER, MIRROR UPPER (HEAT RED)
-
38F1X-U596B-10-00 MIRROR LHMIRROR LH
-
3990149-05903-00 SCREWSCREW
-
40F1X-U517E-10-00 NUTNUT
-
4190149-05903-00 SCREWSCREW
-
42F1K-U266B-00-00 PACKING 3PACKING 3
-
4390119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4490119-06803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
459572R-06300-00 NUT, NYLONNUT, NYLON
-
469299R-06200-00 WASHERWASHER
-
47F1X-U596L-20-P0 COVER, MIRROR LOWER (HEAT RED)COVER, MIRROR LOWER (HEAT RED)
-
48F1X-U596J-20-P0 COVER, MIRROR UPPER (HEAT RED)COVER, MIRROR UPPER (HEAT RED)
-
49F1X-U596C-10-00 MIRROR RHMIRROR RH
-
5090149-05903-00 SCREWSCREW
-
51F1X-U517E-10-00 NUTNUT
-
5290149-05903-00 SCREWSCREW
-
53F1K-U266B-00-00 PACKING 3PACKING 3
-
5490119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5590119-06803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
569572R-06300-00 NUT, NYLONNUT, NYLON
-
579299R-06200-00 WASHERWASHER
-
58F1X-U591A-01-00 CASE,ASSY 1CASE,ASSY 1
-
59F1X-U591C-01-00 ...CAP,CASE...CAP,CASE
-
60F1X-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
6190267-489UP-00 RIVET, BLINDRIVET, BLIND
