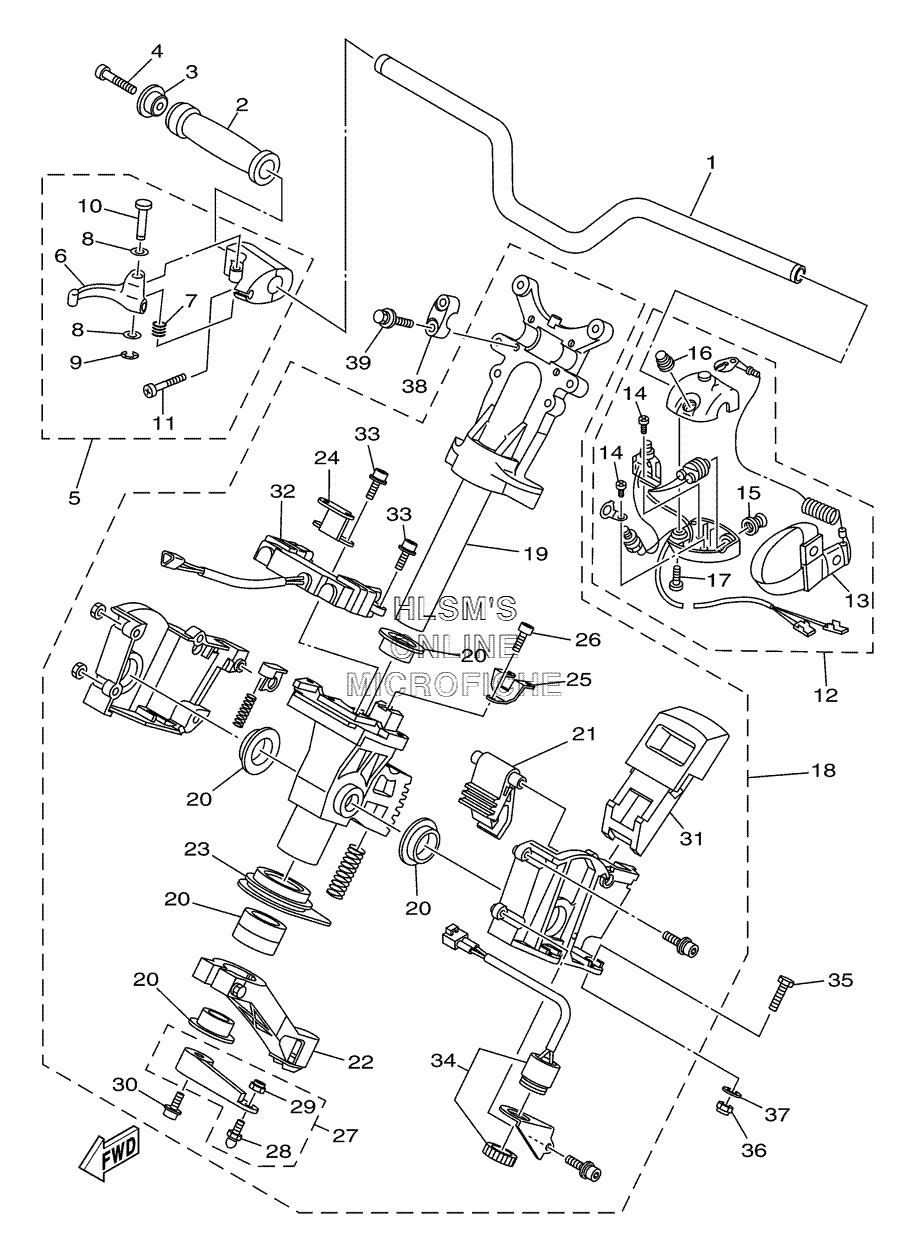

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FX CRUISER HO 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1F1B-61552-00-00 HANDLEHANDLE
-
1F1S-61552-00-00 HANDLE FOR CRUISERHANDLE FOR CRUISER
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
3F1S-U155F-00-00 GRIP, END FOR CRUISERGRIP, END FOR CRUISER
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-03-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
1198580-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
12F1S-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F1S-61400-14-00 STEERING MASTER ASSY FOR CRUISERSTEERING MASTER ASSY FOR CRUISER
-
18F1S-61400-03-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F1S-67410-00-00 ...SHAFT ASSY...SHAFT ASSY
-
19F1S-67410-10-00 ...SHAFT ASSY FOR CRUISER...SHAFT ASSY FOR CRUISER
-
20F1S-6773D-00-00 ...TUBE...TUBE
-
21F1S-61782-00-00 ...LOCK 1...LOCK 1
-
22F1S-6146A-00-00 ...CABLE STOPPER ASSY....CABLE STOPPER ASSY.
-
23F1S-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
24F1S-65938-00-00 ...STAY 1...STAY 1
-
25F1S-65939-00-00 ...STAY 2...STAY 2
-
26F1B-613C1-00-00 ...SCREW, OVAL HEAD...SCREW, OVAL HEAD
-
27F1S-6153R-00-00 ...ARM ASSY....ARM ASSY.
-
28EU0-61461-02-00 ......STUD, JOINT BALL......STUD, JOINT BALL
-
2995720-06300-00 ......NUT, SELF-LOCKING......NUT, SELF-LOCKING
-
30F1S-61355-00-00 ...BOLT...BOLT
-
31F1B-6151M-03-00 ...LEVER ASSY...LEVER ASSY
-
32F1B-68303-10-00 ...SENSOR ASSY...SENSOR ASSY
-
33F1S-61355-00-00 ...BOLT...BOLT
-
34F1S-68341-00-00 ...BUZZER...BUZZER
-
3597080-08035-00 BOLTBOLT
-
369572R-08300-00 NUT, FLANGENUT, FLANGE
-
3790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
38EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
3990119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
