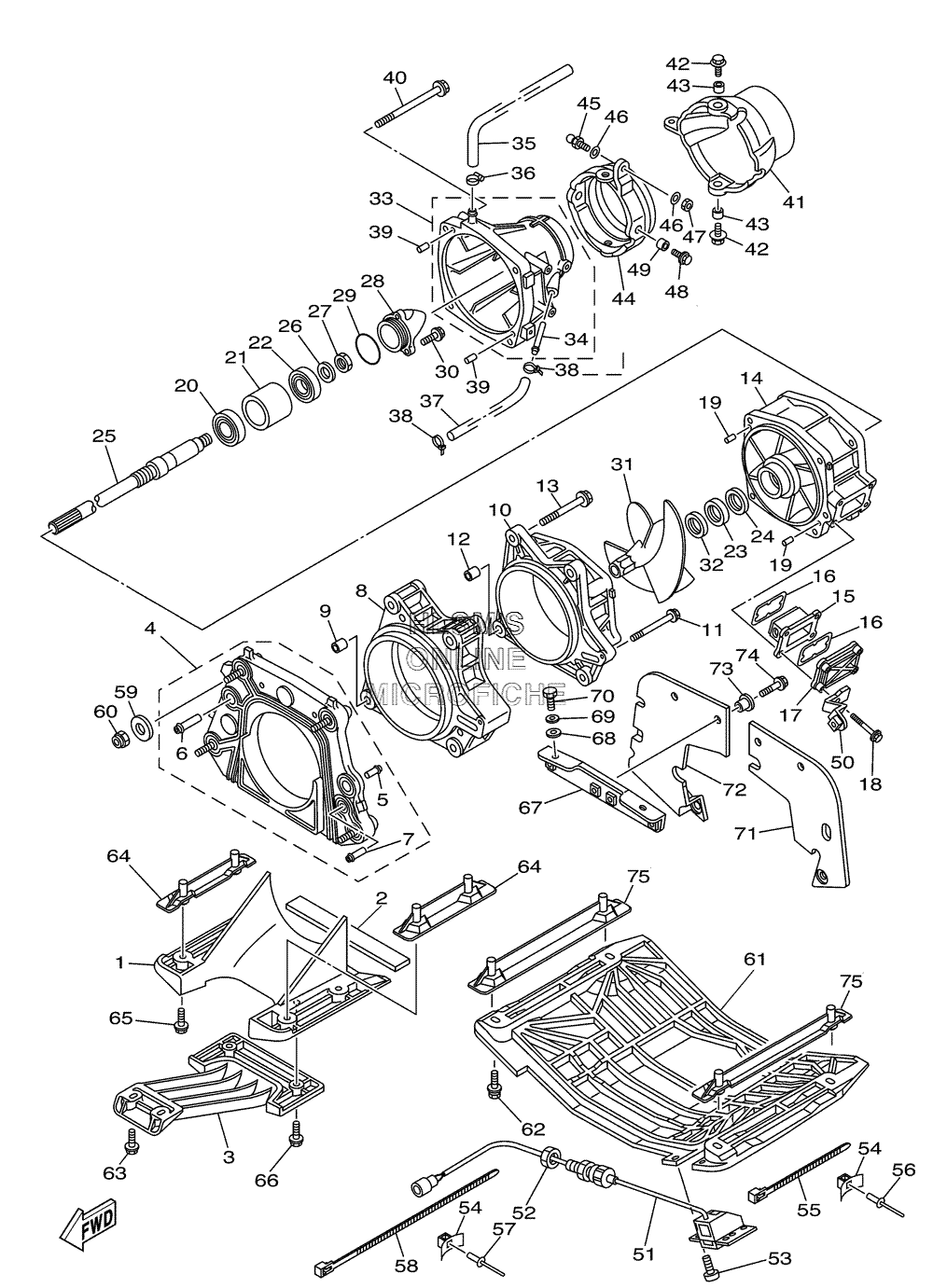

PROPULSION SYSTEM - EXTERNAL для Yamaha FX CRUISER HO 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
160E-R1311-00-94 DUCT, INTAKEDUCT, INTAKE
-
266V-R1367-00-00 FELT, PACKINGFELT, PACKING
-
360E-R1333-00-94 SCREEN, INTAKESCREEN, INTAKE
-
460E-G5831-01-00 PLATE, TRANSOMPLATE, TRANSOM
-
565A-R1129-00-00 ...NIPPLE...NIPPLE
-
666V-51129-10-00 ...NIPPLE...NIPPLE
-
760E-51129-30-00 ...NIPPLE...NIPPLE
-
860E-51317-00-94 HOUSING, IMPELLER 2HOUSING, IMPELLER 2
-
999590-14016-00 PIN, DOWELPIN, DOWEL
-
1066V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
1190119-06859-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1299590-14016-00 PIN, DOWELPIN, DOWEL
-
1390119-10803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146B6-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
1566V-46882-00-00 FILTERFILTER
-
1666V-42414-00-00 O-RINGO-RING
-
1766V-45214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1890119-06800-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1993606-12019-00 PIN, DOWELPIN, DOWEL
-
2093306-205U0-00 BEARINGBEARING
-
2165V-45538-00-00 SPACER 1SPACER 1
-
2293306-304U1-00 BEARINGBEARING
-
2393101-28M66-00 OIL SEALOIL SEAL
-
2493101-28002-00 OIL SEALOIL SEAL
-
2568Y-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
269299R-16600-00 WASHERWASHER
-
279531P-16700-00 NUTNUT
-
286B6-51326-10-00 CAPCAP
-
2993210-464A3-00 O-RINGO-RING
-
3090110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
316B6-R1321-00-00 IMPELLERIMPELLER
-
3266V-R1348-10-00 SPACERSPACER
-
336B6-51318-00-94 NOZZLENOZZLE
-
3463M-51334-00-00 NIPPLE, HOSENIPPLE, HOSE
-
3590445-16M09-00 HOSEHOSE
-
3690601-118UF-00 NYLON CLIPNYLON CLIP
-
3790445-14804-00 HOSE (L330)HOSE (L330)
-
3890465-11829-00 CLAMPCLAMP
-
3993606-12019-00 PIN, DOWELPIN, DOWEL
-
4090119-10837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4166V-R1313-01-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
4290119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390387-08M06-00 COLLARCOLLAR
-
4460T-51190-00-94 RING, TRIMRING, TRIM
-
45GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4690201-068M4-00 WASHER, PLATEWASHER, PLATE
-
479538R-06700-00 NUTNUT
-
4890119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4990387-08M06-00 COLLARCOLLAR
-
506B6-51342-00-00 BRACKET 2BRACKET 2
-
51F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
51F1X-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
52EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
5390150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
5490600-917U4-00 CLAMP COMP.CLAMP COMP.
-
5590464-32801-00 CLAMPCLAMP
-
5690267-48802-00 RIVET, BLINDRIVET, BLIND
-
5790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
5890464-99801-00 CLAMPCLAMP
-
59F1S-U725E-00-00 WASHERWASHER
-
609572R-10300-00 NUT, FLANGENUT, FLANGE
-
61F1S-U273B-01-00 PLATE 2PLATE 2
-
6290119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6390119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
64F1G-U8571-00-00 BRACKET 1BRACKET 1
-
6590119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6690119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
67F1B-67557-00-00 BRACKETBRACKET
-
6890430-12002-00 GASKETGASKET
-
6992990-12200-00 WASHER, PLAINWASHER, PLAIN
-
7090109-08041-00 BOLTBOLT
-
71F1S-U757E-02-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
72F1S-U757F-02-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
7390387-06080-00 COLLARCOLLAR
-
7490119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75F1B-U8572-00-00 BRACKET 2BRACKET 2
