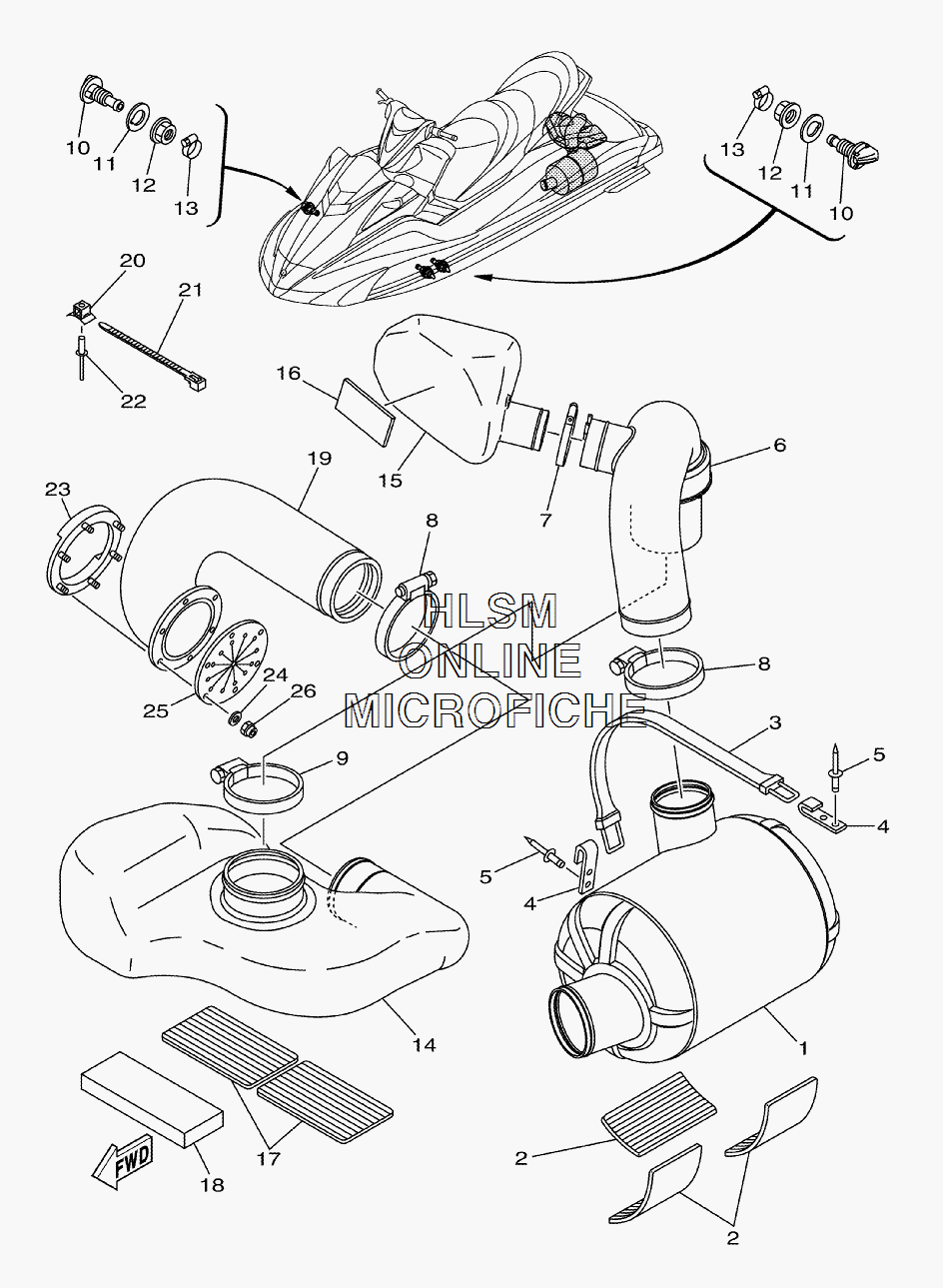

EXHAUST - WATER BOX для Yamaha FX SUPER HO - 2008 года выпуска`
-
№АртикулНазвание
-
1F1W-U7550-00-00 WATER LOCK COMP.WATER LOCK COMP.
-
2F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
3EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
4GA7-65772-00-00 HOOK AHOOK A
-
590267-489U1-00 RIVET, BLINDRIVET, BLIND
-
6F1W-U7555-00-00 HOSE, EXHAUSTHOSE, EXHAUST
-
790601-170UG-00 BAND, HOSE 70BAND, HOSE 70
-
890450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
990450-99804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
10F1K-6753B-00-00 PILOT, WATERPILOT, WATER
-
11F1B-67564-00-00 GASKETGASKET
-
12F0X-62733-00-00 NUTNUT
-
1390467-17802-00 CLIPCLIP
-
14F1W-U4261-00-00 TANK, WATERTANK, WATER
-
15F1W-U753C-01-00 RESONATOR 1RESONATOR 1
-
16F1K-U759C-00-00 MAT 2MAT 2
-
17F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
18F1W-U8831-01-00 BED, TANK 1BED, TANK 1
-
19F1B-U758D-02-00 HOSE, EXHAUST 3HOSE, EXHAUST 3
-
2090600-91736-00 CLAMP COMP.CLAMP COMP.
-
2190464-32801-00 CLAMPCLAMP
-
2290267-48802-00 RIVET, BLINDRIVET, BLIND
-
23F1S-U757B-00-00 PLATEPLATE
-
249299R-06200-00 WASHERWASHER
-
25F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
269572R-06300-00 NUT, NYLONNUT, NYLON
