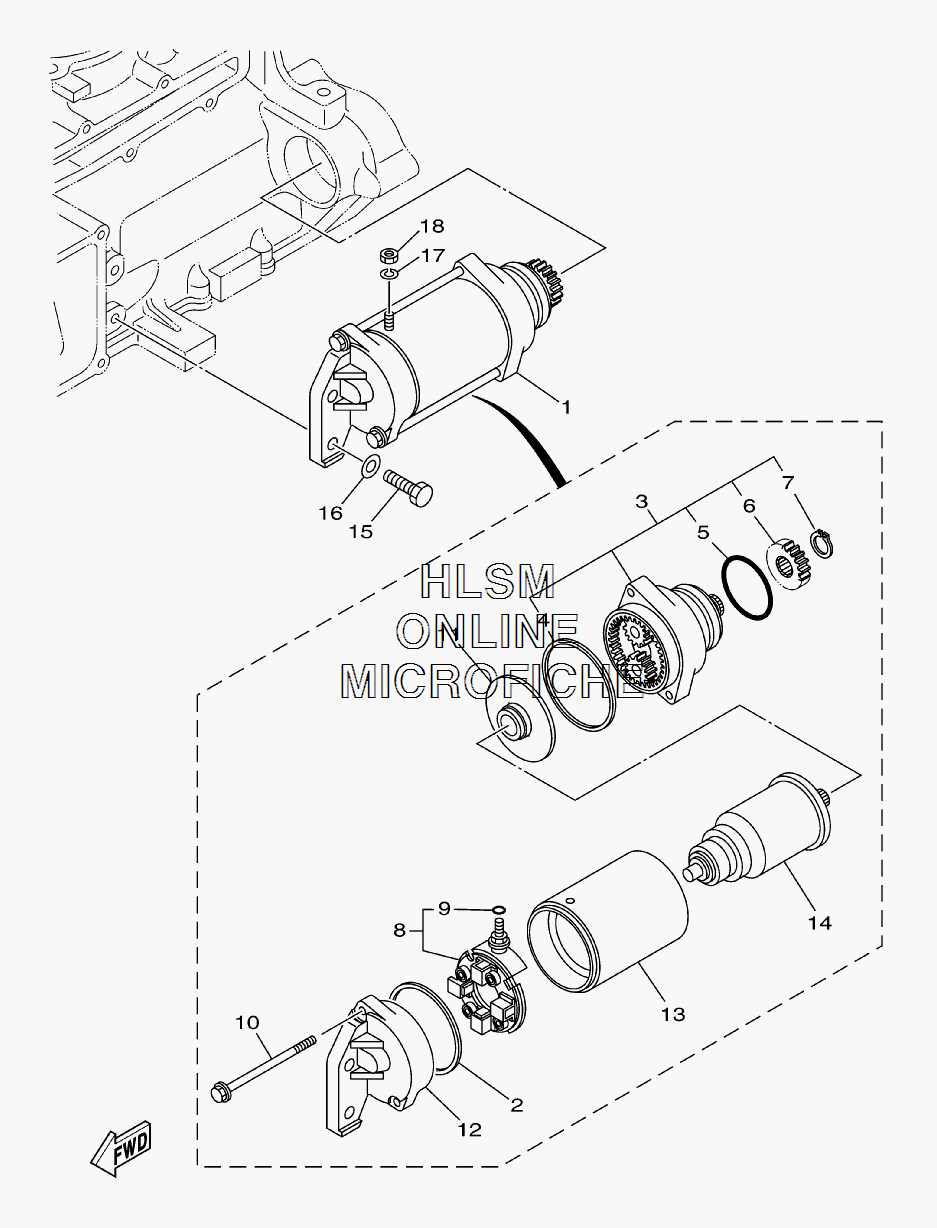

STARTING MOTOR для Yamaha FX SUPER HO - 2008 года выпуска
-
№АртикулНазвание
-
16S5-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
211H-81844-00-00 ...GASKET...GASKET
-
36S5-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
44G0-81844-00-00 ...GASKET...GASKET
-
51J7-81847-60-00 ...O-RING...O-RING
-
65EL-15511-00-00 ...GEAR, STARTING MOTOR...GEAR, STARTING MOTOR
-
793410-12003-00 ...CIRCLIP...CIRCLIP
-
86S5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
93TB-81847-00-00 ...O-RING...O-RING
-
106S5-81826-00-00 ...BOLT...BOLT
-
115EL-81845-00-00 ...PLATE...PLATE
-
126S5-81820-00-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
136S5-81810-00-00 ...STATOR ASSY...STATOR ASSY
-
145A8-81850-10-00 ...ARMATURE ASSY...ARMATURE ASSY
-
1597013-08030-00 BOLTBOLT
-
1692903-08600-00 WASHER, PLATEWASHER, PLATE
-
1792990-06100-00 WASHER, SPRINGWASHER, SPRING
-
1895380-06700-00 NUTNUT
