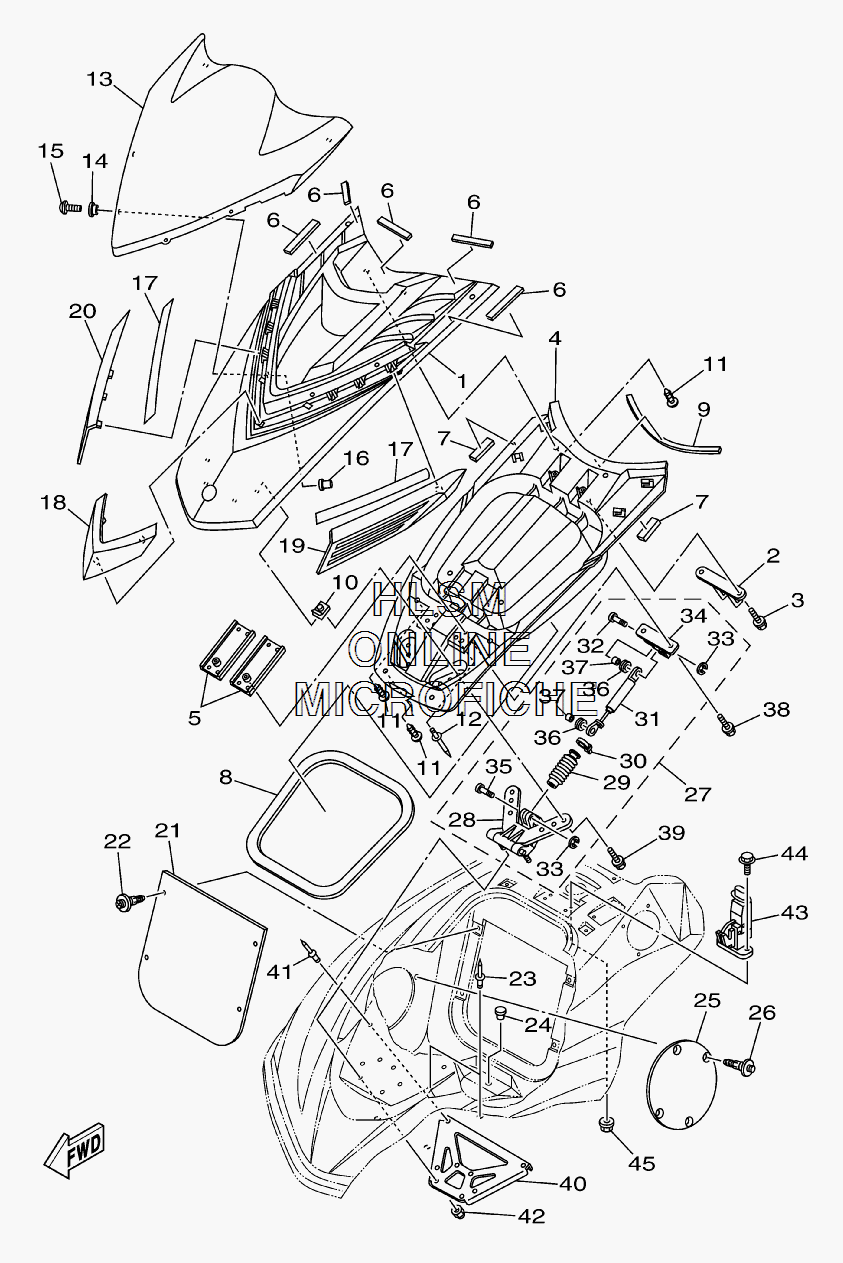

FRONT STORAGE W/ COVER для Yamaha FX - 2008 года выпуска`
-
№АртикулНазвание
-
1F1X-U517B-40-P0 LID, ENGINE ROOM (MAPLE RED)LID, ENGINE ROOM (MAPLE RED)
-
2F0X-6517F-01-00 HOOK, LID LOCKHOOK, LID LOCK
-
390119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4F1X-U2103-01-00 VENTILATOR COVER COMP., 2VENTILATOR COVER COMP., 2
-
5F1B-65148-00-00 PLATE, HATCHPLATE, HATCH
-
6F0X-U515E-01-00 DAMPER 2DAMPER 2
-
7F1X-U266B-00-00 PACKING 3PACKING 3
-
8F1B-U2663-00-00 PACKING 1PACKING 1
-
9F1B-U266B-00-00 PACKING 3PACKING 3
-
1090183-06902-00 NUT, SPRINGNUT, SPRING
-
1190149-05903-00 SCREWSCREW
-
1290267-489U9-00 RIVET, BLINDRIVET, BLIND
-
13F1X-U515N-01-00 VISOR (BLACK)VISOR (BLACK)
-
1490381-05041-00 BUSH, SOLIDBUSH, SOLID
-
1590111-05017-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690179-05800-00 NUTNUT
-
17F1X-U3635-10-00 TAPE, FITTINGTAPE, FITTING
-
18F1X-U517V-00-00 ORNAMENT, CENTERORNAMENT, CENTER
-
19F1X-U517W-01-00 ORNAMENT, LHORNAMENT, LH
-
20F1X-U517X-01-00 ORNAMENT, RHORNAMENT, RH
-
21F1S-U475F-00-00 PLATE, LOCKER BOWPLATE, LOCKER BOW
-
2290269-08801-00 RIVETRIVET
-
2390267-489UP-00 RIVET, BLINDRIVET, BLIND
-
2490605-502U1-00 PLUG, BLINDPLUG, BLIND
-
25F1S-U7228-00-00 COVER, INSPECTION 2COVER, INSPECTION 2
-
2690269-08801-00 RIVETRIVET
-
27F1B-6515A-01-00 HINGE ASSY.HINGE ASSY.
-
28F1B-6517D-00-00 ...HINGE, LID...HINGE, LID
-
29F1B-6518F-00-00 ...COVER , SPRING...COVER , SPRING
-
3090464-44001-00 ...CLAMP...CLAMP
-
31F1B-6515D-01-00 ...DAMPER 1...DAMPER 1
-
32F1B-6515J-00-00 ...SHAFT B...SHAFT B
-
3399080-06600-00 ...CIRCLIP, E-TYPE...CIRCLIP, E-TYPE
-
34F1B-6514U-00-00 ...STAY, DAMPER...STAY, DAMPER
-
35F1B-6515H-00-00 ...SHAFT A...SHAFT A
-
3690480-10006-00 ...GROMMET...GROMMET
-
3790387-07008-00 ...COLLAR...COLLAR
-
3890119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3990119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
40F1B-6518E-00-00 PLATE, HINGE LIDPLATE, HINGE LID
-
4190267-48020-00 RIVET, BLINDRIVET, BLIND
-
429572R-06300-00 NUT, NYLONNUT, NYLON
-
43F1X-6517C-00-00 LOCK, LIDLOCK, LID
-
4490119-06837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
