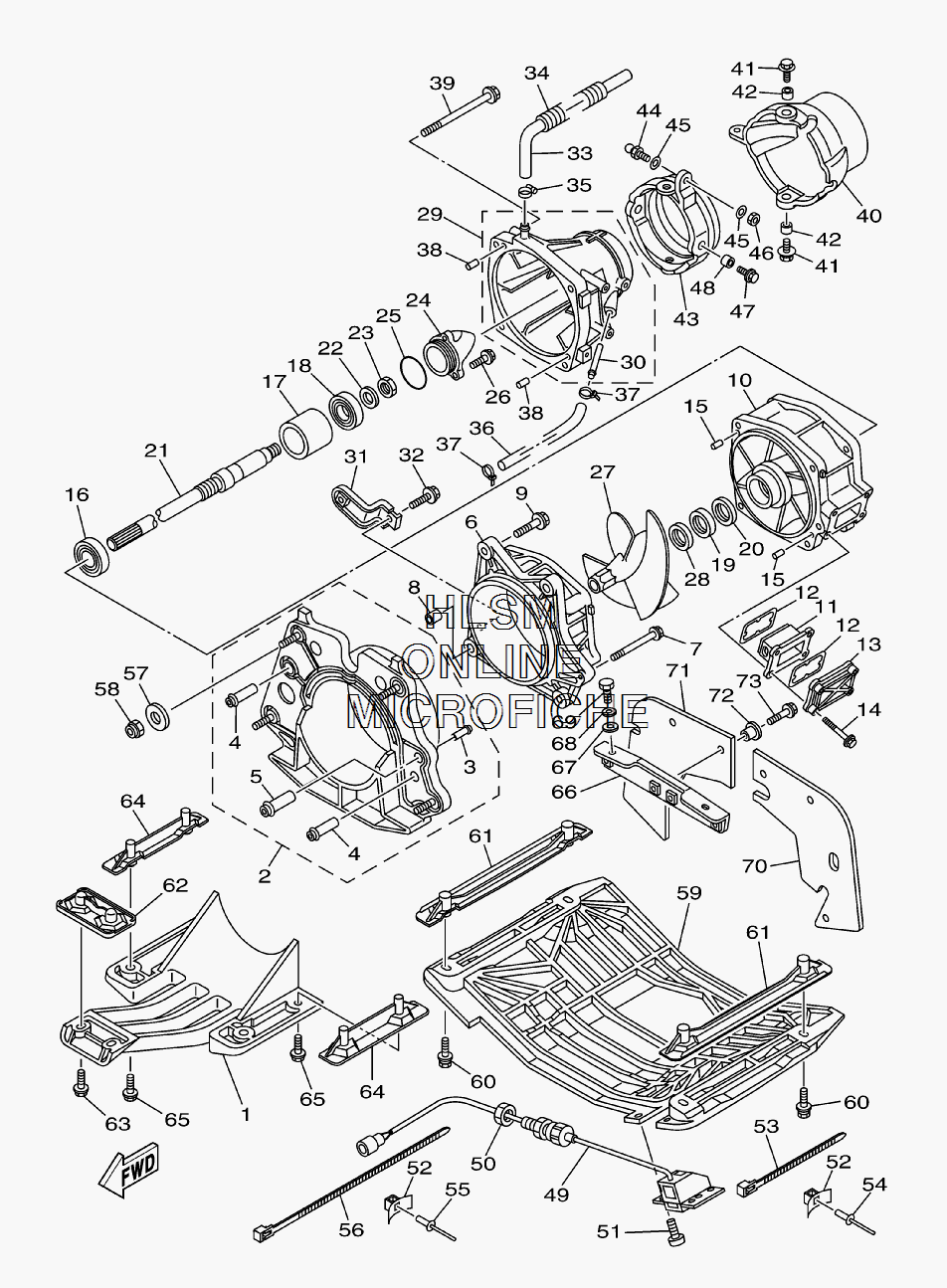

PROPULSION SYSTEM - EXTERNAL для Yamaha FX - 2008 года выпуска
-
№АртикулНазвание
-
16B6-R1333-00-94 SCREEN, INTAKESCREEN, INTAKE
-
26B6-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
365A-R1129-00-00 ...NIPPLE...NIPPLE
-
466V-51129-10-00 ...NIPPLE...NIPPLE
-
560E-51129-30-00 ...NIPPLE...NIPPLE
-
666V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
790119-06835-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
899590-14016-00 PIN, DOWELPIN, DOWEL
-
990119-10836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1066V-51315-00-94 DUCT, IMPELLERDUCT, IMPELLER
-
1166V-46882-00-00 FILTERFILTER
-
1266V-42414-00-00 O-RINGO-RING
-
1366V-45214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1490119-06800-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1593606-12019-00 PIN, DOWELPIN, DOWEL
-
1693306-205U0-00 BEARINGBEARING
-
1765V-45538-00-00 SPACER 1SPACER 1
-
1893306-304U1-00 BEARINGBEARING
-
1993101-28M66-00 OIL SEALOIL SEAL
-
2093101-28002-00 OIL SEALOIL SEAL
-
2168Y-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
229299R-16600-00 WASHERWASHER
-
239531P-16700-00 NUTNUT
-
2465A-R1326-10-00 CAPCAP
-
2593210-464A3-00 O-RINGO-RING
-
2690119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2768N-R1321-10-00 IMPELLERIMPELLER
-
2866V-R1348-10-00 SPACERSPACER
-
296B6-51318-00-94 NOZZLENOZZLE
-
3063M-51334-00-00 ...NIPPLE,HOSE...NIPPLE,HOSE
-
316B6-R1343-00-00 BRACKETBRACKET
-
3290119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390445-16M09-00 HOSE (L310)HOSE (L310)
-
3490446-24M54-00 HOSE (L260)HOSE (L260)
-
3590601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
3690445-14804-00 HOSE (L330)HOSE (L330)
-
3790465-11829-00 CLAMPCLAMP
-
3893606-12019-00 PIN, DOWELPIN, DOWEL
-
3990119-10837-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4066V-R1313-01-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
4190119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290387-08M06-00 COLLARCOLLAR
-
4360T-51190-00-94 RING, TRIMRING, TRIM
-
44GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4590201-068M4-00 WASHER, PLATEWASHER, PLATE
-
469538R-06700-00 NUTNUT
-
4790119-089UE-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4890387-08M06-00 COLLARCOLLAR
-
49F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
50EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
5190150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
5290600-917U4-00 CLAMP COMP.CLAMP COMP.
-
5390464-32801-00 CLAMPCLAMP
-
5490267-48802-00 RIVET, BLINDRIVET, BLIND
-
5590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
5690464-99801-00 CLAMPCLAMP
-
57F1S-U725E-00-00 WASHERWASHER
-
589572R-10300-00 NUT, FLANGENUT, FLANGE
-
59F1S-U273B-01-00 PLATE 2PLATE 2
-
6090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
61F1B-U8572-00-00 BRACKET 2BRACKET 2
-
62F1K-U8577-00-00 BRACKET, 3BRACKET, 3
-
6390119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
64F1G-U8571-00-00 BRACKET 1BRACKET 1
-
6590119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66F1B-67557-00-00 BRACKETBRACKET
-
6790430-12002-00 GASKETGASKET
-
6892990-12200-00 WASHER, PLAINWASHER, PLAIN
-
6990109-08041-00 BOLTBOLT
-
70F1X-U757E-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
71F1X-U757F-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
7290387-06080-00 COLLARCOLLAR
-
7390119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
