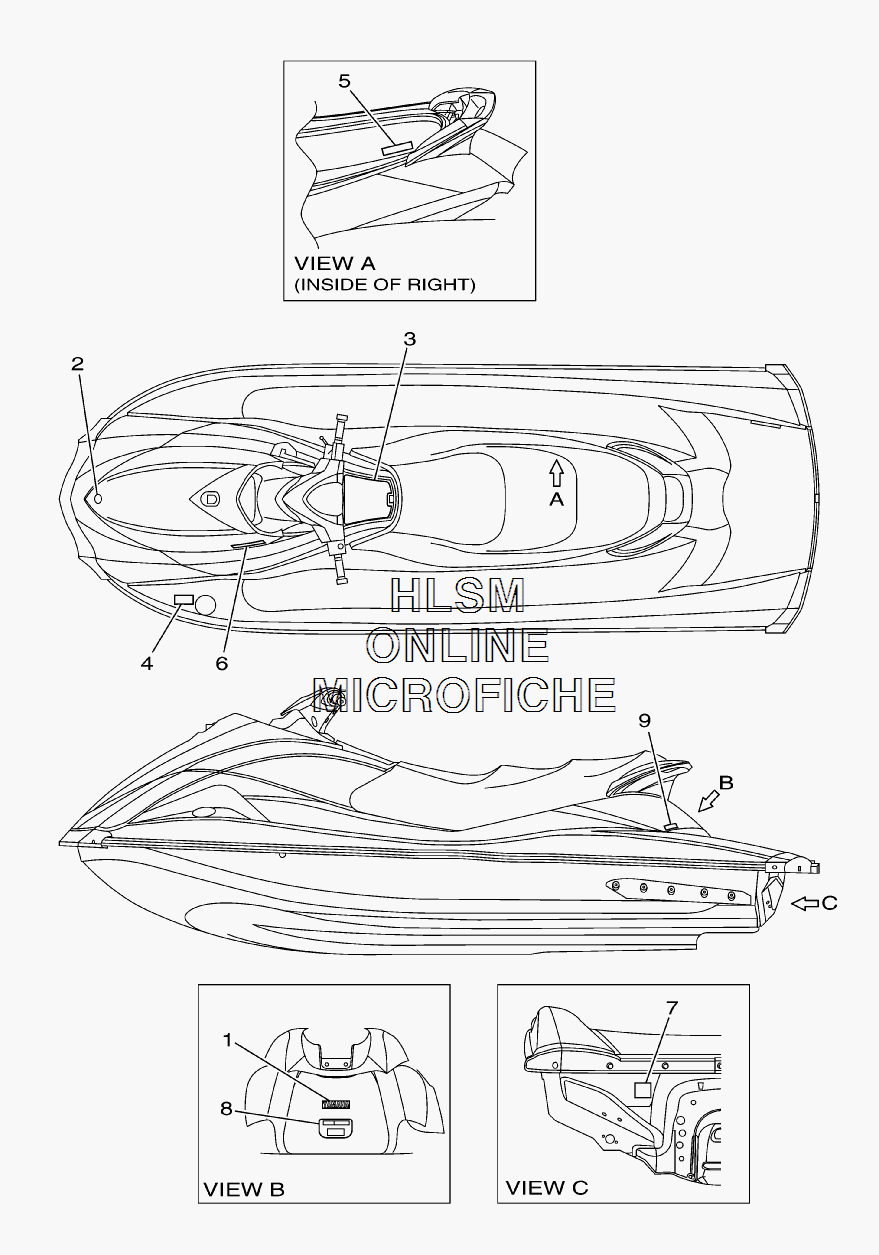

GRAPHICS - WARNING / CAUTION для Yamaha VX SPORT 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
1F1B-U411C-02-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2F1K-U411H-00-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
3F1K-U41B1-01-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
4F1B-U415B-02-00 LABEL, WARNING (FUEL)LABEL, WARNING (FUEL)
-
5F0V-U41DB-02-00 LABEL, WARNING BATTERYLABEL, WARNING BATTERY
-
6F0V-U41F5-01-00 LABEL, FIRE EXTINGUISHER 1LABEL, FIRE EXTINGUISHER 1
-
7GA9-U418F-00-00 LABEL, RIGHTINGLABEL, RIGHTING
-
7F1G-U418F-00-00 LABEL, RIGHTINGLABEL, RIGHTING
-
8F1B-U41E1-21-00 LABEL, SET 1LABEL, SET 1
-
9F0P-U41G1-01-00 LABEL, CAPACITYLABEL, CAPACITY
