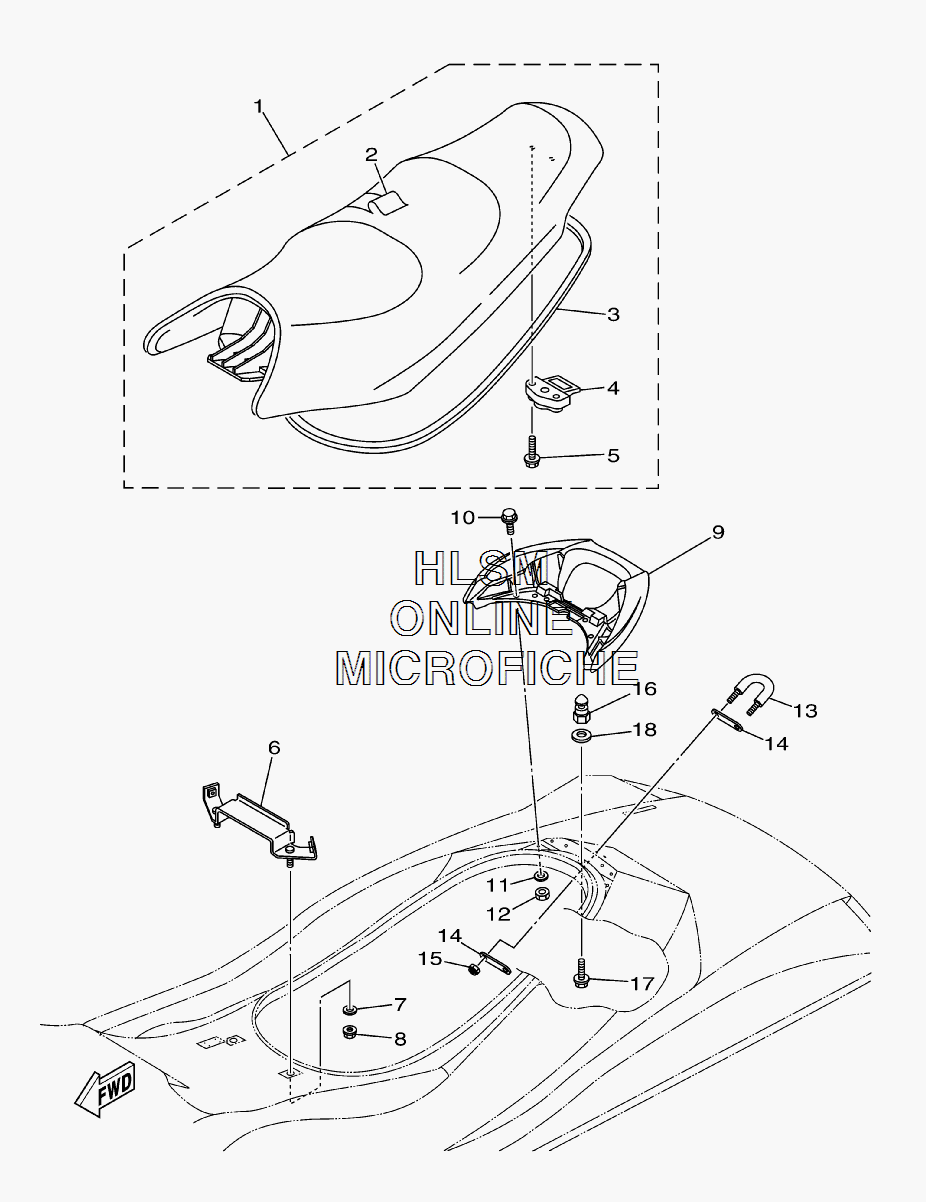

SEAT для Yamaha VX SPORT 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
1F1K-U371A-12-00 DOUBLE SEAT ASSY (SILVER)DOUBLE SEAT ASSY (SILVER)
-
1F1K-U371A-60-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F1K-U371B-10-00 ...COVER, SEAT 1 (SILVER)...COVER, SEAT 1 (SILVER)
-
2F1K-U371B-60-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F1K-U2664-01-00 ...PACKING...PACKING
-
4F1B-U3850-02-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F1K-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
89572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
9F1K-U271B-04-00 GRIP, HAND (GRAY)GRIP, HAND (GRAY)
-
1090119-06820-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
119299R-06200-00 WASHERWASHER
-
129572R-06300-00 NUT, NYLONNUT, NYLON
-
13F1K-61628-00-00 STERN EYESTERN EYE
-
14GP7-U4953-10-00 PLATE APLATE A
-
159572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
16F1K-U3774-00-00 PINPIN
-
1790119-10804-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
189299R-10200-00 WASHERWASHER
