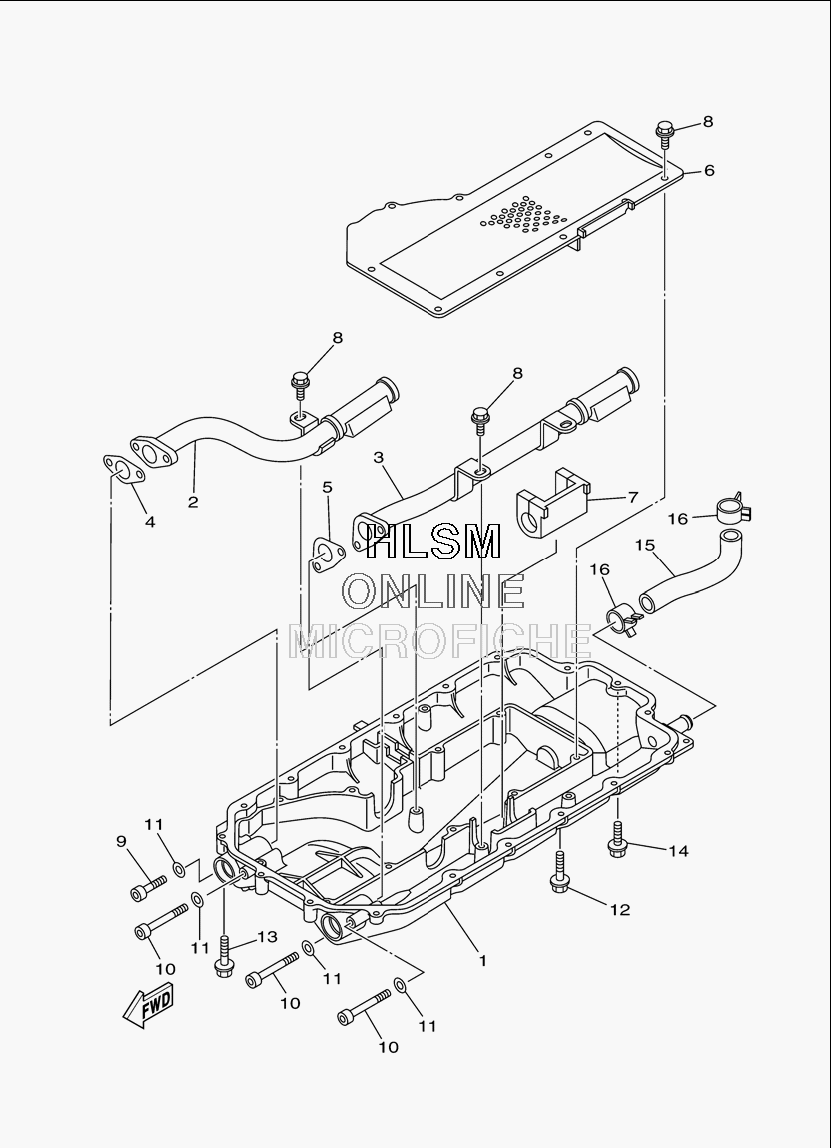

OIL PAN для Yamaha FX CRUISER HO - 2009 года выпуска
-
№АртикулНазвание
-
16S5-1310A-00-94 PAN, OILPAN, OIL
-
26S5-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
36S5-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
46S5-13476-00-00 GASKETGASKET
-
56S5-13477-00-00 GASKETGASKET
-
66S5-13317-00-00 PLATE, BAFFLEPLATE, BAFFLE
-
76S5-15486-00-00 GROMMETGROMMET
-
895817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
991314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1091314-06060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190201-06028-00 WASHER, PLATEWASHER, PLATE
-
1295024-06035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
1395024-06030-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
1495024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
156S5-11378-00-00 HOSE 2HOSE 2
-
1690467-200A0-00 CLIPCLIP
