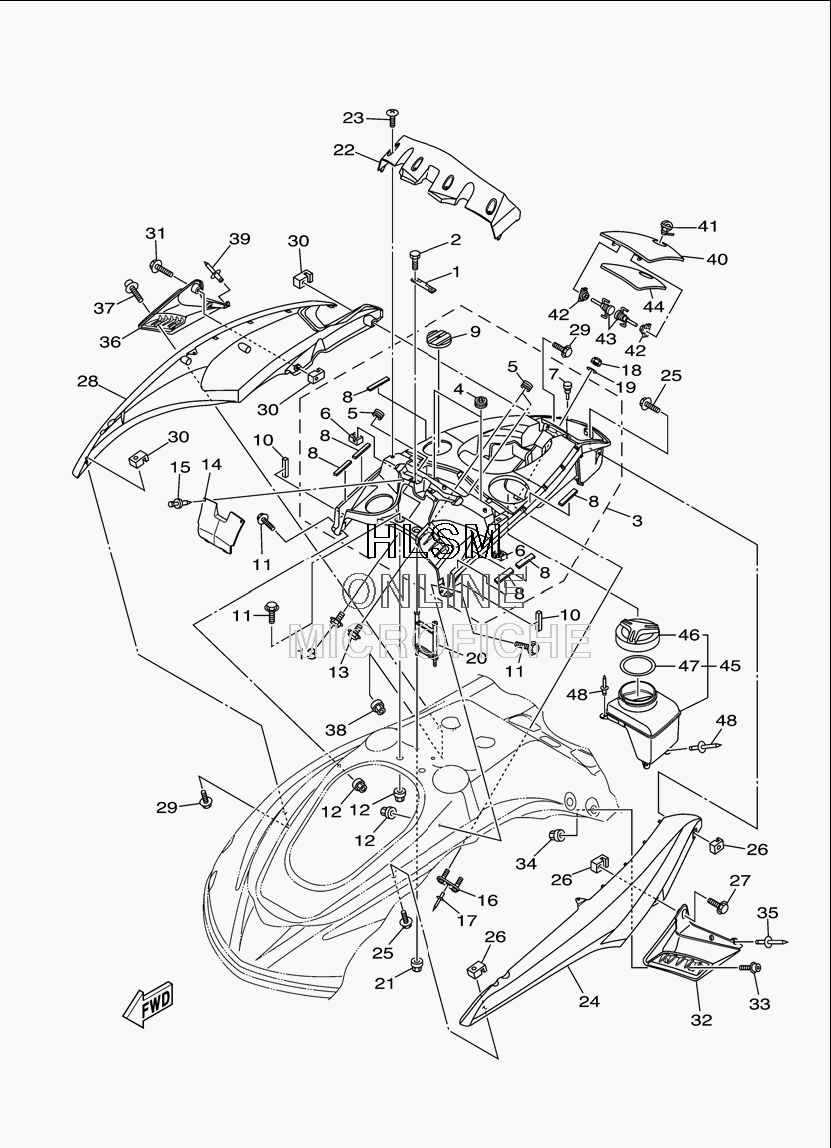

SIDE COVERS для Yamaha FX CRUISER HO - 2009 года выпуска
-
№АртикулНазвание
-
1F1W-U517F-00-00 HOOK,LID LOCKHOOK,LID LOCK
-
290101-05800-00 BOLTBOLT
-
3F1W-U5508-22-00 CENTER COVER ASSY.CENTER COVER ASSY.
-
4F1X-U828E-01-00 .DAMPER 1.DAMPER 1
-
590480-19800-00 .GROMMET.GROMMET
-
6F1X-U517E-01-00 NUTNUT
-
790605-502U2-00 .PLUG.PLUG
-
8F0X-U515E-01-00 .DAMPER 2.DAMPER 2
-
9F1X-U3844-01-00 .MAT.MAT
-
10F1W-U518D-00-00 PACKINGPACKING
-
1190119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390119-05803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14F1W-U555B-00-00 SEAL, COVER CENTERSEAL, COVER CENTER
-
15F1W-U2698-00-00 RIVETRIVET
-
16F1X-U5372-00-00 BRACKETBRACKET
-
1790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
189572R-06300-00 NUT, NYLONNUT, NYLON
-
199299R-06200-00 WASHERWASHER
-
20F1W-U555D-01-00 BRKT., COVER CENTER 1BRKT., COVER CENTER 1
-
2190185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
22F1W-U8262-10-P0 COVER METERCOVER METER
-
2390149-05903-00 SCREWSCREW
-
24F1W-U377B-10-P0 COVER,SIDE 1 (LIGHT GRAY METALLIC P)COVER,SIDE 1 (LIGHT GRAY METALLIC P)
-
2590119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26F1X-U517E-01-00 NUTNUT
-
2790119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28F1W-U377C-10-P0 COVER,SIDE 2 (LIGHT GRAY METALLIC P)COVER,SIDE 2 (LIGHT GRAY METALLIC P)
-
2990119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F1X-U517E-01-00 NUTNUT
-
3190119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
32F1W-U377F-01-00 ORNAMENT, SIDE LHORNAMENT, SIDE LH
-
3390110-06823-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590267-48807-00 RIVET, BLINDRIVET, BLIND
-
36F1W-U377G-01-00 ORNAMENT, SIDE RHORNAMENT, SIDE RH
-
3790110-06823-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3890185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3990267-48807-00 RIVET, BLINDRIVET, BLIND
-
40F1W-U517H-01-00 LID HATCHLID HATCH
-
41F1X-62875-00-00 LOCKLOCK
-
42F1B-60210-00-00 GEAR ASSYGEAR ASSY
-
43F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
44F1W-U519D-01-00 PACKING CASEPACKING CASE
-
45F1W-U591A-00-00 CASE,ASSY 1CASE,ASSY 1
-
46F1W-U591C-00-00 .CAP,CASE.CAP,CASE
-
47F1W-U591D-00-00 .PACKING,CASE.PACKING,CASE
-
4890267-489U6-00 RIVET, BLINDRIVET, BLIND
