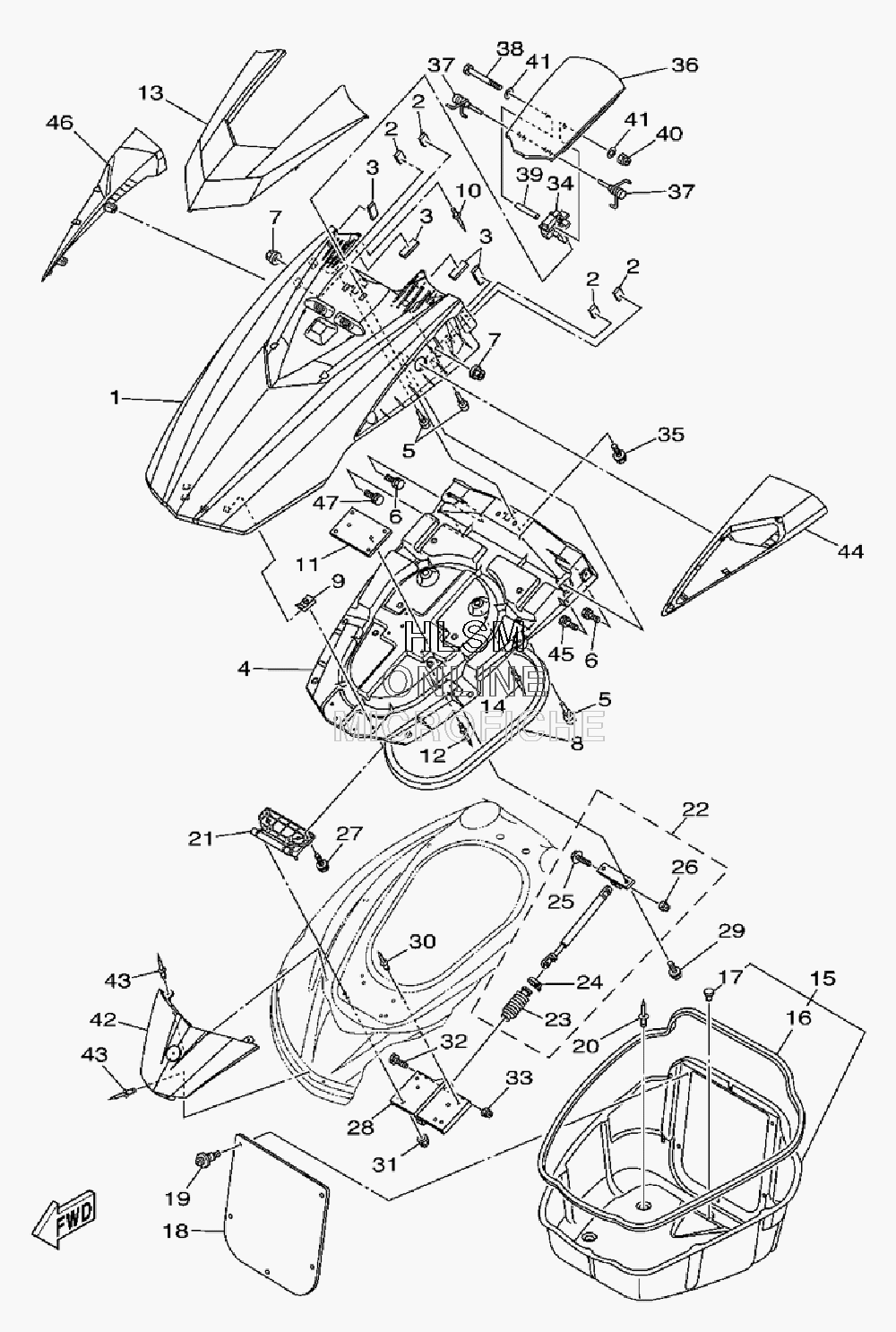

FRONT STORAGE W/ COVER для Yamaha FX CRUISER SHO - 2009 года выпуска
-
№АртикулНазвание
-
1F1W-U517B-01-P0 LID, ENGINE ROOM DRMR FOR REDLID, ENGINE ROOM DRMR FOR RED
-
1F1W-U517B-40-P0 LID, ENGINE ROOM NMH FOR GRAYLID, ENGINE ROOM NMH FOR GRAY
-
2F1W-U5136-00-00 STOPPER, HATCH 2STOPPER, HATCH 2
-
3F1K-U266B-00-00 PACKING 3PACKING 3
-
4F1W-U213B-01-00 COVER, VENTILATOR 1COVER, VENTILATOR 1
-
5F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
690119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790185-06014-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
8F1K-U2663-00-00 PACKING 1PACKING 1
-
990183-06902-00 NUT, SPRINGNUT, SPRING
-
1090267-48807-00 RIVET, BLINDRIVET, BLIND
-
11F1W-U5148-00-00 PLATE, HATCHPLATE, HATCH
-
1290267-48807-00 RIVET, BLINDRIVET, BLIND
-
13F1W-U515N-10-P0 VISOR NME FOR REDVISOR NME FOR RED
-
13F1W-U515N-20-P0 VISOR BMG FOR GRAYVISOR BMG FOR GRAY
-
1490267-48807-00 RIVET, BLINDRIVET, BLIND
-
15F1W-U475B-04-00 LOCKER,BOWLOCKER,BOW
-
16F1W-U266C-00-00 PACKING 4PACKING 4
-
1790605-502U1-00 PLUG, BLINDPLUG, BLIND
-
18F1W-U475F-01-00 PLATE, LOCKER BOWPLATE, LOCKER BOW
-
1990269-08801-00 RIVETRIVET
-
2090267-489UP-00 RIVET, BLINDRIVET, BLIND
-
21F1W-U517D-01-00 HINGE, LIDHINGE, LID
-
22F1W-6514S-00-00 DAMPER ASSYDAMPER ASSY
-
23F1W-6514T-00-00 COVER, DAMPERCOVER, DAMPER
-
241UA-82591-00-00 BANDBAND
-
2590109-06218-00 BOLTBOLT
-
2695720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28F1W-U518E-02-00 PLATE, HINGE LIDPLATE, HINGE LID
-
2990119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090267-48020-00 RIVET, BLINDRIVET, BLIND
-
319572R-06300-00 NUT, NYLONNUT, NYLON
-
3290109-06218-00 BOLTBOLT
-
339572R-06300-00 NUT, NYLONNUT, NYLON
-
34F1W-6517C-02-00 LOCK, LIDLOCK, LID
-
3590119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36F1W-U515P-01-00 VISOR, 2 FOR GRAYVISOR, 2 FOR GRAY
-
36F1W-U515P-30-00 VISOR, 2 FOR REDVISOR, 2 FOR RED
-
37F1W-6517R-00-00 PIN, HINGEPIN, HINGE
-
38F1W-U515H-00-00 SHAFT ASHAFT A
-
39F1W-U2693-00-00 PIPEPIPE
-
409572R-05300-00 NUT, FLANGENUT, FLANGE
-
419299R-05200-00 WASHERWASHER
-
42F1W-U513M-01-P0 COVER, FRONT DRMR FOR REDCOVER, FRONT DRMR FOR RED
-
42F1W-U513M-40-P0 COVER, FRONT NMH FOR GRAYCOVER, FRONT NMH FOR GRAY
-
4390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
44F1W-U590D-81-00 MIRROR ASSY. 1 FOR REDMIRROR ASSY. 1 FOR RED
-
44F1W-U590D-91-00 MIRROR ASSY. 1 FOR GRAYMIRROR ASSY. 1 FOR GRAY
-
4590119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46F1W-U590E-81-00 MIRROR ASSY. 2 FOR REDMIRROR ASSY. 2 FOR RED
-
46F1W-U590E-91-00 MIRROR ASSY. 2 FOR GRAYMIRROR ASSY. 2 FOR GRAY
-
4790119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
