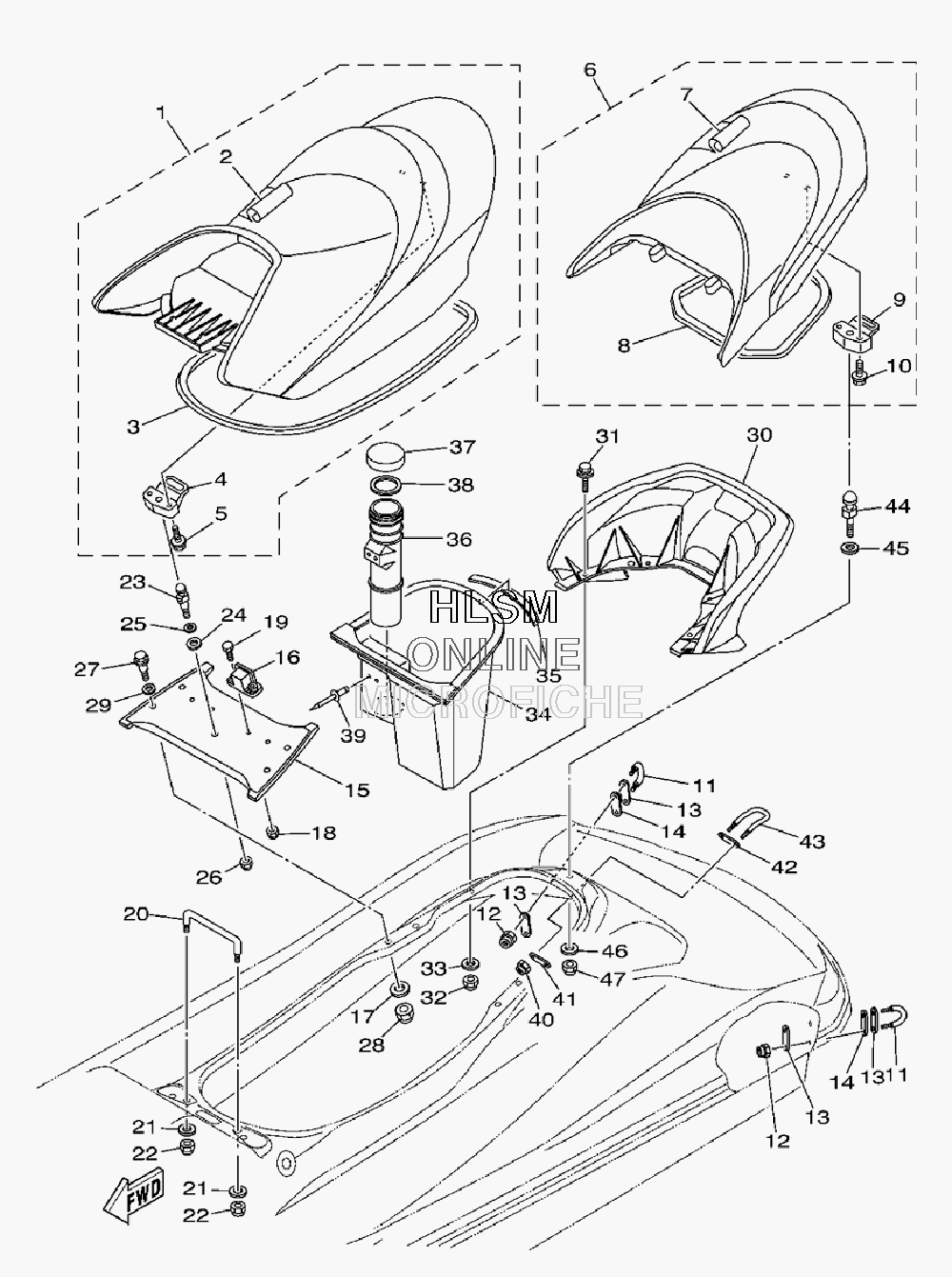

SEAT для Yamaha FX CRUISER SHO - 2009 года выпуска
-
№АртикулНазвание
-
1F1W-U371A-11-00 DOUBLE SEAT ASSY FOR GRAYDOUBLE SEAT ASSY FOR GRAY
-
1F1W-U371A-20-00 DOUBLE SEAT ASSY FOR REDDOUBLE SEAT ASSY FOR RED
-
2F1W-U371B-11-00 COVER, SEAT 1 FOR GRAYCOVER, SEAT 1 FOR GRAY
-
2F1W-U371B-20-00 COVER, SEAT 1 FOR REDCOVER, SEAT 1 FOR RED
-
3F1W-U2664-01-00 PACKINGPACKING
-
4F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
590119-069UP-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6F1W-U372A-11-00 SINGLE SEAT ASSY FOR GRAYSINGLE SEAT ASSY FOR GRAY
-
6F1W-U372A-20-00 SINGLE SEAT ASSY FOR REDSINGLE SEAT ASSY FOR RED
-
7F1W-U372B-10-00 COVER, SEAT FOR GRAYCOVER, SEAT FOR GRAY
-
7F1W-U372B-20-00 COVER, SEAT FOR REDCOVER, SEAT FOR RED
-
8F1W-U266D-00-00 PACKING 5PACKING 5
-
9F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1090119-069UP-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11F1K-61628-00-00 STERN EYESTERN EYE
-
129572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
13GP7-U4953-10-00 PLATE APLATE A
-
14F1B-U1653-01-00 PACKINGPACKING
-
15F1B-U8952-01-00 BEAM, DECK 1BEAM, DECK 1
-
16GU2-6378D-02-00 STAY, SEAT 2STAY, SEAT 2
-
179299R-08200-00 WASHERWASHER
-
189572R-06300-00 NUT, FLANGENUT, FLANGE
-
1990101-069U0-00 BOLTBOLT
-
20F0X-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
2190201-099U3-00 WASHER, PLATEWASHER, PLATE
-
229572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
23F1B-U3774-00-00 PINPIN
-
24F0X-6375E-00-00 PACKING 1PACKING 1
-
2592990-12200-00 WASHER, PLAINWASHER, PLAIN
-
269572R-10300-00 NUT, FLANGENUT, FLANGE
-
27F1B-U2624-00-00 BOLTBOLT
-
289572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
299299R-10200-00 WASHERWASHER
-
30F1W-U271B-00-00 GRIP, HANDGRIP, HAND
-
3190119-08942-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
329572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
339299R-08200-00 WASHERWASHER
-
34F1B-U4742-01-00 LOCKER, UNDER 2LOCKER, UNDER 2
-
35F0X-U266E-01-00 PACKING, 6PACKING, 6
-
36F0X-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
37EW2-U5912-01-00 CAP, CASECAP, CASE
-
38EW2-U5913-01-00 PACKING, CASEPACKING, CASE
-
3990267-489UP-00 RIVET, BLINDRIVET, BLIND
-
409572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
41GP7-U4953-10-00 PLATE APLATE A
-
42GP7-U4953-10-00 PLATE APLATE A
-
43F1B-U1629-00-00 SKI TOWSSKI TOWS
-
44GH1-U3774-00-00 PINPIN
-
4590201-109U6-00 WASHER, PLATEWASHER, PLATE
-
469299R-10200-00 WASHERWASHER
-
479572R-10300-00 NUT, FLANGENUT, FLANGE
