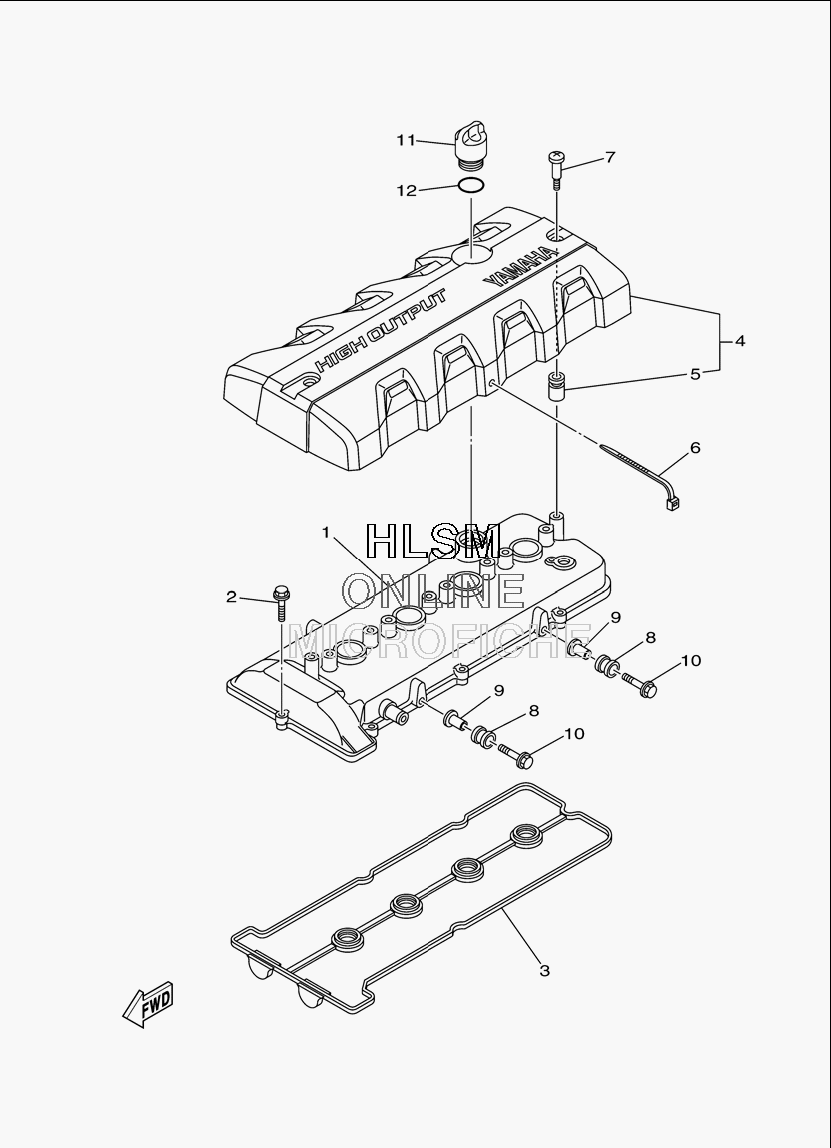

CYLINDER HEAD COVER ASSY. для Yamaha FX HO - 2009 года выпуска
-
№АртикулНазвание
-
16BH-11191-00-94 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
290105-06028-00 BOLT, FLANGEBOLT, FLANGE
-
36BH-11193-00-00 .GASKET, HEAD COVER 1.GASKET, HEAD COVER 1
-
46BH-E110M-00-00 COVER ASSY 1COVER ASSY 1
-
56S5-E1328-00-00 .GROMMET, ANODE.GROMMET, ANODE
-
690464-40825-00 CLAMPCLAMP
-
76S5-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
861N-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
990387-06119-00 COLLARCOLLAR
-
1095824-06025-00 BOLT, FLANGEBOLT, FLANGE
-
116S5-15363-00-00 PLUG, OILPLUG, OIL
-
1293210-24M79-00 .O-RING.O-RING
