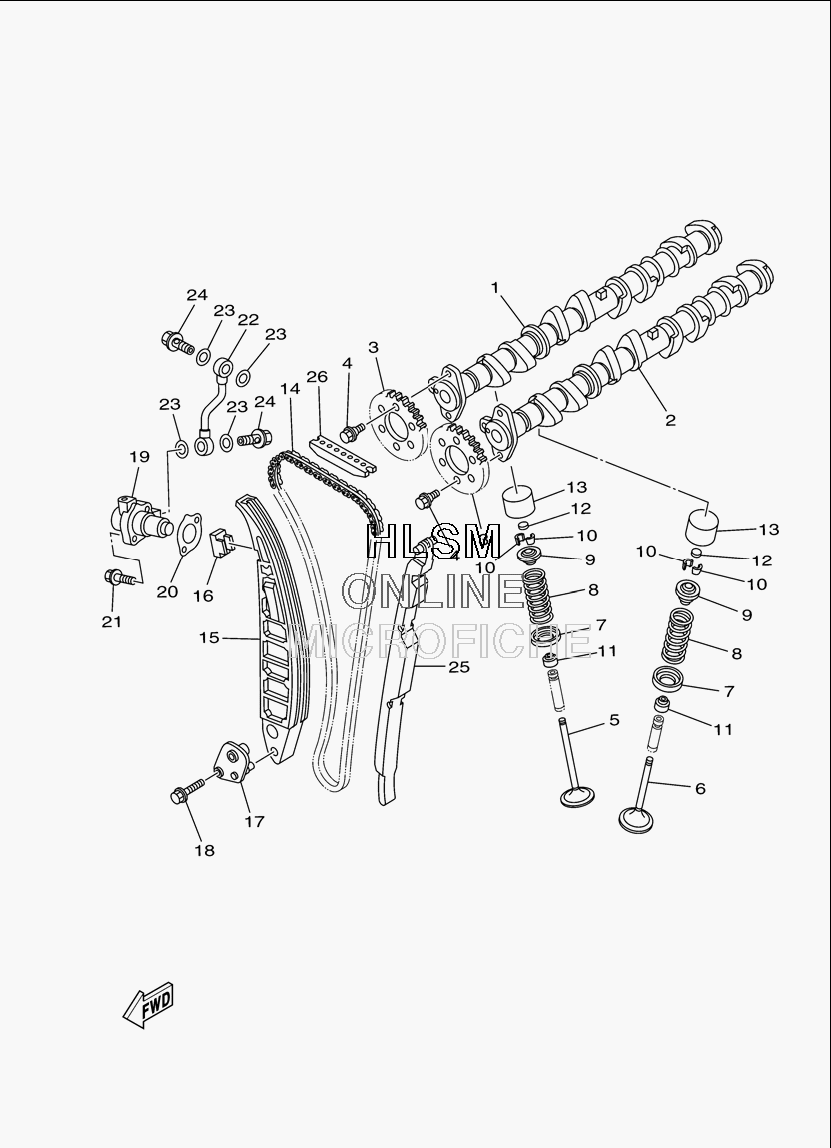

VALVE W/ CAM SHAFTS AND CHAIN для Yamaha FZS - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
26S5-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
36D3-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
56S5-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
66S5-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
76S5-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
86S5-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
96S5-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
103LD-12118-00-00 COTTER, VALVECOTTER, VALVE
-
1151Y-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
123LD-12168-00-00 PAD,ADJUSTING 1.20PAD,ADJUSTING 1.20
-
123LD-12169-31-00 PAD,ADJUSTING 1.95PAD,ADJUSTING 1.95
-
123LD-12168-40-00 PAD,ADJUSTING 1.30PAD,ADJUSTING 1.30
-
123LD-12168-60-00 PAD,ADJUSTING 1.35PAD,ADJUSTING 1.35
-
123LD-12168-80-00 PAD,ADJUSTING 1.40PAD,ADJUSTING 1.40
-
123LD-12168-A0-00 PAD,ADJUSTING 1.45PAD,ADJUSTING 1.45
-
123LD-12168-F0-00 PAD,ADJUSTING 1.50PAD,ADJUSTING 1.50
-
123LD-12169-50-00 PAD, ADJUSTING 2.00PAD, ADJUSTING 2.00
-
123LD-12169-70-00 PAD,ADJUSTING 2.05PAD,ADJUSTING 2.05
-
123LD-12169-90-00 PAD,ADJUSTING 2.10PAD,ADJUSTING 2.10
-
123LD-12169-E0-00 PAD,ADJUSTING 2.15PAD,ADJUSTING 2.15
-
123LD-12169-G0-00 PAD,ADJUSTING 2.20PAD,ADJUSTING 2.20
-
123LD-12169-J0-00 PAD,ADJUSTING 2.25PAD,ADJUSTING 2.25
-
123LD-12169-L0-00 PAD,ADJUSTING 2.30PAD,ADJUSTING 2.30
-
123LD-12168-H1-00 PAD,ADJUSTING 1.55PAD,ADJUSTING 1.55
-
123LD-12168-K1-00 PAD,ADJUSTING 1.60PAD,ADJUSTING 1.60
-
123LD-12168-M1-00 PAD,ADJUSTING 1.65PAD,ADJUSTING 1.65
-
123LD-12168-R1-00 PAD,ADJUSTING 1.70PAD,ADJUSTING 1.70
-
123LD-12168-U1-00 PAD,ADJUSTING 1.75PAD,ADJUSTING 1.75
-
123LD-12168-W1-00 PAD,ADJUSTING 1.80PAD,ADJUSTING 1.80
-
123LD-12168-Y1-00 PAD,ADJUSTING 1.85PAD,ADJUSTING 1.85
-
123LD-12169-11-00 PAD,ADJUSTING 1.90PAD,ADJUSTING 1.90
-
123LD-12168-20-00 PAD,ADJUSTING 1.25PAD,ADJUSTING 1.25
-
136S5-12153-00-00 LIFTER, VALVELIFTER, VALVE
-
1494591-66152-00 CHAINCHAIN
-
156S5-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
166S5-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
176S5-12279-00-00 PLATEPLATE
-
1895814-06030-00 BOLT, FLANGEBOLT, FLANGE
-
196S5-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
206S5-121E2-00-00 .GASKET.GASKET
-
2191380-06025-00 BOLTBOLT
-
226S5-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
2390430-10007-00 .GASKET.GASKET
-
2490401-10040-00 BOLT, UNIONBOLT, UNION
-
256S5-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
266S5-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
