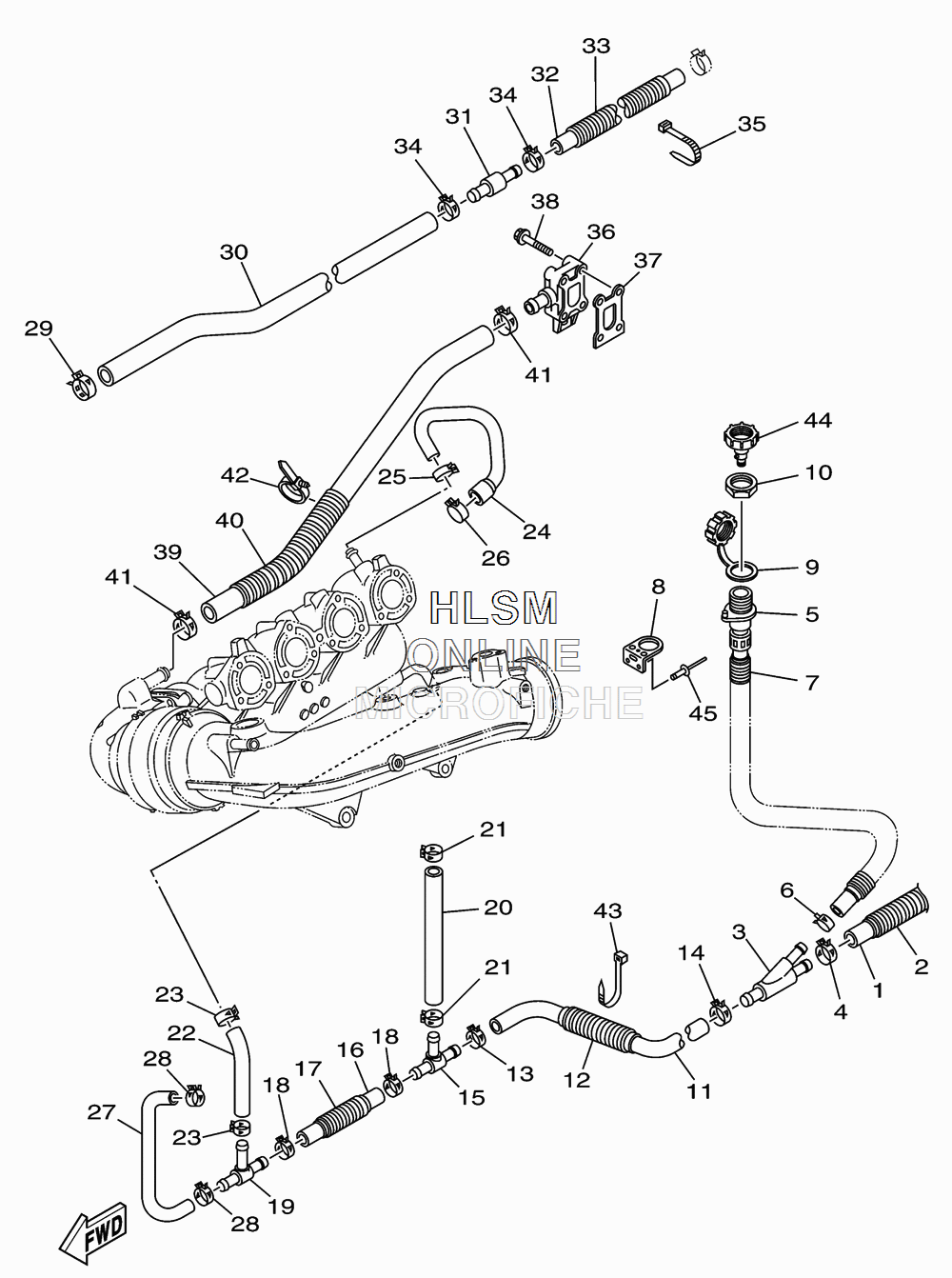

EXHAUST - HOSES для Yamaha VX SPORT 3-PASS - 2010 года выпуска
-
№АртикулНазвание
-
190445-21805-00 HOSE (L300)HOSE (L300)
-
290447-22004-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
360E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
490467-200A0-00 CLIPCLIP
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A0-00 CLIPCLIP
-
790447-19801-00 TUBE(L485)TUBE(L485)
-
860E-12443-00-00 STAYSTAY
-
9682-84385-01-00 CAP,1CAP,1
-
10EU0-61652-00-00 NUTNUT
-
116BU-1243A-00-00 HOSE 1HOSE 1
-
1290447-22003-00 HOSE, WITH SPRING (L300)HOSE, WITH SPRING (L300)
-
1390467-200A0-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1560E-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
166D3-1243E-10-00 HOSE 2HOSE 2
-
1790447-22001-00 HOSE, WITH SPRING (L100)HOSE, WITH SPRING (L100)
-
1890467-200A0-00 CLIPCLIP
-
196D3-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
206D3-1244H-10-00 HOSE 5HOSE 5
-
2190467-160A0-00 CLIPCLIP
-
2290445-18M03-00 HOSE (L108)HOSE (L108)
-
2390467-160A0-00 CLIPCLIP
-
246D3-12577-10-00 HOSE 2HOSE 2
-
2590467-170A0-00 CLIPCLIP
-
2690467-200A0-00 CLIPCLIP
-
276D3-1244G-10-00 HOSE, 4HOSE, 4
-
2890467-160A0-00 CLIPCLIP
-
2990467-210A0-00 CLIPCLIP
-
3090445-22005-00 HOSE (L340)HOSE (L340)
-
316BU-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
3290445-22006-00 HOSE (L800)HOSE (L800)
-
3390447-25003-00 TUBE (L650)TUBE (L650)
-
3490467-210A0-00 CLIPCLIP
-
3590464-35132-00 CLAMPCLAMP
-
366D3-12446-00-00 JOINTJOINT
-
3760E-12435-00-00 GASKETGASKET
-
3890105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
3990445-21004-00 HOSE (L530)HOSE (L530)
-
4090447-22005-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
4190467-200A0-00 CLIPCLIP
-
4290464-31001-00 CLAMPCLAMP
-
4390464-35132-00 CLAMPCLAMP
-
4467X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
4590267-489U1-00 RIVET, BLINDRIVET, BLIND
