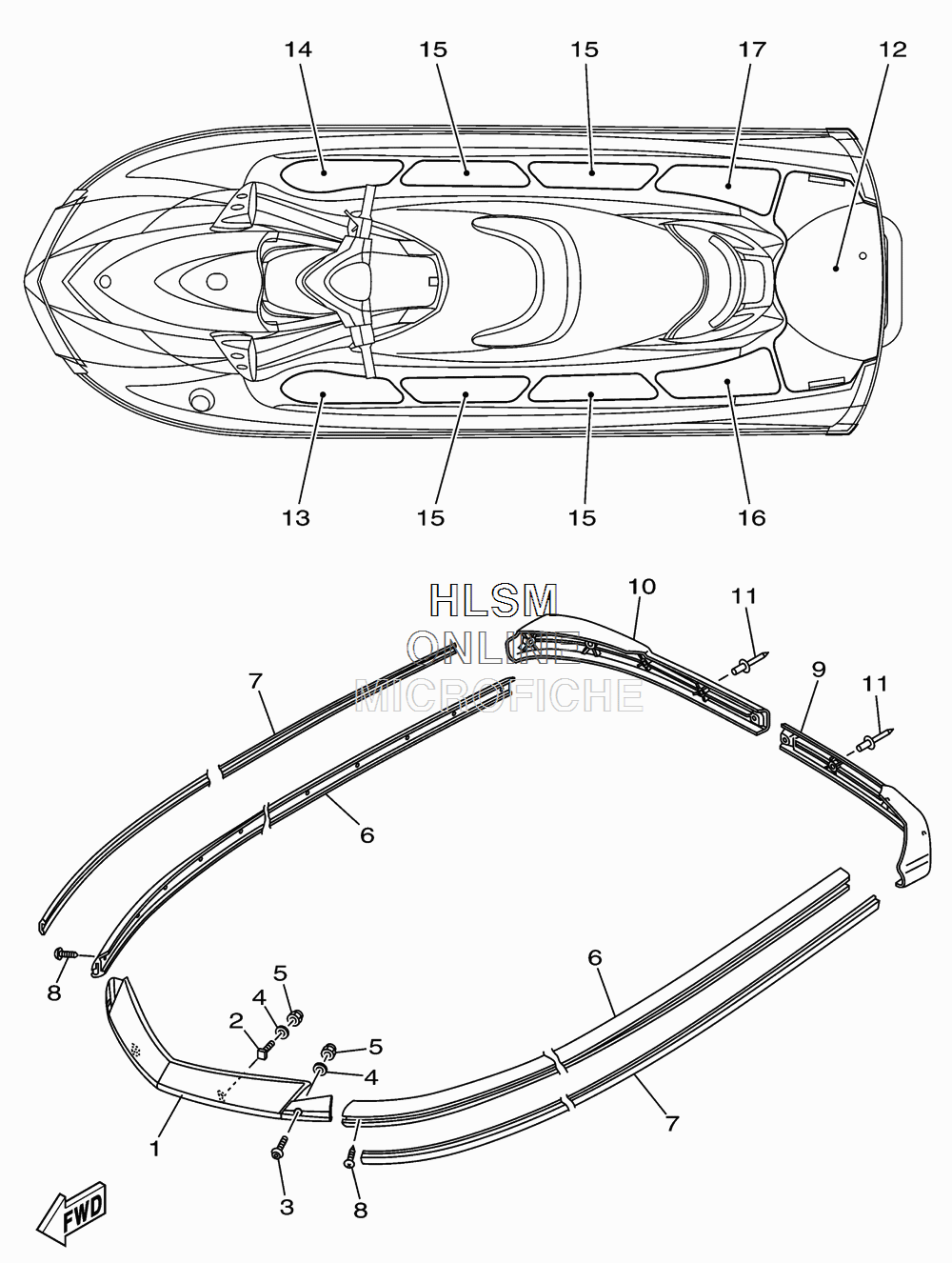

HULL - GUNWALE - MAT для Yamaha VX SPORT 3-PASS - 2010 года выпуска`
-
№АртикулНазвание
-
1F2N-U2511-01-00 GUNWALE, BOWGUNWALE, BOW
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
49299R-06200-00 WASHERWASHER
-
59572R-06300-00 NUT, NYLONNUT, NYLON
-
6F1K-U2512-03-00 GUNWALE, SIDE (GREY)GUNWALE, SIDE (GREY)
-
7F1K-U2519-30-00 INNER,GUNWALEINNER,GUNWALE
-
890169-059U1-00 SCREW,TAPPINGSCREW,TAPPING
-
9F1K-U251D-01-00 GUNWALE, STERN 1 (GREY)GUNWALE, STERN 1 (GREY)
-
10F1K-U251E-01-00 GUNWALE, STERN 2 (GREY)GUNWALE, STERN 2 (GREY)
-
1190267-48963-00 RIVET, BLINDRIVET, BLIND
-
12F2N-U3581-00-00 MAT, UPPERMAT, UPPER
-
13F2N-U351H-00-00 MAT, STEP 1MAT, STEP 1
-
14F2N-U351J-00-00 MAT, STEP 2MAT, STEP 2
-
15F2N-U351K-00-00 MAT, STEP 3MAT, STEP 3
-
16F2N-U351M-00-00 MAT, STEP 4MAT, STEP 4
-
17F2N-U351N-00-00 MAT, STEP 5MAT, STEP 5
