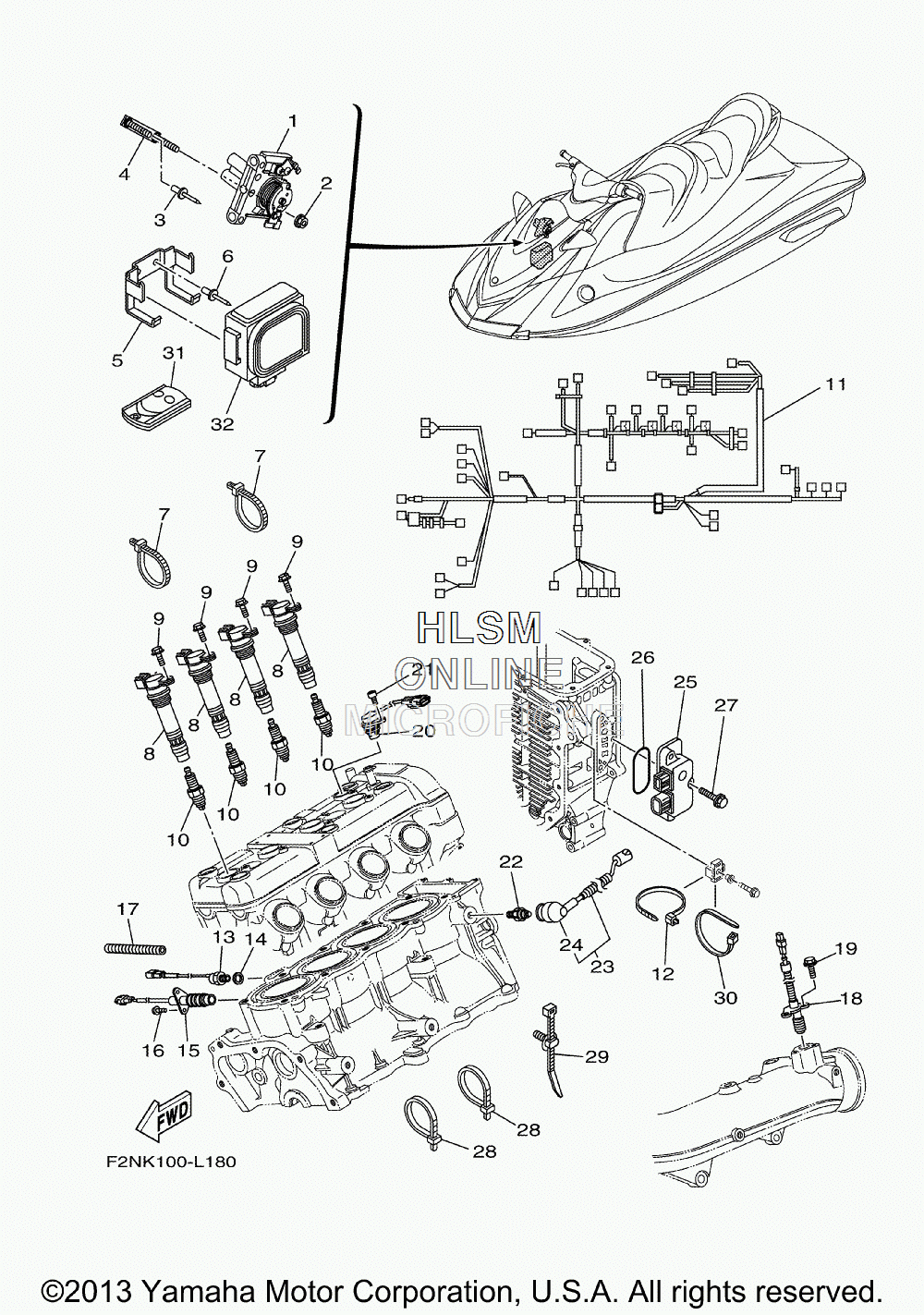

ELECTRICAL 2 для Yamaha WAVERUNNER VX CRUISER [VX1100AL] - 2012 года выпуска
-
№АртикулНазвание
-
16D3-14305-21-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
295780-08300-00 NUT, FLANGENUT, FLANGE
-
390267-489U1-00 RIVET,BLINDRIVET,BLIND
-
4F1W-U7254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
5F1W-U826C-00-00 BRACKETBRACKET
-
690267-489U9-00 RIVET, BLINDRIVET, BLIND
-
790464-35132-00 CLAMPCLAMP
-
86D3-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
995880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
10CR9-EB000-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
116BU-8259L-C0-00 WIRE HARNESS ASSY 1 (PID F2N-820501 & UP)WIRE HARNESS ASSY 1 (PID F2N-820501 & UP)
-
116BU-8259L-B0-00 WIRE HARNESS ASSY 1 (PID F2N-819901 - F2N-820500)WIRE HARNESS ASSY 1 (PID F2N-819901 - F2N-820500)
-
1290465-13M24-00 CLAMPCLAMP
-
1361A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1492990-10600-00 WASHER, PLATEWASHER, PLATE
-
1560E-82560-A1-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1697595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790446-14M23-00 HOSE (L180)HOSE (L180)
-
186D3-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1997595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
206D3-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2191380-06016-00 BOLTBOLT
-
2268V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
2360E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2460E-82532-00-00 ...CAP...CAP
-
256D3-8273J-01-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2693210-60ME8-00 O-RINGO-RING
-
2790119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890465-13M18-00 CLAMPCLAMP
-
2990464-45002-00 CLAMPCLAMP
-
3090465-13152-00 CLAMPCLAMP
-
316B6-86261-00-00 TRANSMITTER COMPTRANSMITTER COMP
-
326B6-86265-00-00 RECIVER COMPRECIVER COMP
