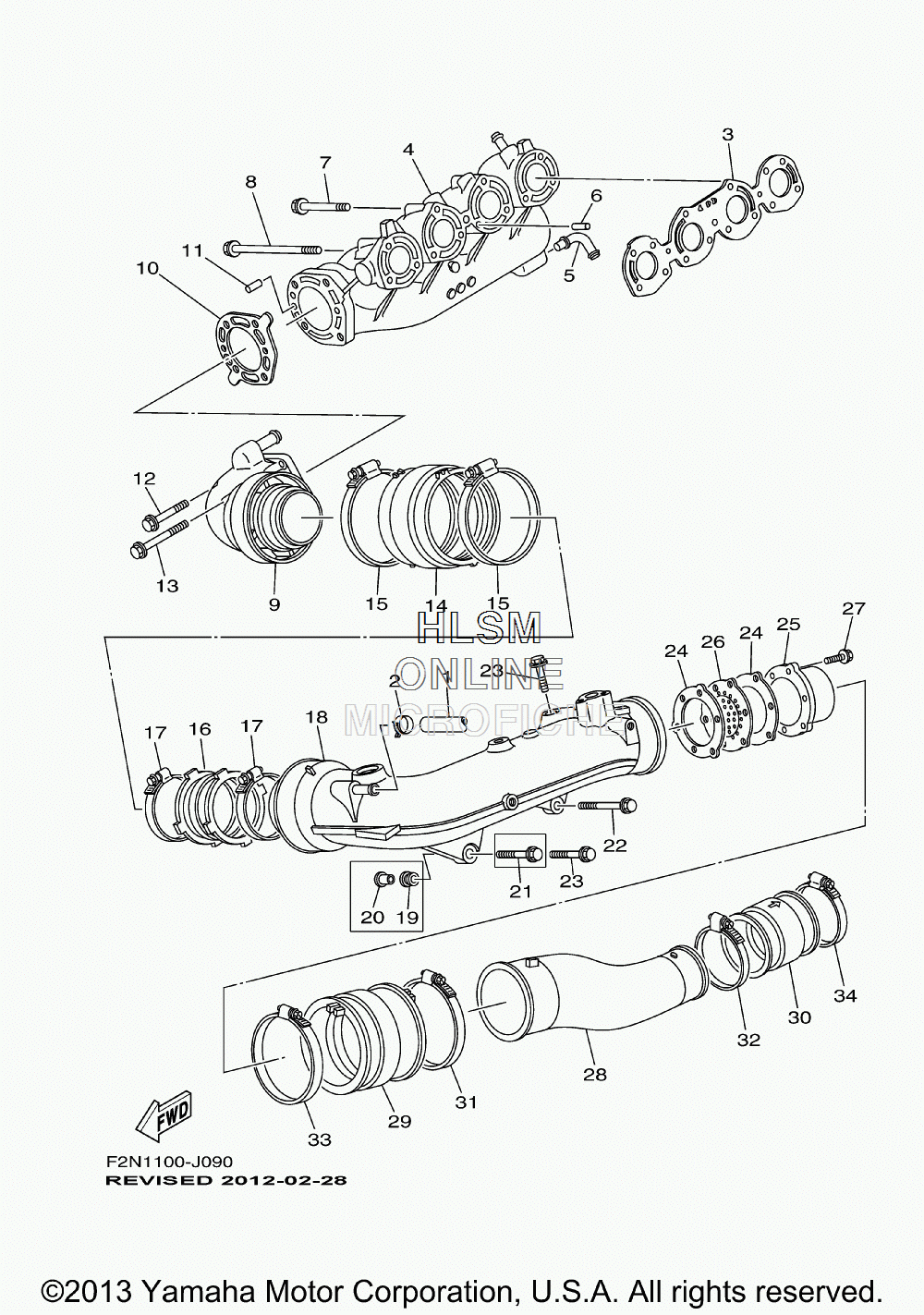

EXHAUST SYSTEM для Yamaha WAVERUNNER VX CRUISER [VX1100AL] - 2012 года выпуска
-
№АртикулНазвание
-
190445-16005-00 HOSE (L870) (PID F2N-819901 - F2N-820500)HOSE (L870) (PID F2N-819901 - F2N-820500)
-
16BU-1244G-10-00 HOSE, 4 (PID F2N-820501 & UP)HOSE, 4 (PID F2N-820501 & UP)
-
290467-160A0-00 CLIPCLIP
-
36D3-14613-00-00 GASKET, EXHAUST PIPE (PID F2N-819901 - F2N-820500)GASKET, EXHAUST PIPE (PID F2N-819901 - F2N-820500)
-
36D3-14613-10-00 GASKET, EXHAUST PIPE (PID F2N-820501 & UP)GASKET, EXHAUST PIPE (PID F2N-820501 & UP)
-
46D3-14711-10-00 MUFFLER 1 (PID F2N-820501 & UP)MUFFLER 1 (PID F2N-820501 & UP)
-
46D3-14711-00-94 MUFFLER 1 (PID F2N-819901 - F2N-820500)MUFFLER 1 (PID F2N-819901 - F2N-820500)
-
560E-11372-10-00 NIPPLE, HOSENIPPLE, HOSE
-
693608-16M16-00 PIN, DOWELPIN, DOWEL
-
790119-08036-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890119-08075-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
96D3-14712-00-94 RING, JOINTRING, JOINT
-
106D3-14739-01-00 GASKET, MUFFLER DAMPER 1 (PID F2N-819901 - F2N-820500)GASKET, MUFFLER DAMPER 1 (PID F2N-819901 - F2N-820500)
-
106D3-14739-10-00 GASKET, MUFFLER DAMPER 1 (PID F2N-820501 & UP)GASKET, MUFFLER DAMPER 1 (PID F2N-820501 & UP)
-
1193606-12019-00 PIN, DOWELPIN, DOWEL
-
1290119-08036-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08031-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146D3-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
1590450-99005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
166D3-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
1790450-90001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
186D3-14721-00-94 MUFFLER 2 (PID F2N-819901 - F2N-820500)MUFFLER 2 (PID F2N-819901 - F2N-820500)
-
186D3-14721-10-00 MUFFLER 2 (PID F2N-820501 & UP)MUFFLER 2 (PID F2N-820501 & UP)
-
1990480-21M63-00 GROMMET (PID F2N-819901 - F2N-820500)GROMMET (PID F2N-819901 - F2N-820500)
-
2090387-11002-00 COLLAR (PID F2N-819901 - F2N-820500)COLLAR (PID F2N-819901 - F2N-820500)
-
2190119-10011-00 BOLT, WITH WASHER (PID F2N-819901 - F2N-820500)BOLT, WITH WASHER (PID F2N-819901 - F2N-820500)
-
2290119-10017-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390119-10013-00 BOLT, WITH WASHER (QTY. 1 FOR PID F2N-819901 - F2N-820500)BOLT, WITH WASHER (QTY. 1 FOR PID F2N-819901 - F2N-820500)
-
2460E-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2560E-14784-00-94 PIPE, TAILPIPE, TAIL
-
266D3-1469W-10-00 PLATE, SILENCER 6 (PID F2N-820501 & UP)PLATE, SILENCER 6 (PID F2N-820501 & UP)
-
266D3-1469W-00-00 PLATE, SILENCER 6 (PID F2N-819901 - F2N-820500)PLATE, SILENCER 6 (PID F2N-819901 - F2N-820500)
-
2790105-06790-00 BOLT, FLANGEBOLT, FLANGE
-
286BU-14752-00-94 PIPE, OUTLETPIPE, OUTLET
-
296BU-1475E-00-00 PIPE 2 (PID F2N-820501 & UP)PIPE 2 (PID F2N-820501 & UP)
-
296B6-1475E-00-00 PIPE 2 (PID F2N-819901 - F2N-820500)PIPE 2 (PID F2N-819901 - F2N-820500)
-
306BU-1475F-00-00 PIPE 3 (PID F2N-820501 & UP)PIPE 3 (PID F2N-820501 & UP)
-
306D3-1475F-00-00 PIPE 3 (PID F2N-819901 - F2N-820500)PIPE 3 (PID F2N-819901 - F2N-820500)
-
3190450-99004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3290450-94001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3390450-99004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490450-94001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
