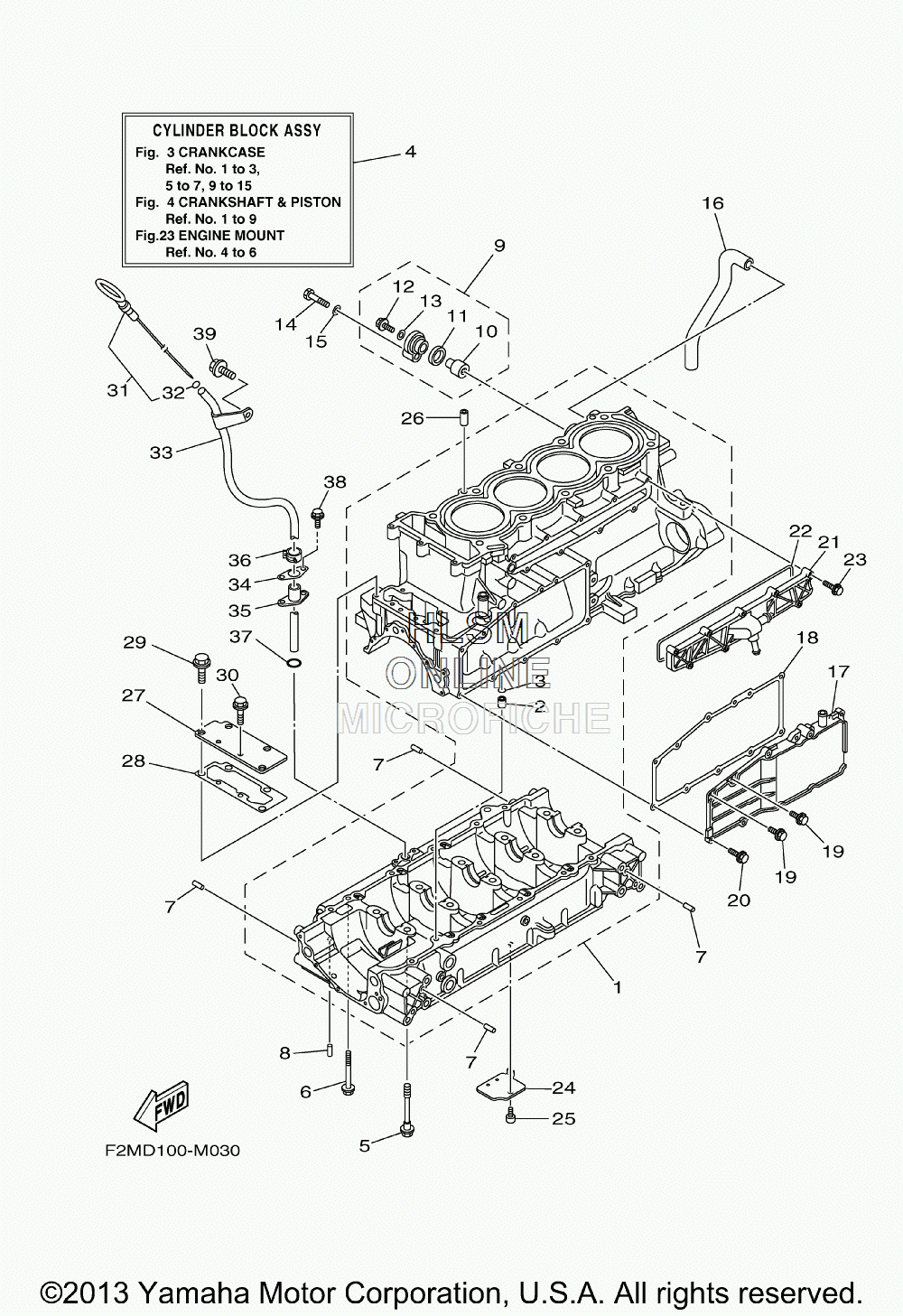

CRANKCASE для Yamaha WAVERUNNER FX HO [FB1800M] - 2013 года выпуска
-
№АртикулНазвание
-
16CR-15100-10-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
393210-11453-00 ...O-RING...O-RING
-
46CR-W009B-10-94 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
590105-10071-00 BOLT, FLANGEBOLT, FLANGE
-
695814-06070-00 BOLT, FLANGEBOLT, FLANGE
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
893604-10M03-00 PIN, DOWELPIN, DOWEL
-
969J-11301-10-00 ANODE COVER ASSYANODE COVER ASSY
-
1068V-11325-02-00 ...ANODE...ANODE
-
1167F-11328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
1290105-06M07-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
1390430-06M03-00 ...GASKET...GASKET
-
1497095-08040-00 BOLTBOLT
-
1592995-08600-00 WASHERWASHER
-
166S5-11377-00-00 HOSEHOSE
-
176S5-1131M-10-8P COVERCOVER
-
186BH-13557-00-00 GASKETGASKET
-
1995024-06014-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
2095024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
216CS-12469-A0-00 JOINT 1JOINT 1
-
226CS-12517-00-00 GASKET, WATER INLETGASKET, WATER INLET
-
2395814-06035-00 BOLT, FLANGEBOLT, FLANGE
-
246S5-13337-10-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
2590110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2699530-10114-00 PIN, DOWELPIN, DOWEL
-
276BH-1131C-00-00 COVER, JOINTCOVER, JOINT
-
286BH-1131B-00-00 GASKET, COVERGASKET, COVER
-
2995814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3095814-06016-00 BOLT, FLANGEBOLT, FLANGE
-
316CS-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
3293210-06632-00 ...O-RING...O-RING
-
336CS-8572F-00-00 PIPE, OIL LEVELPIPE, OIL LEVEL
-
346BH-1319K-00-00 PLATEPLATE
-
356CS-85516-00-00 SPACERSPACER
-
3690467-150A1-00 CLIPCLIP
-
3793210-12016-00 O-RINGO-RING
-
3890109-06268-00 BOLTBOLT
-
3990105-08021-00 BOLT WASHER BASEDBOLT WASHER BASED
