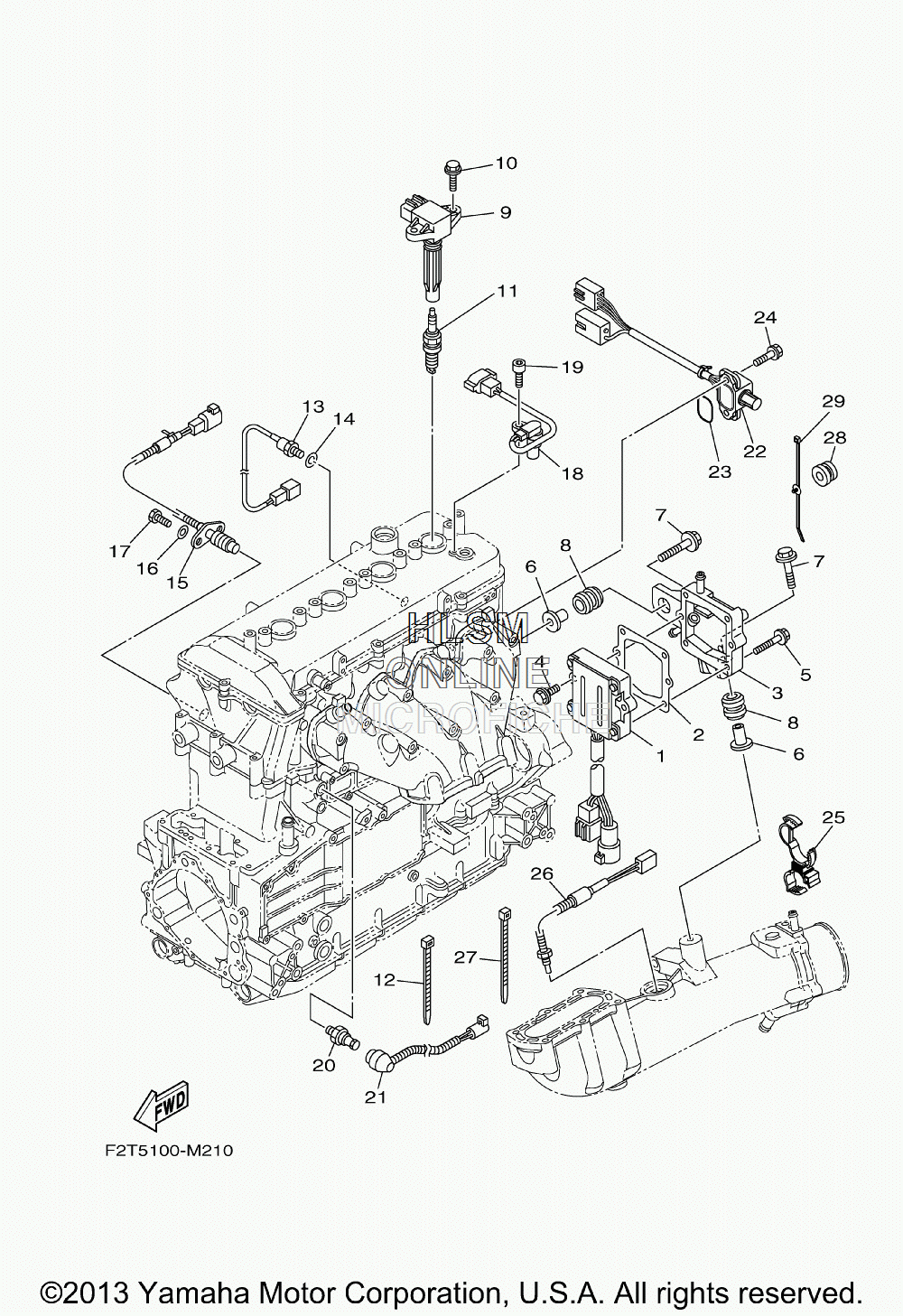

ELECTRICAL 2 для Yamaha WAVERUNNER FX HO [FB1800M] - 2013 года выпуска
-
№АртикулНазвание
-
16S5-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
26S5-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
36S5-81972-01-94 COVER, RECTIFIERCOVER, RECTIFIER
-
490119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66D3-14495-00-00 COLLARCOLLAR
-
790119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890480-22M15-00 GROMMETGROMMET
-
96S5-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1090105-06903-00 BOLT WASHER BASEDBOLT WASHER BASED
-
11LFR-6A000-00-00 PLUG, SPARK (NGK LFR6A)PLUG, SPARK (NGK LFR6A)
-
1290465-13M18-00 CLAMPCLAMP
-
1361A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1492990-10600-00 WASHER, PLATEWASHER, PLATE
-
156CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1697095-06016-00 BOLTBOLT
-
1792995-06600-00 WASHERWASHER
-
1860E-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1991380-06016-00 BOLTBOLT
-
2068V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
216S5-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
226CS-8273J-00-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2393210-32172-00 O-RINGO-RING
-
2490119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590464-20008-00 CLAMPCLAMP
-
266AA-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2790464-31001-00 CLAMPCLAMP
-
2890464-31002-00 CLAMPCLAMP
-
2990480-20132-00 GROMMETGROMMET
