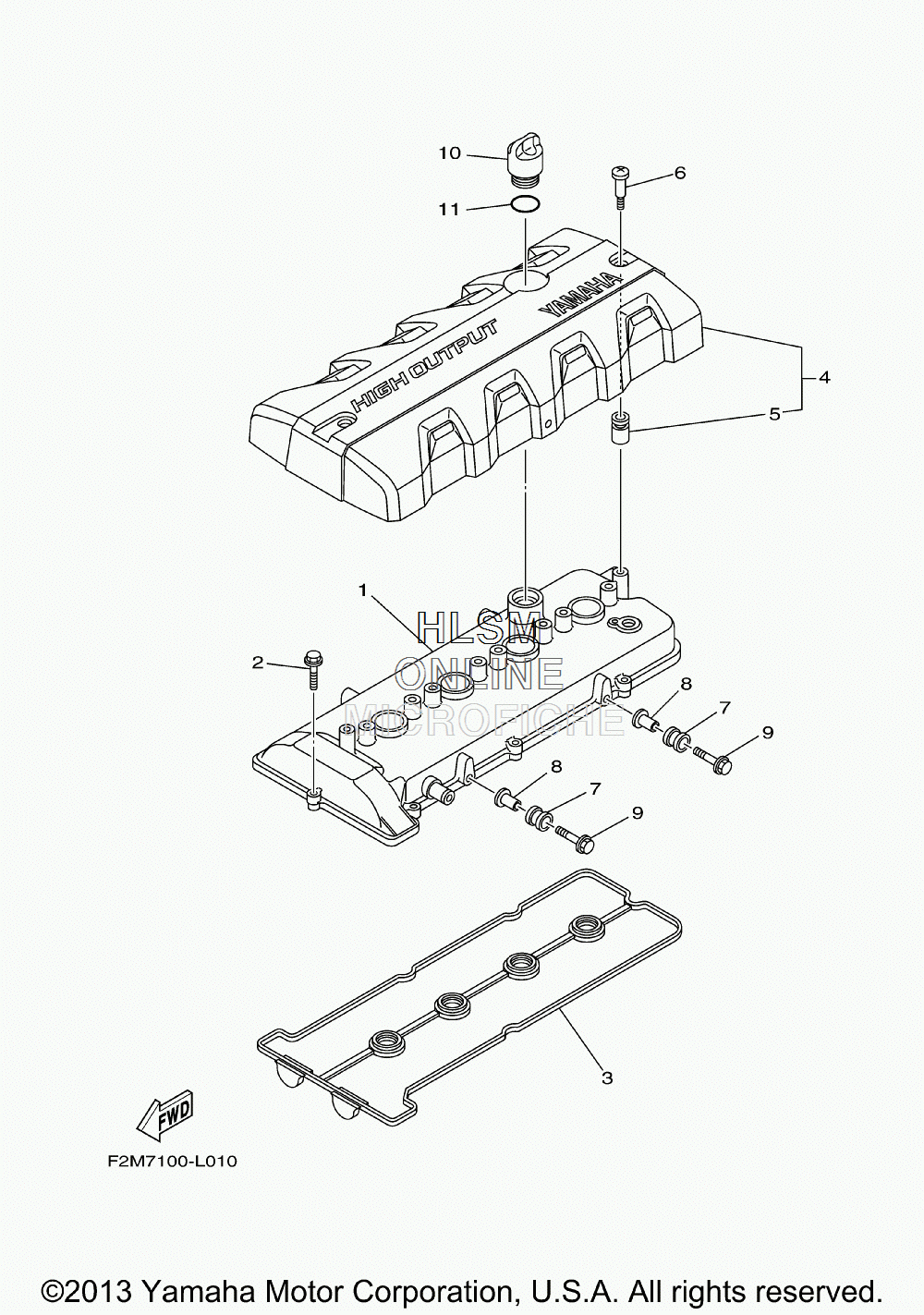

CYLINDER HEAD COVER ASSY. для Yamaha WAVERUNNER VXR [VX1800AM] - 2013 года выпуска
-
№АртикулНазвание
-
16BH-11191-20-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
290105-06028-00 BOLT, FLANGEBOLT, FLANGE
-
36BH-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
46BH-E110M-00-00 COVER ASSY 1COVER ASSY 1
-
56S5-E1328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
66S5-E118E-00-00 BOLT, COVER MOUNTINGBOLT, COVER MOUNTING
-
761N-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
890387-06119-00 COLLARCOLLAR
-
995824-06025-00 BOLT, FLANGEBOLT, FLANGE
-
106S5-15363-00-00 PLUG, OILPLUG, OIL
-
1193210-24M79-00 O-RINGO-RING
