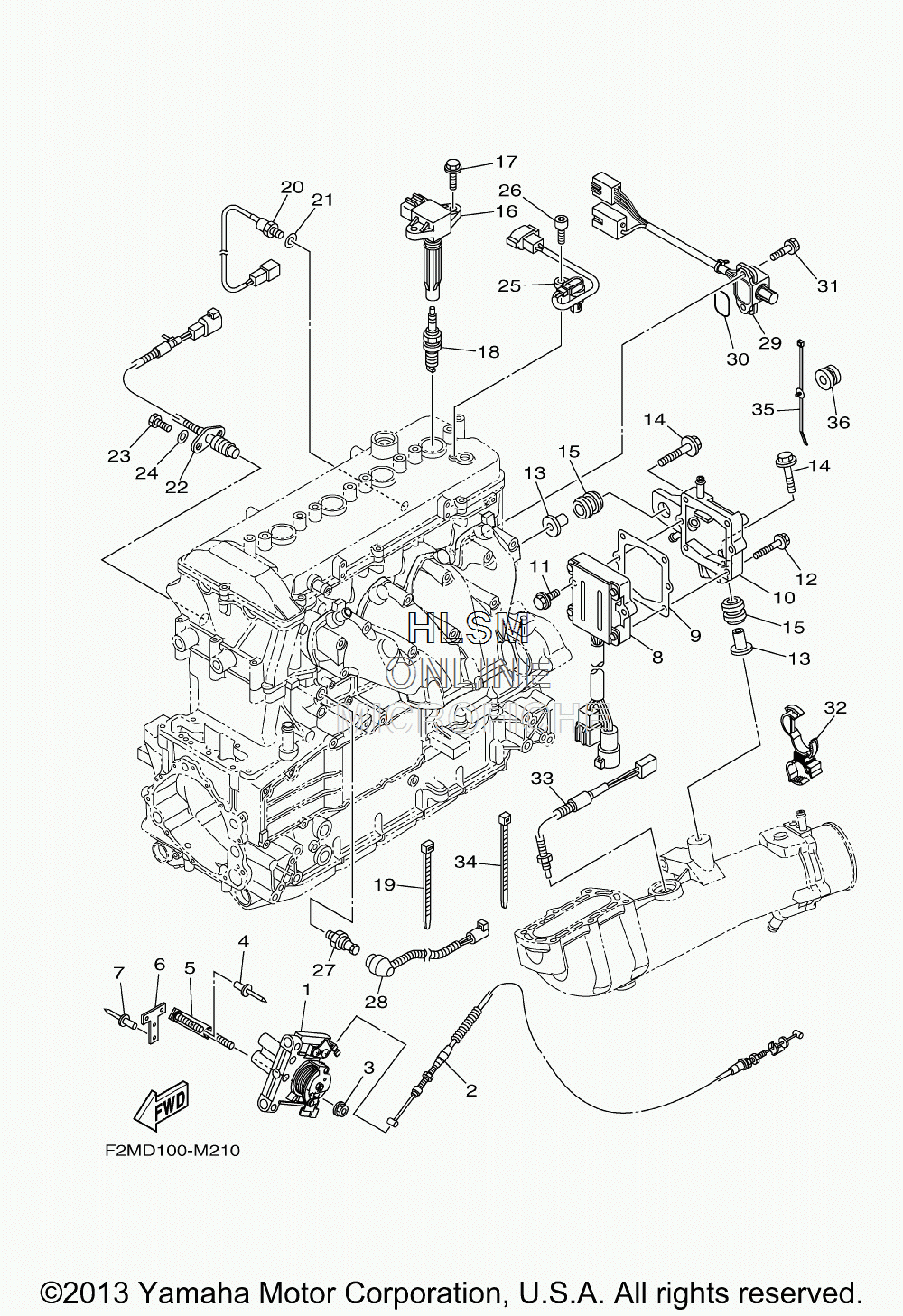

ELECTRICAL 2 для Yamaha WAVERUNNER VXR [VX1800AM] - 2013 года выпуска
-
№АртикулНазвание
-
16D3-14305-21-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
26BU-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
395780-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
490267-489U1-00 RIVET, BLINDRIVET, BLIND
-
5F2N-U7254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
6F2P-U8376-00-00 PLATEPLATE
-
790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
86S5-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
96S5-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
106S5-81972-01-94 COVER, RECTIFIERCOVER, RECTIFIER
-
1190119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
136D3-14495-00-00 COLLARCOLLAR
-
1490119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590480-22M15-00 GROMMETGROMMET
-
166S5-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1790105-06903-00 BOLT WASHER BASEDBOLT WASHER BASED
-
18LFR-6A000-00-00 PLUG, SPARK (NGK LFR6A)PLUG, SPARK (NGK LFR6A)
-
1990465-13M18-00 CLAMPCLAMP
-
2061A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
2192990-10600-00 WASHER, PLATEWASHER, PLATE
-
226CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
2397095-06016-00 BOLTBOLT
-
2492995-06600-00 WASHERWASHER
-
2560E-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2691380-06016-00 BOLTBOLT
-
2768V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
286S5-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
296CS-8273J-00-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
3093210-32172-00 O-RINGO-RING
-
3190119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290464-20008-00 CLAMPCLAMP
-
336AA-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
3490464-31001-00 CLAMPCLAMP
-
3590464-31002-00 CLAMPCLAMP
-
3690480-20132-00 GROMMETGROMMET
