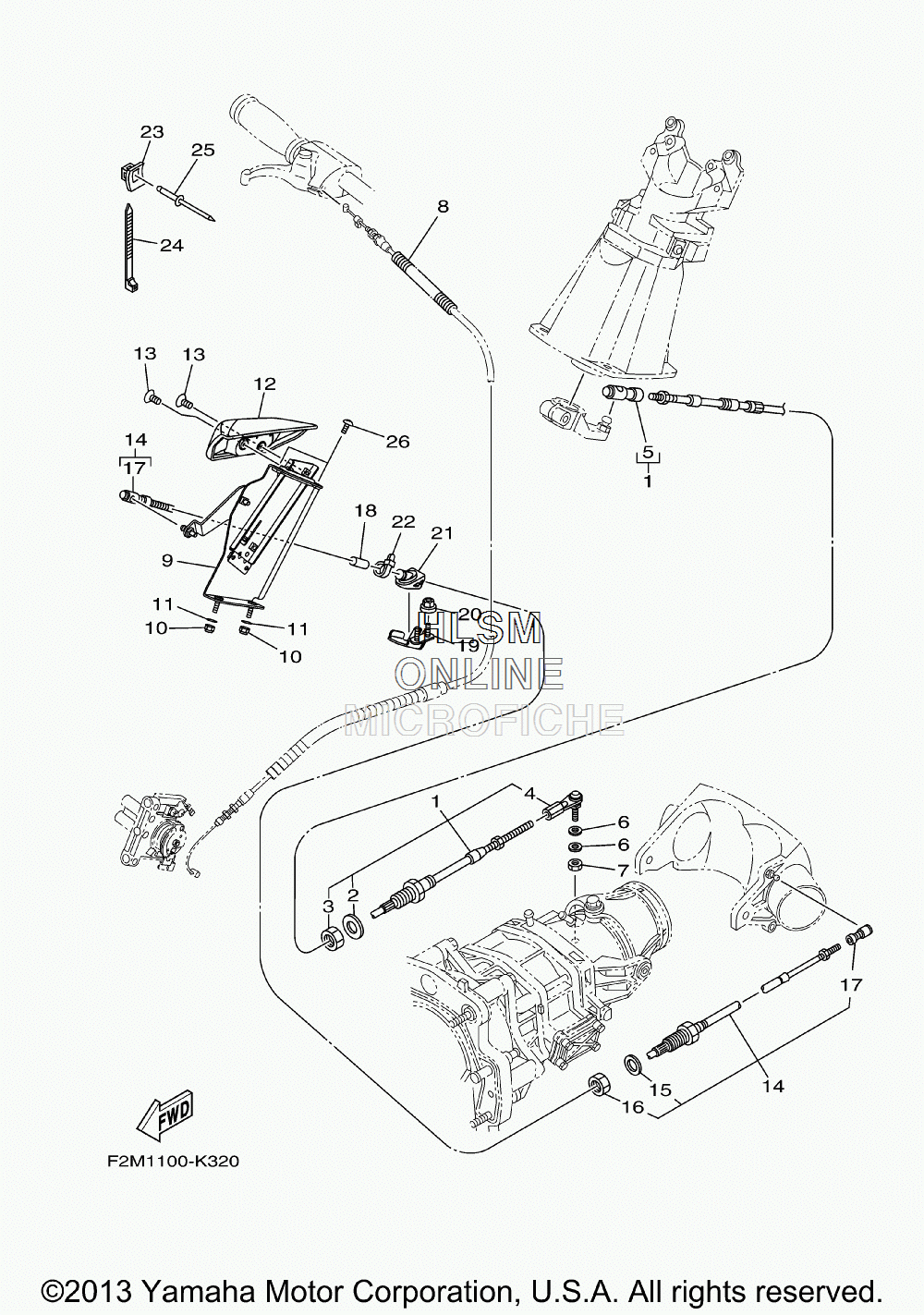

CONTROL CABLES для Yamaha VXR - 2014 года выпуска
-
№АртикулНазвание
-
1F2N-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
2F1B-61438-00-00 ...PACKING C...PACKING C
-
3F1B-6151S-00-00 ...NUT...NUT
-
4F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
5F2N-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
690201-06906-00 WASHER, PLATEWASHER, PLATE
-
79538R-06700-00 NUTNUT
-
890447-06803-00 TUBETUBE
-
9F2N-U134A-00-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
109572R-06300-00 NUT, NYLONNUT, NYLON
-
119299R-06200-00 WASHERWASHER
-
12F2N-U2714-01-00 GRIPGRIP
-
1390151-06815-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
14F2N-U149C-00-00 CABLE,REVERSECABLE,REVERSE
-
15F2S-U1438-00-00 ...PACKING C...PACKING C
-
16F2S-U151S-00-00 ...NUT...NUT
-
17F0V-U1461-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
18F1W-U146G-00-00 PACKING, CABLEPACKING, CABLE
-
19F2N-U1467-00-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
20F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
21F2N-U146G-00-00 PACKING, CABLEPACKING, CABLE
-
2290465-11829-00 CLAMPCLAMP
-
23F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2490464-32801-00 CLAMPCLAMP
-
2590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
26F2N-67823-00-00 SCREWSCREW
