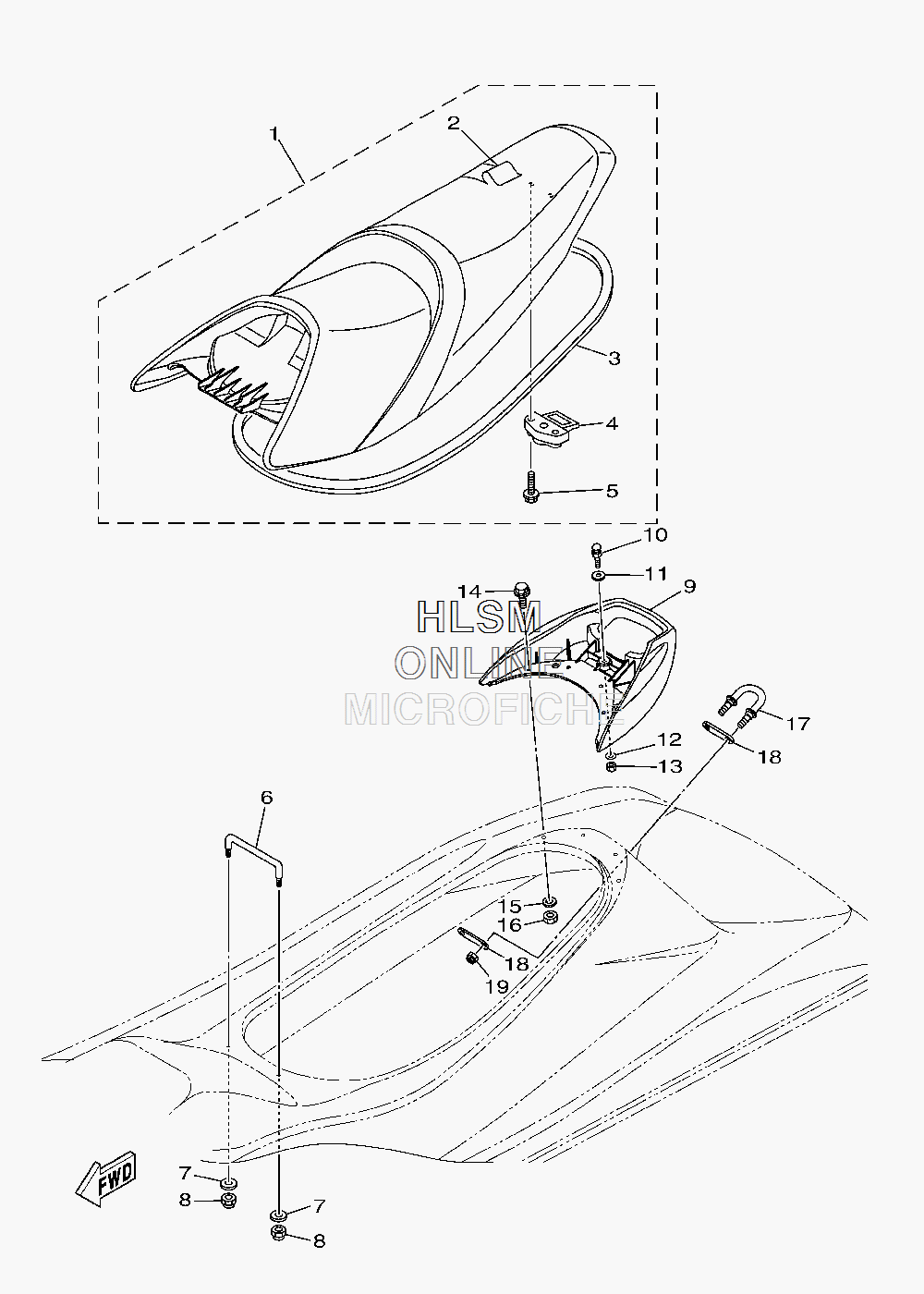

SEAT W/ UNDER LOCKER для Yamaha VXR - 2014 года выпуска
-
№АртикулНазвание
-
1F2M-U371A-10-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F2M-U371B-10-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F2N-U2664-00-00 ...PACKING...PACKING
-
4F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F0X-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
89572R-08300-00 NUT, FLANGENUT, FLANGE
-
9F2N-U271B-10-00 GRIP, HANDGRIP, HAND
-
10GH1-U3774-00-00 PINPIN
-
1190201-109U6-00 WASHER, PLATEWASHER, PLATE
-
129299R-10200-00 WASHERWASHER
-
139572R-10300-00 NUT, NYLONNUT, NYLON
-
1490119-089U2-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
159299R-08200-00 WASHERWASHER
-
169572R-08300-00 NUT, FLANGENUT, FLANGE
-
17F2N-U1628-02-00 STERN EYESTERN EYE
-
18GP7-U4953-10-00 PLATE APLATE A
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
