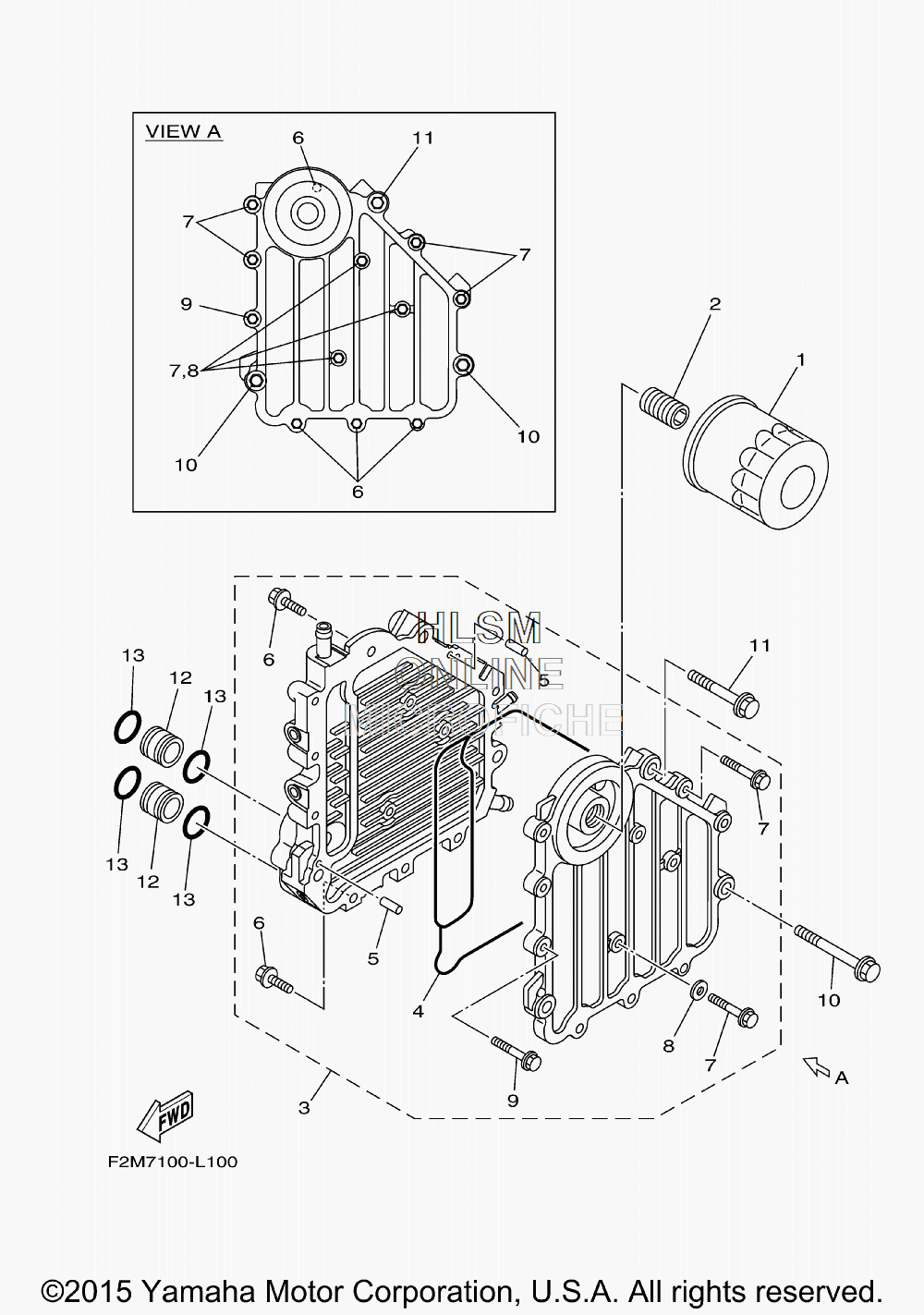

OIL COOLER для Yamaha FX CRUISER HO - 2015 года выпуска`
-
№АртикулНазвание
-
169J-13440-03-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
26S5-12858-00-00 BOLT, UNIONBOLT, UNION
-
36BH-13470-21-00 OIL COOLER ASSYOIL COOLER ASSY
-
46BH-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
593604-10M03-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-06184-00 ...BOLT, FLANGE...BOLT, FLANGE
-
790105-06185-00 ...BOLT, FLANGE...BOLT, FLANGE
-
890430-06232-00 ...GASKET...GASKET
-
990105-08054-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1090105-08169-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-08170-00 BOLT, FLANGEBOLT, FLANGE
-
1260E-13446-00-00 CONNECTORCONNECTOR
-
1393210-18322-00 O-RINGO-RING
