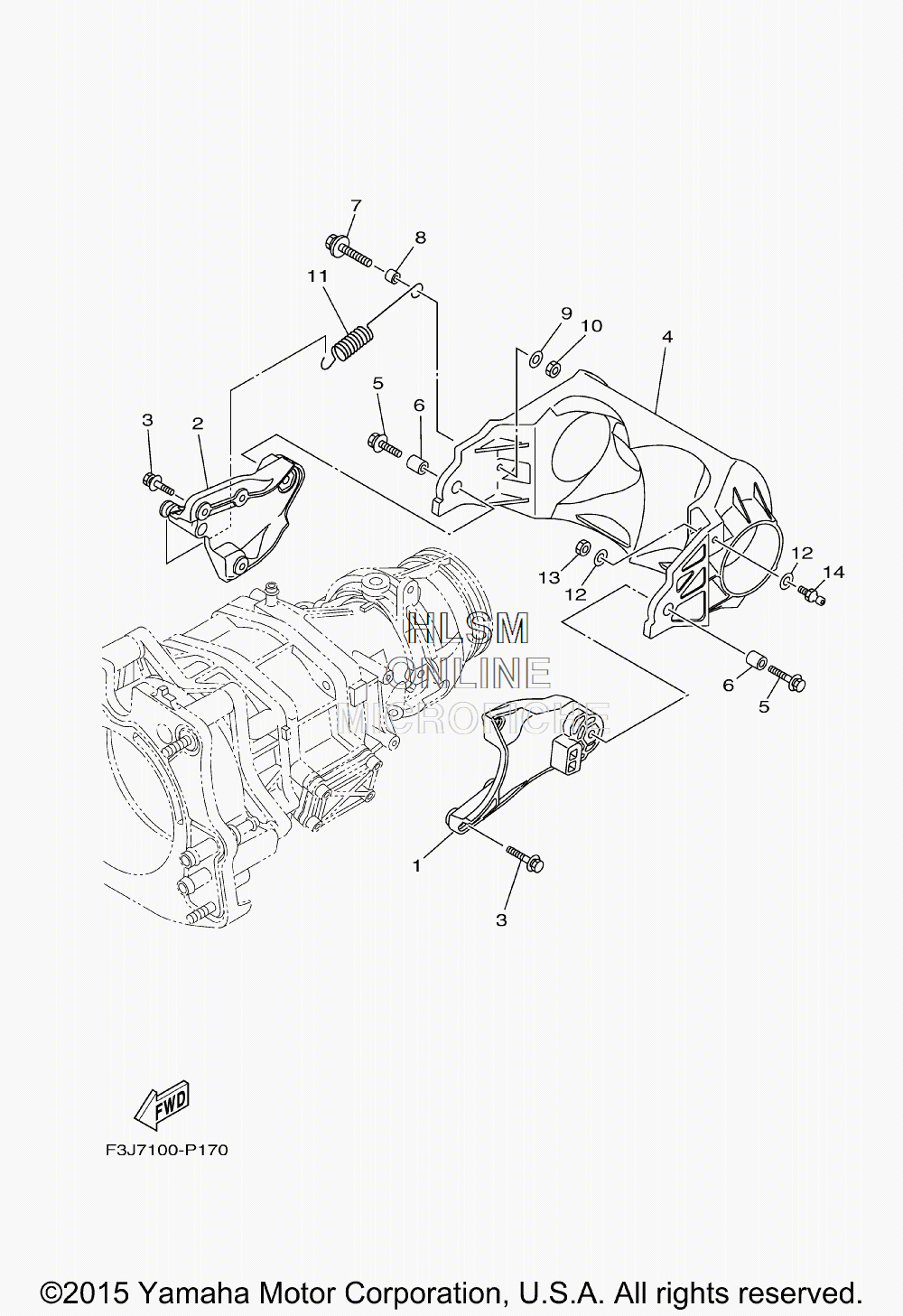

REVERSE GATE для Yamaha FX CRUISER HO - 2015 года выпуска
-
№АртикулНазвание
-
16ET-R1341-00-00 BRACKET 1BRACKET 1
-
26ET-R1342-00-00 BRACKET 2BRACKET 2
-
390119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46ET-R1314-01-00 GATE, REVERSEGATE, REVERSE
-
590119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690387-08M30-00 COLLARCOLLAR
-
790119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890387-06M30-00 COLLARCOLLAR
-
990201-06801-00 WASHER, PLATEWASHER, PLATE
-
109538R-06600-00 NUTNUT
-
116S5-52358-00-00 SPRING, RETAINERSPRING, RETAINER
-
1290201-06801-00 WASHER, PLATEWASHER, PLATE
-
139538R-06600-00 NUTNUT
-
14EU0-U1461-03-00 STUD, JOINT BALLSTUD, JOINT BALL
