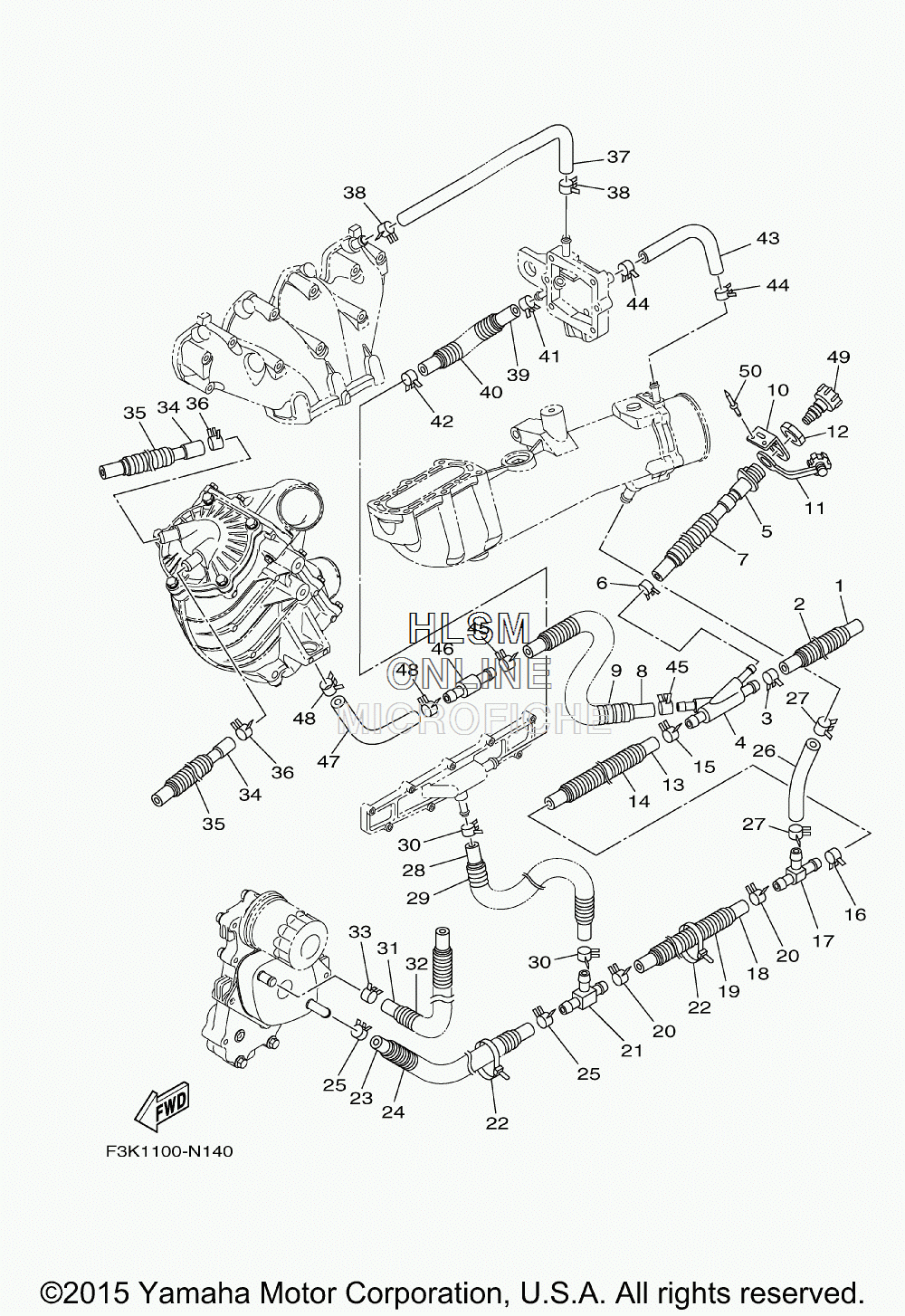

EXHAUST - HOSES для Yamaha FZS [GX1800AR] - 2016 года выпуска
-
№АртикулНазвание
-
190445-21813-00 HOSE (L285)HOSE (L285)
-
290447-22801-00 TUBE (L200)TUBE (L200)
-
390467-200A3-00 CLIPCLIP
-
46ET-12581-10-00 JOINT, HOSE 1JOINT, HOSE 1
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A5-00 CLIPCLIP
-
790447-19801-00 TUBE (L485)TUBE (L485)
-
890445-21807-00 HOSE (L970)HOSE (L970)
-
990447-22802-00 TUBE (L850)TUBE (L850)
-
1060E-12443-00-00 STAYSTAY
-
11682-84385-01-00 CAP,1CAP,1
-
12EU0-61652-00-00 NUTNUT
-
136S5-1243E-01-00 HOSE 2HOSE 2
-
1490447-22011-00 TUBE (L170)TUBE (L170)
-
1590467-200A3-00 CLIPCLIP
-
1690467-200A3-00 CLIPCLIP
-
176BH-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1890445-18017-00 HOSE (L220)HOSE (L220)
-
1990447-19004-00 HOSE, WITH SPRING (L=130)HOSE, WITH SPRING (L=130)
-
2090467-160A0-00 CLIPCLIP
-
216ET-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
2290464-35132-00 CLAMPCLAMP
-
2390445-18017-00 HOSE (L220)HOSE (L220)
-
2490447-19004-00 HOSE, WITH SPRING (L=130)HOSE, WITH SPRING (L=130)
-
2590467-160A0-00 CLIPCLIP
-
266S5-12589-01-00 HOSE 6HOSE 6
-
2790467-200A3-00 CLIPCLIP
-
286S5-1244H-00-00 HOSE 5HOSE 5
-
2990447-19011-00 TUBE (L150)TUBE (L150)
-
3090467-150A1-00 CLIPCLIP
-
316S5-12588-00-00 HOSE 5HOSE 5
-
3290447-19006-00 HOSE, WITH SPRING (L=630)HOSE, WITH SPRING (L=630)
-
3390467-160A0-00 CLIPCLIP
-
346S5-12552-00-00 HOSE 8HOSE 8
-
3590446-24M89-00 HOSE (L420)HOSE (L420)
-
3690467-170A4-00 CLIPCLIP
-
376BH-12577-00-00 HOSE 2HOSE 2
-
3890467-160A0-00 CLIPCLIP
-
396S5-12579-00-00 HOSE 4HOSE 4
-
4090447-19011-00 TUBE (L150)TUBE (L150)
-
4190467-160A0-00 CLIPCLIP
-
4290467-170A5-00 CLIPCLIP
-
4390445-16013-00 HOSE (L220)HOSE (L220)
-
4490467-160A0-00 CLIPCLIP
-
4590467-200A3-00 CLIPCLIP
-
466S5-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
476S5-12576-01-00 HOSE 1HOSE 1
-
4890467-200A3-00 CLIPCLIP
-
4967X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
5090267-489U1-00 RIVET,BLINDRIVET,BLIND
