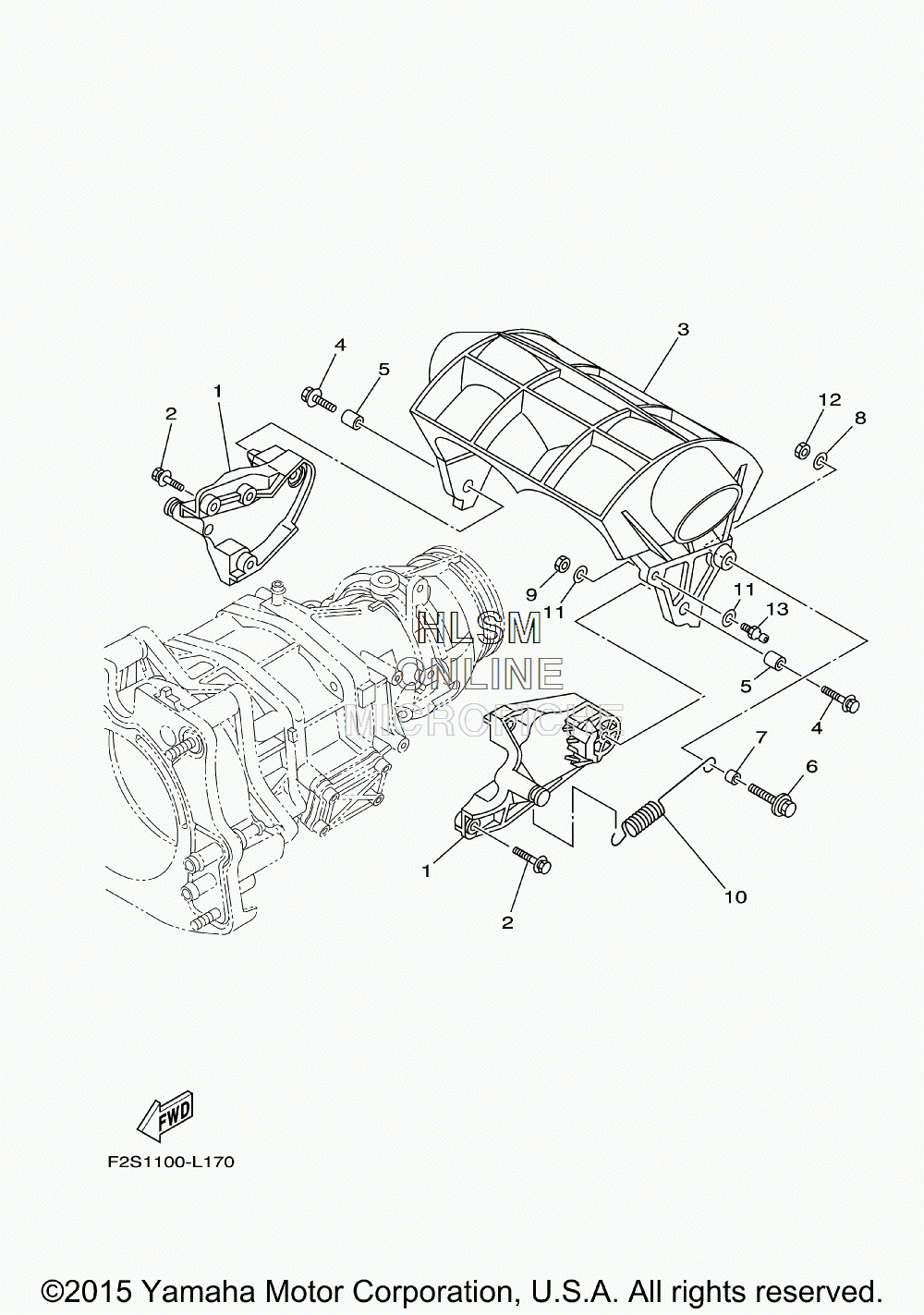

REVERSE GATE для Yamaha FZS [GX1800AR] - 2016 года выпуска
-
№АртикулНазвание
-
16CS-R1341-00-00 BRACKET 1BRACKET 1
-
290119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36S5-R1314-02-00 GATE, REVERSEGATE, REVERSE
-
490119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590387-08M30-00 COLLARCOLLAR
-
690119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790387-06M30-00 COLLARCOLLAR
-
890201-06801-00 WASHER, PLATEWASHER, PLATE
-
99538R-06600-00 NUTNUT
-
106S5-52358-00-00 SPRING, RETAINERSPRING, RETAINER
-
1190201-06801-00 WASHER, PLATEWASHER, PLATE
-
129538R-06600-00 NUTNUT
-
13EU0-U1461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
