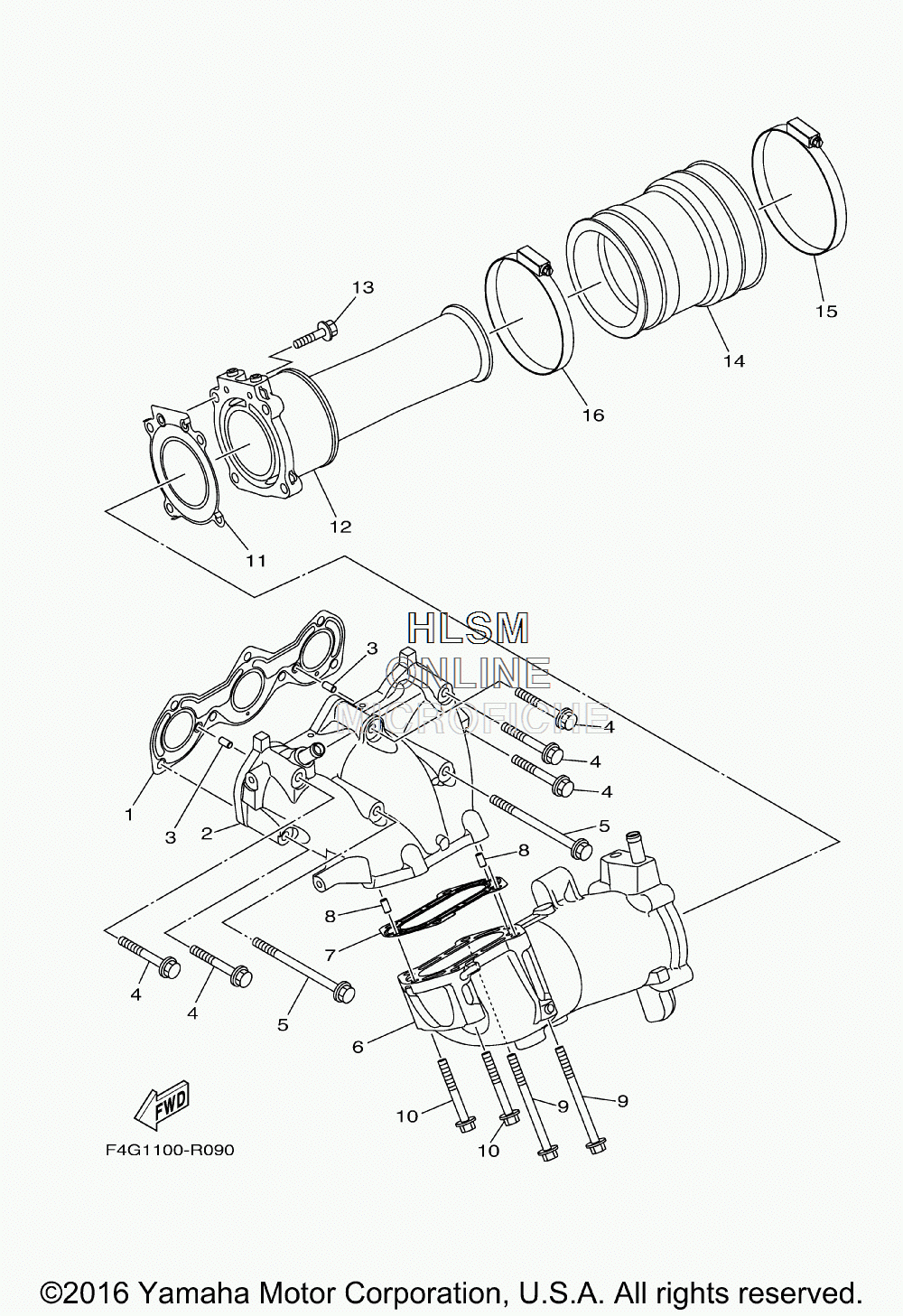

EXHAUST SYSTEM для Yamaha V1 SPORT [VX1050DR] - 2016 года выпуска
-
№АртикулНазвание
-
16EY-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
26EY-14711-00-00 MUFFLER 1MUFFLER 1
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
490119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66EY-14721-00-00 MUFFLER 2MUFFLER 2
-
76EY-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
893606-12019-00 PIN, DOWELPIN, DOWEL
-
990119-08029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08093-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
116EY-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
126EY-14784-00-00 PIPE, TAILPIPE, TAIL
-
1395024-08030-00 BOLT,FLG,(SMALL HEAD)BOLT,FLG,(SMALL HEAD)
-
146S5-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
1590450-99016-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1690450-99015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
