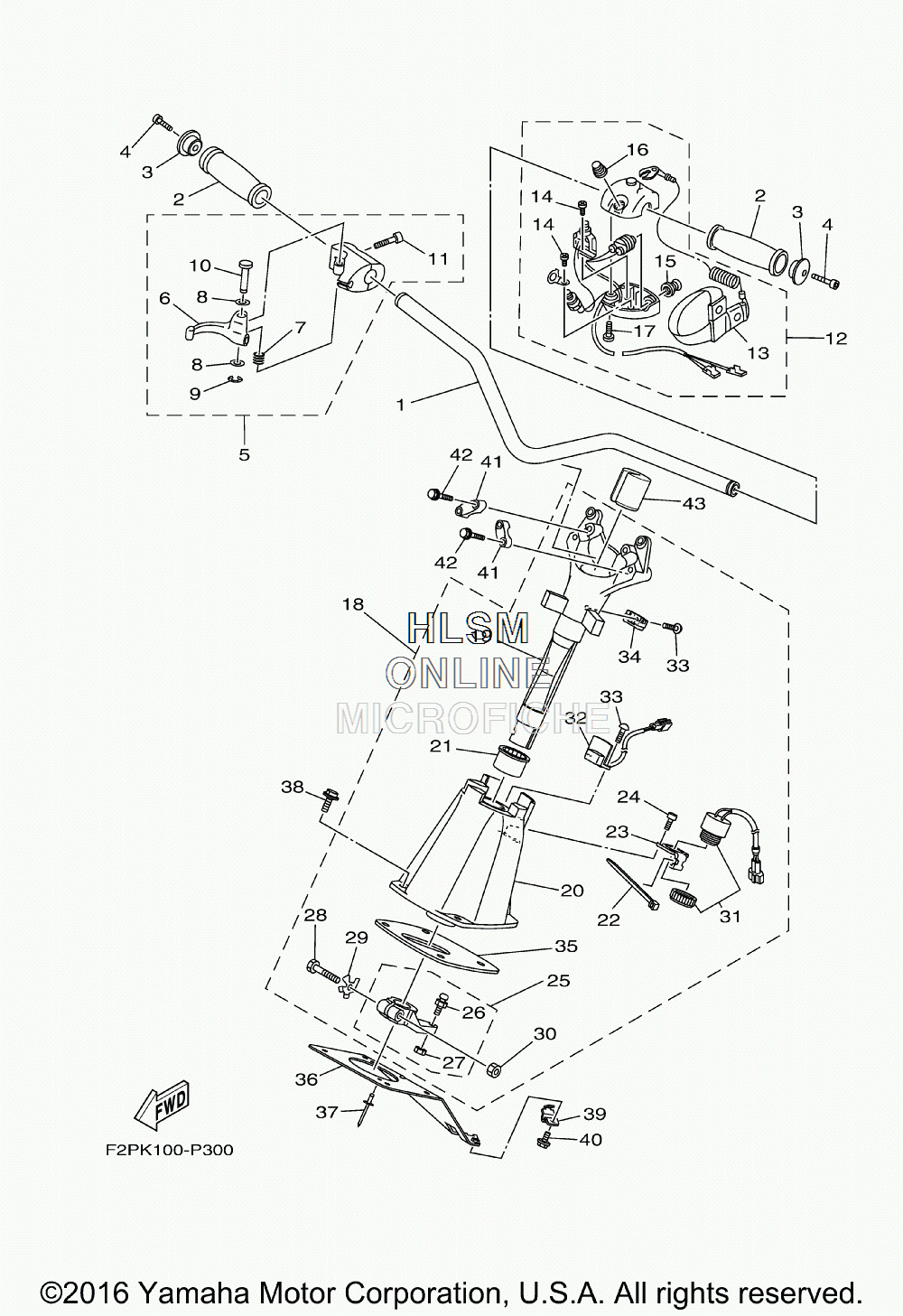

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha V1 SPORT [VX1050DR] - 2016 года выпуска
-
№АртикулНазвание
-
1F2N-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
11F1X-6725F-01-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
12FK7-68310-07-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F2X-61400-10-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F2X-6152D-00-00 ...SHAFT...SHAFT
-
20F2X-6152M-00-00 ...HOUSING ASSY...HOUSING ASSY
-
21F1K-6134M-00-00 ...BUSH...BUSH
-
22703-82591-00-00 ...BAND...BAND
-
23F2P-6146H-00-00 ...SPACER, BRKT....SPACER, BRKT.
-
24F1B-613C1-00-00 ...SCREW...SCREW
-
25F1K-6153R-00-00 ...ARM ASSY....ARM ASSY.
-
26EU0-61461-02-00 ......STUD, JOINT BALL......STUD, JOINT BALL
-
2795720-06300-00 ......NUT, SELF-LOCKING......NUT, SELF-LOCKING
-
28F1K-61355-00-00 ...BOLT...BOLT
-
29F1K-6142B-00-00 ...PLATE, RETAINING...PLATE, RETAINING
-
3095720-08300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
31F1S-68341-00-00 ...BUZZER...BUZZER
-
32F2X-6838B-00-00 ...SENSOR, MAGNET...SENSOR, MAGNET
-
33F2X-613C1-00-00 ...SCREW...SCREW
-
34F2X-6838C-00-00 ...MAGNET...MAGNET
-
35F1K-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
36F1K-U1467-01-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
3790267-489U2-00 RIVET, BLINDRIVET, BLIND
-
3890119-08836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
39F1K-U1468-03-00 STOPPER, CABLESTOPPER, CABLE
-
4090119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41EU0-23814-31-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4290119-08827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F1K-U1949-00-00 PLUGPLUG
