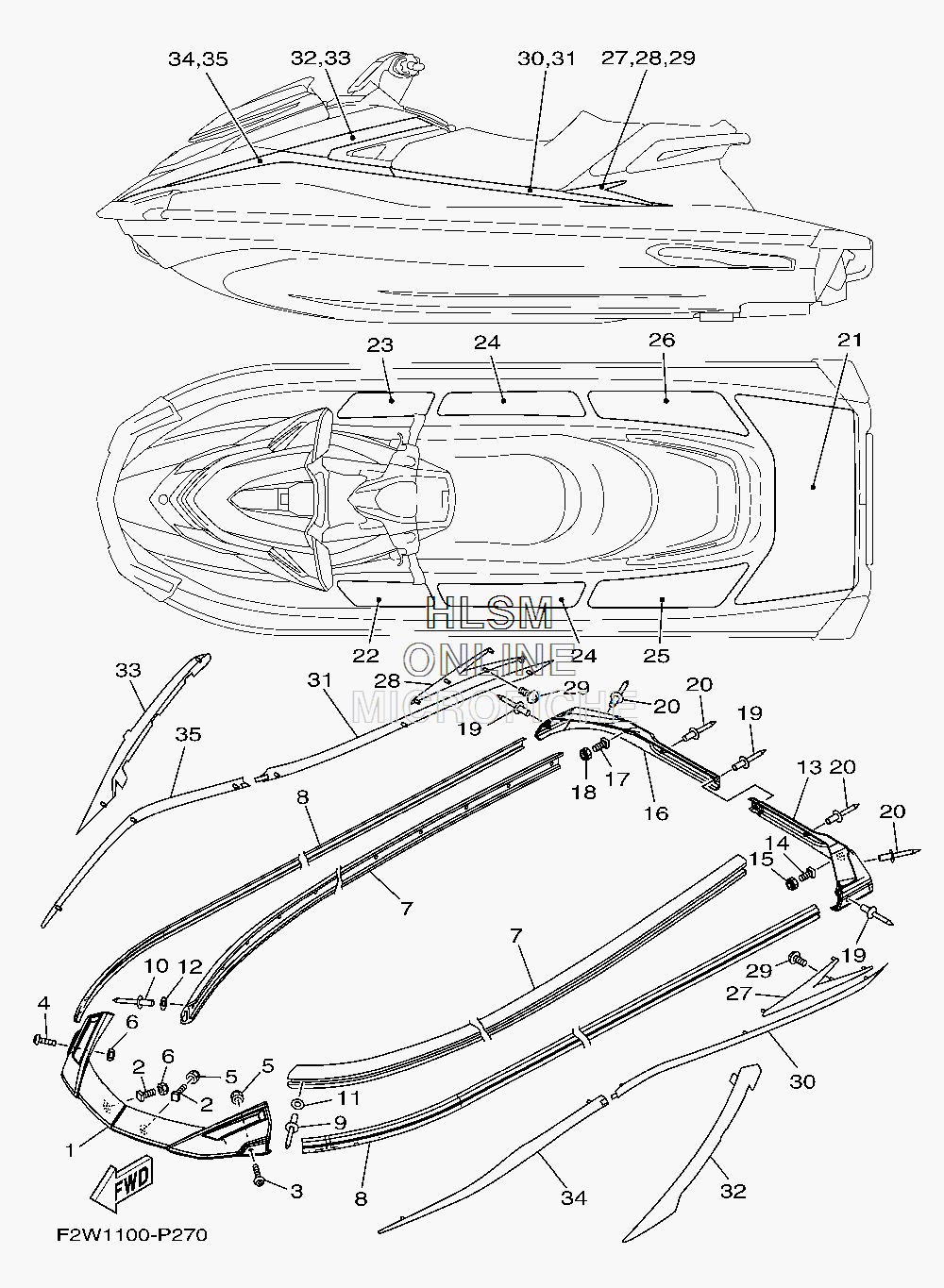

HULL - GUNWALE - MAT для Yamaha VXR [VX1800AR] - 2016 года выпуска
-
№АртикулНазвание
-
1F2X-U2511-10-00 GUNWALE, BOW (BLACK)GUNWALE, BOW (BLACK)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
490111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
5F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
6F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
7F2X-U2512-10-00 GUNWALE, SIDEGUNWALE, SIDE
-
8F2X-U2519-40-00 INNER,GUNWALE (RED FOR WHITE)INNER,GUNWALE (RED FOR WHITE)
-
8F2X-U2519-50-00 INNER,GUNWALE (YELLOW FOR GRAY)INNER,GUNWALE (YELLOW FOR GRAY)
-
990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U8-00 RIVET, BLINDRIVET, BLIND
-
119299R-05200-00 WASHERWASHER
-
129299R-05200-00 WASHERWASHER
-
13F2X-U251D-10-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2X-U251E-10-00 GUNWALE, STERN 2GUNWALE, STERN 2
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
2090267-48825-00 RIVET, BLINDRIVET, BLIND
-
21F2X-U3581-01-00 MAT, UPPER (GREY & BLACK)MAT, UPPER (GREY & BLACK)
-
22F2X-U351H-00-00 MAT, STEP 1 (GREY & BLACK)MAT, STEP 1 (GREY & BLACK)
-
23F2X-U351J-00-00 MAT, STEP 2 (GREY & BLACK)MAT, STEP 2 (GREY & BLACK)
-
24F2X-U351K-00-00 MAT, STEP 3 (GREY & BLACK)MAT, STEP 3 (GREY & BLACK)
-
25F2X-U351M-00-00 MAT, STEP 4 (GREY & BLACK)MAT, STEP 4 (GREY & BLACK)
-
26F2X-U351N-00-00 MAT, STEP 5 (GREY & BLACK)MAT, STEP 5 (GREY & BLACK)
-
27F2W-U517W-00-00 ORNAMENT, LHORNAMENT, LH
-
28F2W-U517X-00-00 ORNAMENT, RHORNAMENT, RH
-
29F2W-U13C1-01-00 SCREWSCREW
-
30F2X-U89A8-31-00 ORNAMENT, STERN LH FOR GRAYORNAMENT, STERN LH FOR GRAY
-
30F2X-U89A8-41-00 ORNAMENT, STERN LH FOR WHITEORNAMENT, STERN LH FOR WHITE
-
31F2X-U89A9-31-00 ORNAMENT, STERN RH FOR GRAYORNAMENT, STERN RH FOR GRAY
-
31F2X-U89A9-41-00 ORNAMENT, STERN RH FOR WHITEORNAMENT, STERN RH FOR WHITE
-
32F2X-U89AA-31-00 ORNAMENT, MIDDLE LH FOR GRAYORNAMENT, MIDDLE LH FOR GRAY
-
32F2X-U89AA-41-00 ORNAMENT, MIDDLE LH FOR WHITEORNAMENT, MIDDLE LH FOR WHITE
-
33F2X-U89AB-41-00 ORNAMENT, MIDDLE RH FOR WHITEORNAMENT, MIDDLE RH FOR WHITE
-
33F2X-U89AB-31-00 ORNAMENT, MIDDLE RH FOR GRAYORNAMENT, MIDDLE RH FOR GRAY
-
34F2X-U89AC-31-00 ORNAMENT, BOW LH FOR GRAYORNAMENT, BOW LH FOR GRAY
-
34F2X-U89AC-41-00 ORNAMENT, BOW LH FOR WHITEORNAMENT, BOW LH FOR WHITE
-
35F2X-U89AD-31-00 ORNAMENT, BOW RH FOR GRAYORNAMENT, BOW RH FOR GRAY
-
35F2X-U89AD-41-00 ORNAMENT, BOW RH FOR WHITEORNAMENT, BOW RH FOR WHITE
