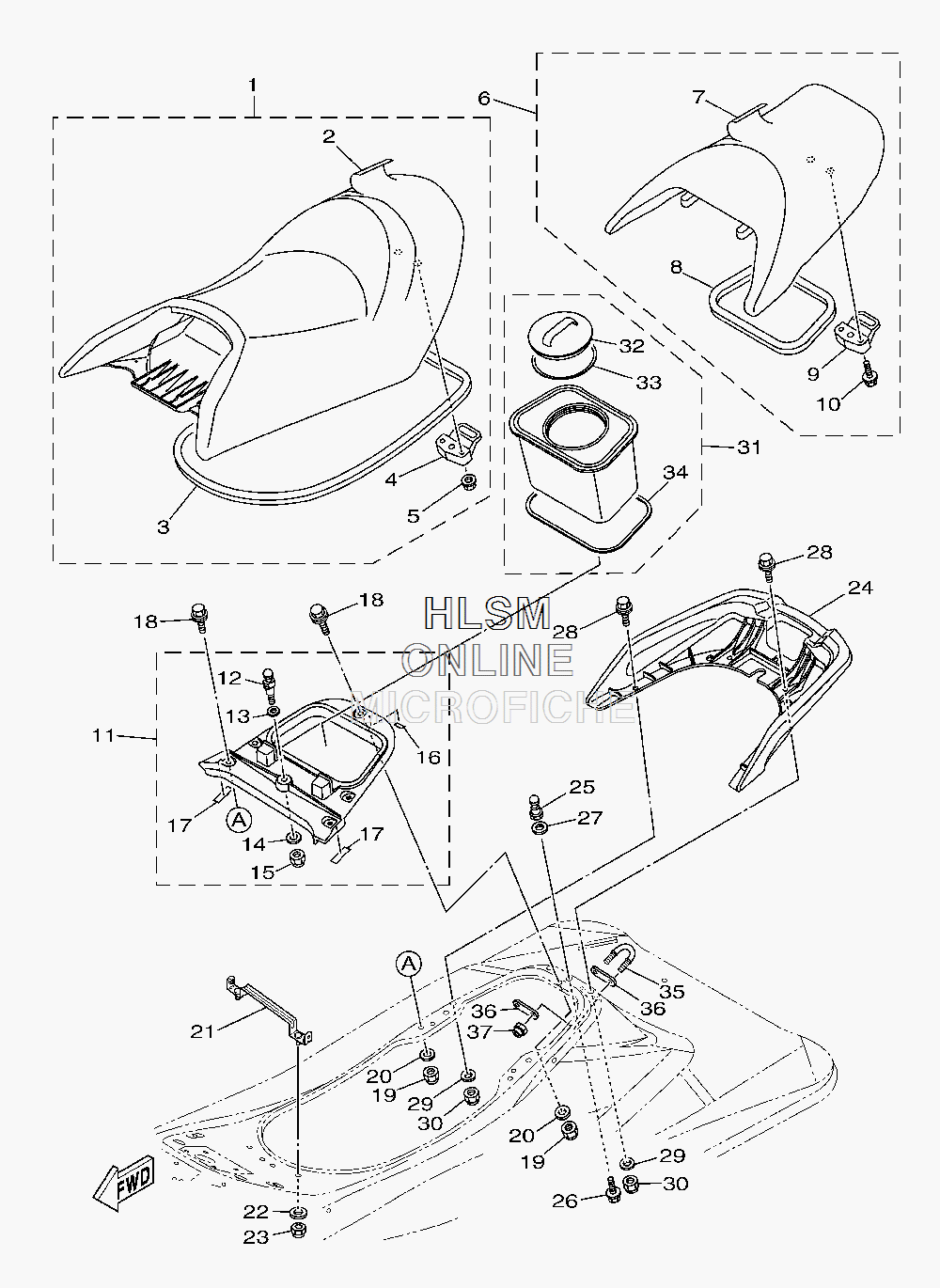

SEAT W/ UNDER LOCKER для Yamaha VXR [VX1800AR] - 2016 года выпуска
-
№АртикулНазвание
-
1F2W-U371A-10-00 DOUBLE SEAT ASSY FOR WHITEDOUBLE SEAT ASSY FOR WHITE
-
1F2W-U371A-00-00 DOUBLE SEAT ASSY FOR GRAYDOUBLE SEAT ASSY FOR GRAY
-
2F2W-U371B-10-00 ...COVER, SEAT 1 FOR WHITE...COVER, SEAT 1 FOR WHITE
-
2F2W-U371B-00-00 ...COVER, SEAT 1 FOR GRAY...COVER, SEAT 1 FOR GRAY
-
3F1W-U2664-01-00 ...PACKING...PACKING
-
4F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F2W-U372A-10-00 SINGLE SEAT ASSY FOR WHITESINGLE SEAT ASSY FOR WHITE
-
6F2W-U372A-00-00 SINGLE SEAT ASSY FOR GRAYSINGLE SEAT ASSY FOR GRAY
-
7F2W-U372B-10-00 ...COVER, SEAT FOR WHITE...COVER, SEAT FOR WHITE
-
7F2W-U372B-00-00 ...COVER, SEAT FOR GRAY...COVER, SEAT FOR GRAY
-
8F2C-U266D-01-00 ...PACKING 5...PACKING 5
-
9F1B-U3850-02-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F2S-U890L-04-00 DECK BEAM ASSYDECK BEAM ASSY
-
12GH1-U3774-00-00 ...PIN...PIN
-
1390201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
149299R-10200-00 ...WASHER...WASHER
-
159572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
16F2S-U375E-00-00 ...PACKING 1...PACKING 1
-
17F2S-U8244-00-00 ...PACKING...PACKING
-
1890119-08828-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209299R-08200-00 WASHERWASHER
-
21F2X-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
2290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
239572R-08300-00 NUT, FLANGENUT, FLANGE
-
24F2X-U271B-10-00 GRIP, HANDGRIP, HAND
-
25F1K-U3774-00-00 PINPIN
-
2690119-10804-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
279299R-10200-00 WASHERWASHER
-
2890119-08828-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
299299R-08200-00 WASHERWASHER
-
309572R-08300-00 NUT, FLANGENUT, FLANGE
-
31F2X-U591A-00-00 CASE,ASSY 1CASE,ASSY 1
-
32F2C-U591C-00-00 ...CAP,CASE...CAP,CASE
-
33F2C-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
34F2C-U266E-00-00 ...PACKING,6...PACKING,6
-
35F2N-U1628-02-00 STERN EYESTERN EYE
-
36GP7-U4953-10-00 PLATE APLATE A
-
379572R-08300-00 NUT, FLANGENUT, FLANGE
