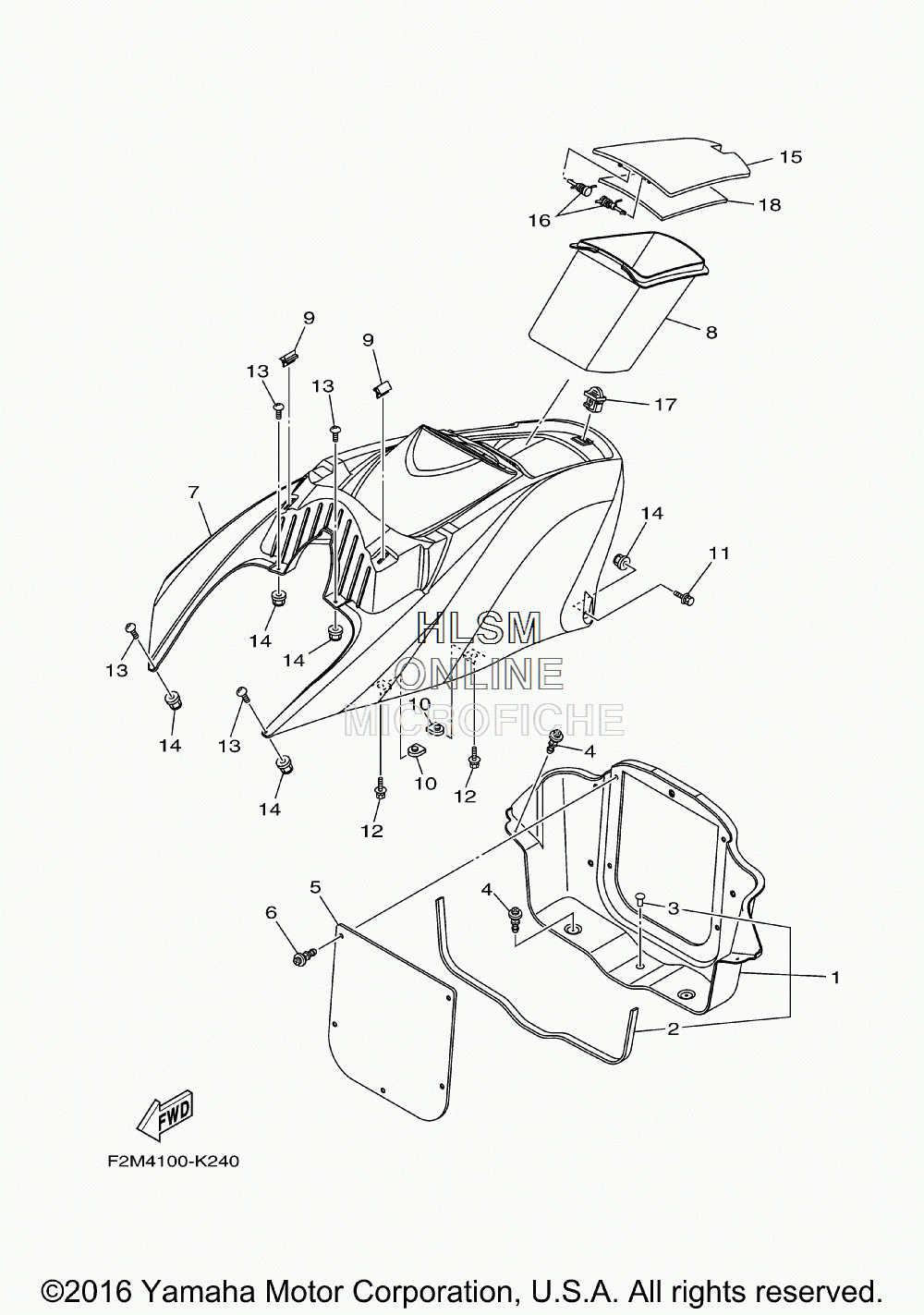

SIDE COVERS для Yamaha VXS [VX1800L] - 2016 года выпуска
-
№АртикулНазвание
-
1F2N-U475B-03-00 LOCKER,BOWLOCKER,BOW
-
2F2N-U266C-01-00 ...PACKING 4...PACKING 4
-
390605-502U1-00 ...PLUG, BLIND...PLUG, BLIND
-
490269-08801-00 RIVETRIVET
-
5F1W-U475F-01-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
690269-08801-00 RIVETRIVET
-
7F2N-U516N-00-P4 COVER, ENGINE HATCH (LNMP)COVER, ENGINE HATCH (LNMP)
-
8F2N-U516P-00-00 BOX GLOVEBOX GLOVE
-
9F1K-U266C-00-00 PACKING 4PACKING 4
-
1090183-06902-00 NUT, SPRINGNUT, SPRING
-
1190119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13F2N-67823-10-00 SCREWSCREW
-
14F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
15F2N-U517H-01-00 LID HATCHLID HATCH
-
16F0X-6517R-01-00 PIN, HINGEPIN, HINGE
-
17GU2-62875-01-00 LOCKLOCK
-
18F2N-U519D-00-00 PACKING CASEPACKING CASE
