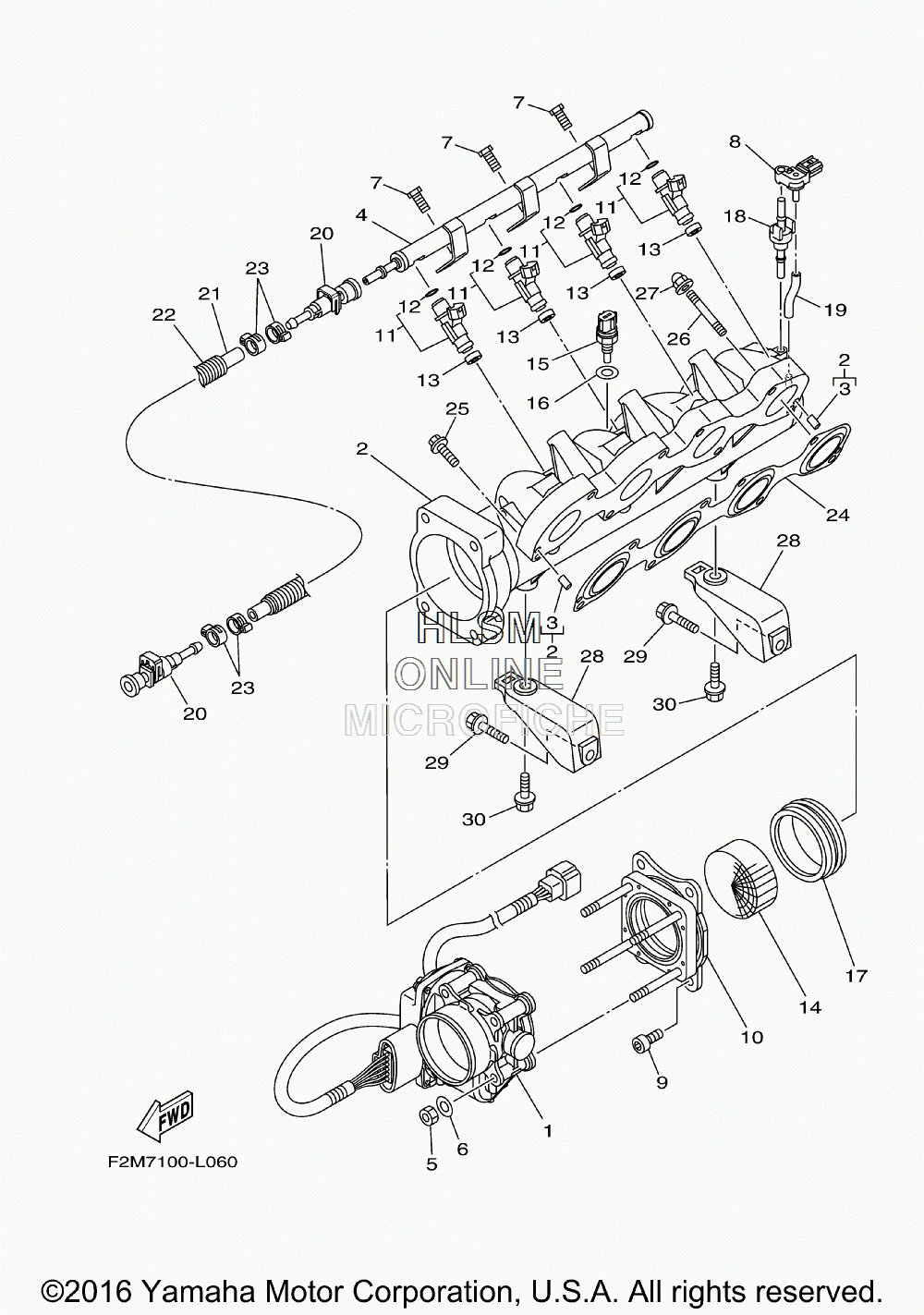

THROTTLE BODY ASSY. для Yamaha VXS [VX1800L] - 2016 года выпуска
-
№АртикулНазвание
-
16BH-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26BH-13641-01-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
393604-10011-00 ...PIN, DOWEL...PIN, DOWEL
-
46S5-12880-00-00 DELIVERY PIPE (E/N 6CN-1005701 - 6CN-1005800)DELIVERY PIPE (E/N 6CN-1005701 - 6CN-1005800)
-
46S5-12880-10-00 DELIVERY PIPE (E/N 6CN-1005801>)DELIVERY PIPE (E/N 6CN-1005801>)
-
56P2-13588-00-00 NUTNUT
-
66P2-13578-00-00 WASHERWASHER
-
763P-14446-00-00 BOLTBOLT
-
86BH-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
96S5-14496-00-00 BOLTBOLT
-
106BH-14360-00-00 THROTTLE DAMPER ASSYTHROTTLE DAMPER ASSY
-
116S5-13761-10-00 INJECTOR (E/N 6CN-1005801>)INJECTOR (E/N 6CN-1005801>)
-
116S5-13761-00-00 INJECTOR (E/N 6CN-1005701 - 6CN-1005800)INJECTOR (E/N 6CN-1005701 - 6CN-1005800)
-
1260E-14147-00-00 ...O-RING (E/N 6CN-1005701 - 6CN-1005800)...O-RING (E/N 6CN-1005701 - 6CN-1005800)
-
1268V-1416A-00-00 ...O-RING (E/N 6CN-1005801>)...O-RING (E/N 6CN-1005801>)
-
138FP-13556-10-00 GASKET, MANIFOLD (E/N 6CN-1005801>)GASKET, MANIFOLD (E/N 6CN-1005801>)
-
138FP-13556-00-00 RUBBER, INJECTOR (E/N 6CN-1005701 - 6CN-1005800)RUBBER, INJECTOR (E/N 6CN-1005701 - 6CN-1005800)
-
146BH-1444B-00-00 RIBBONRIBBON
-
1565L-85886-00-00 THERMOSENSORTHERMOSENSOR
-
166S5-14285-00-00 WASHERWASHER
-
176BH-14457-00-00 SEALSEAL
-
186BH-14445-00-00 GROMMETGROMMET
-
196BH-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
206S5-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
216CN-14294-00-00 HOSE (E/N 6CN-1005701 - 6CN-1005800)HOSE (E/N 6CN-1005701 - 6CN-1005800)
-
216CN-14294-10-00 HOSE (E/N 6CN-1005801>)HOSE (E/N 6CN-1005801>)
-
2290447-19020-00 TUBE (L610)TUBE (L610)
-
2390450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
246BH-13645-00-00 GASKET, MANIFOLD 1GASKET, MANIFOLD 1
-
2590119-08022-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690116-08032-00 BOLT, STUDBOLT, STUD
-
2790176-08080-00 NUT, CROWNNUT, CROWN
-
286S5-14413-00-94 STAYSTAY
-
2990119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-08099-00 BOLT, WITH WASHERBOLT, WITH WASHER
