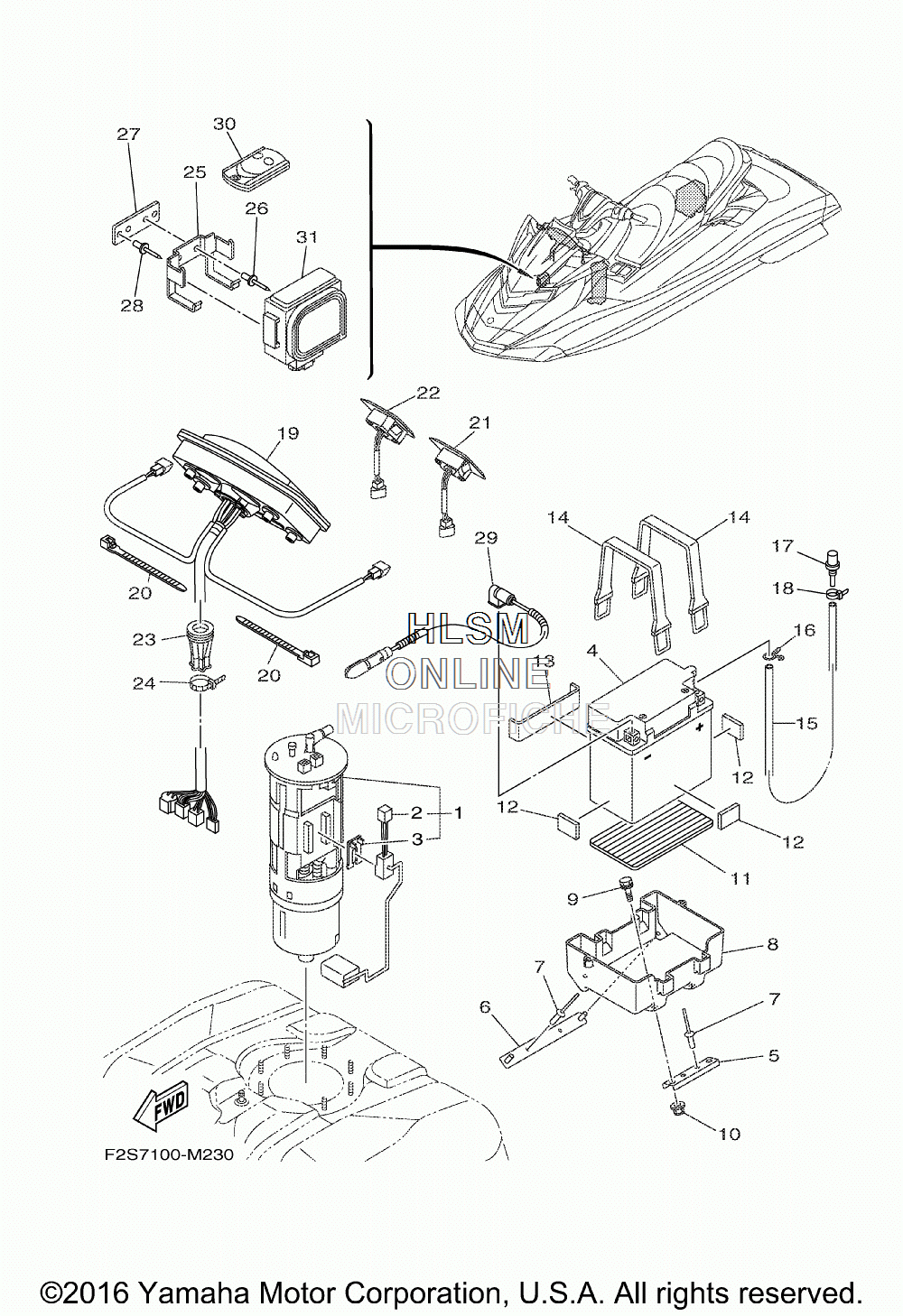

ELECTRICAL 3 для Yamaha WAVERUNNER FX CRUISER SVHO [FC1800AS] - 2017 года выпуска
-
№АртикулНазвание
-
16S5-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-U8217-H2-00 BATTERY (YB16CL-B)BATTERY (YB16CL-B)
-
5F2S-U8592-00-00 PLATE, BASE 2PLATE, BASE 2
-
6F2S-U8593-00-00 PLATE, BASE 3PLATE, BASE 3
-
790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
8F2S-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
990119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
11F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
12EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
13F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
14EU0-U821D-00-00 BAND,BATTERY 1BAND,BATTERY 1
-
15F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1690467-089U1-00 CLIPCLIP
-
17GJ3-6215F-00-00 NIPPLENIPPLE
-
1890465-11829-00 CLAMPCLAMP
-
19F3J-6820A-21-00 METER ASSYMETER ASSY
-
2090464-32801-00 CLAMPCLAMP
-
21F2S-68090-00-00 SWITCH ASSY.SWITCH ASSY.
-
22F2S-68090-10-00 SWITCH ASSY.SWITCH ASSY.
-
23F1X-U822E-00-00 GROMMETGROMMET
-
2490464-32801-00 CLAMPCLAMP
-
25F1W-U826C-00-00 BRACKETBRACKET
-
2690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
27F1W-U8376-00-00 PLATEPLATE
-
2890267-489U1-00 RIVET,BLINDRIVET,BLIND
-
296S5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
306B6-86261-00-00 XMTR. COMP.XMTR. COMP.
-
316B6-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
