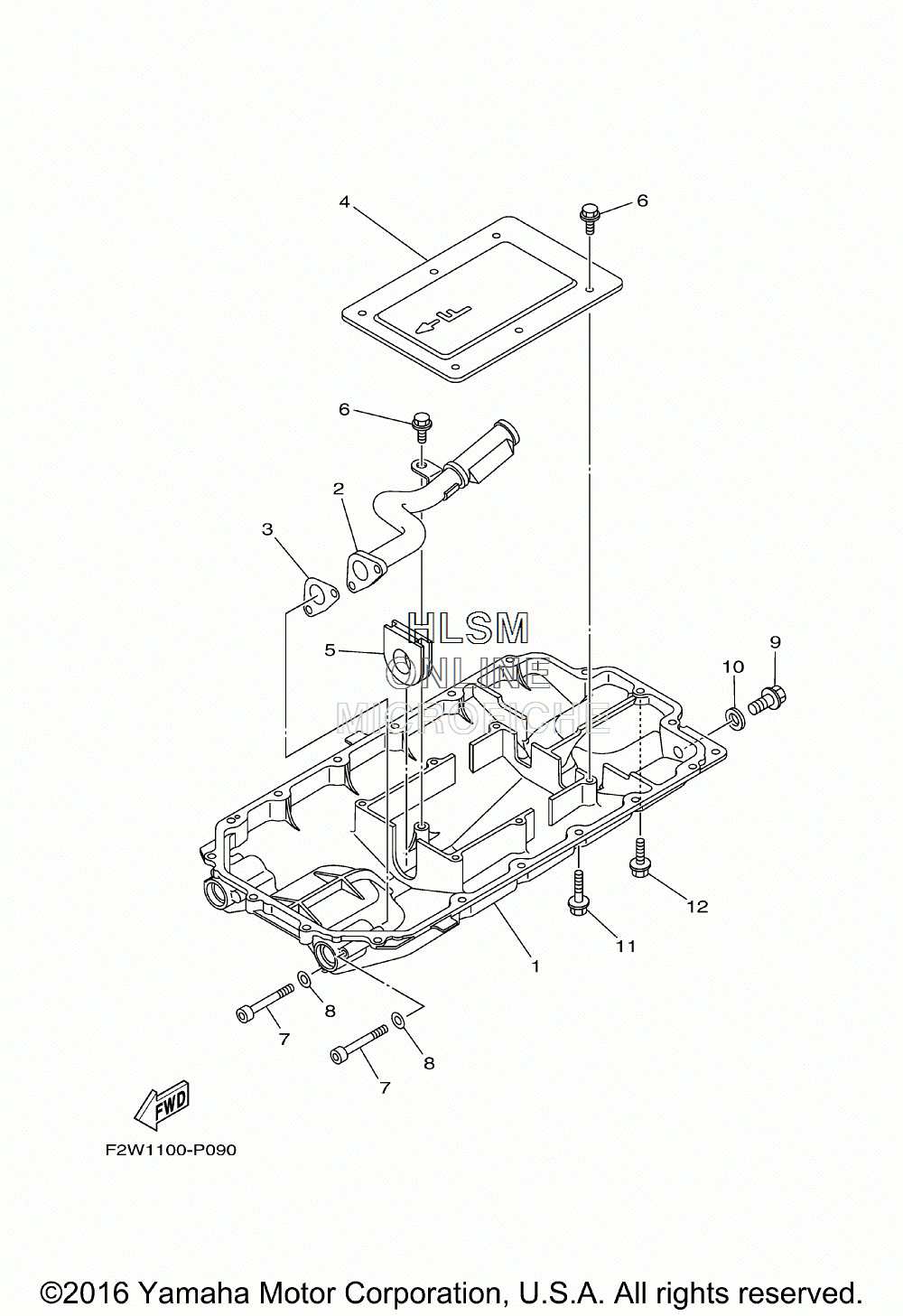

OIL PAN для Yamaha WAVERUNNER FX CRUISER SVHO [FC1800AS] - 2017 года выпуска
-
№АртикулНазвание
-
16S5-1310A-25-00 PAN, OILPAN, OIL
-
26S5-13405-11-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
36S5-13477-00-00 GASKETGASKET
-
46S5-13317-10-00 PLATE, BAFFLEPLATE, BAFFLE
-
56S5-15486-10-00 GROMMETGROMMET
-
695817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
791314-06060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890201-06028-00 WASHER, PLATEWASHER, PLATE
-
995814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-08209-00 GASKETGASKET
-
1195024-06035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
1295024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
